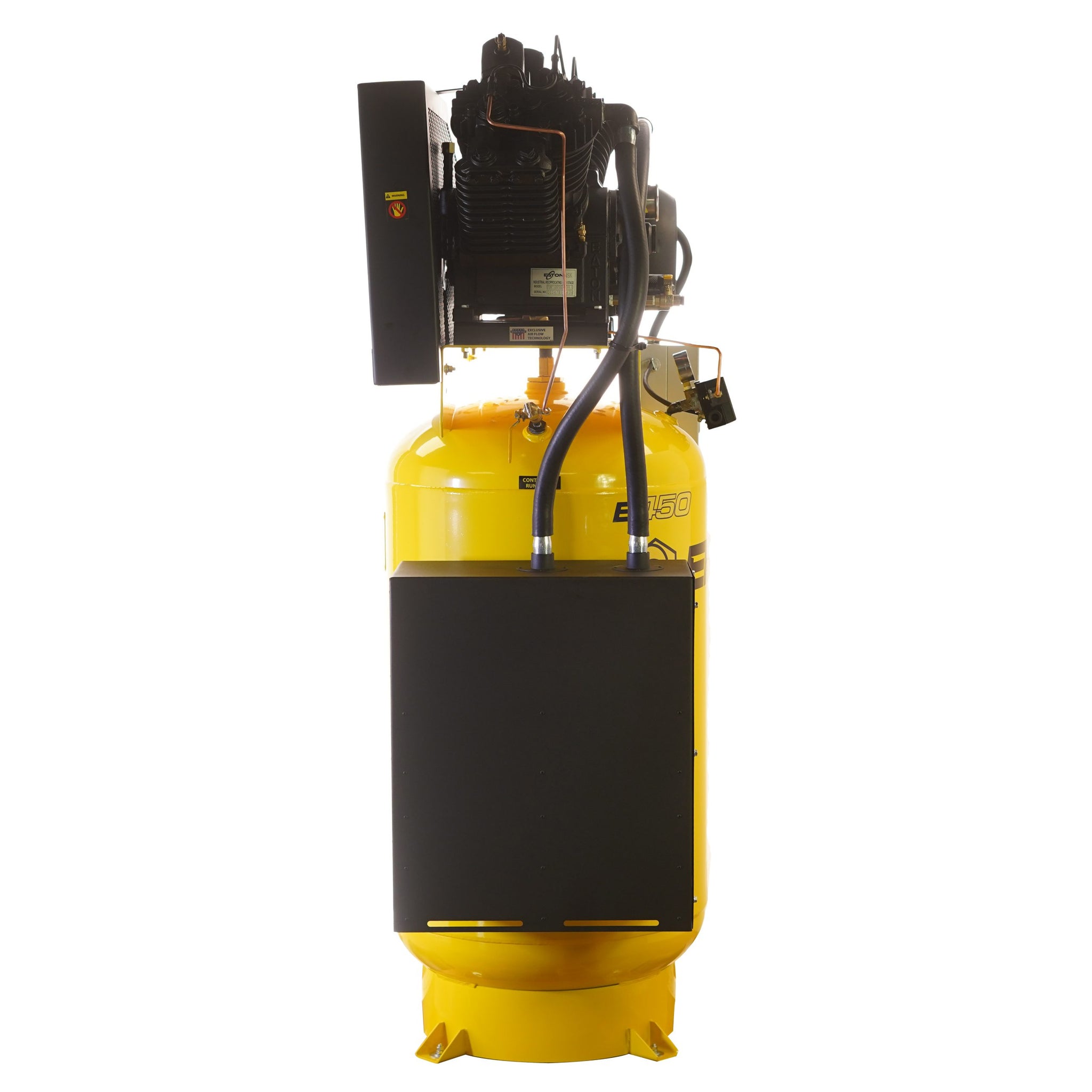

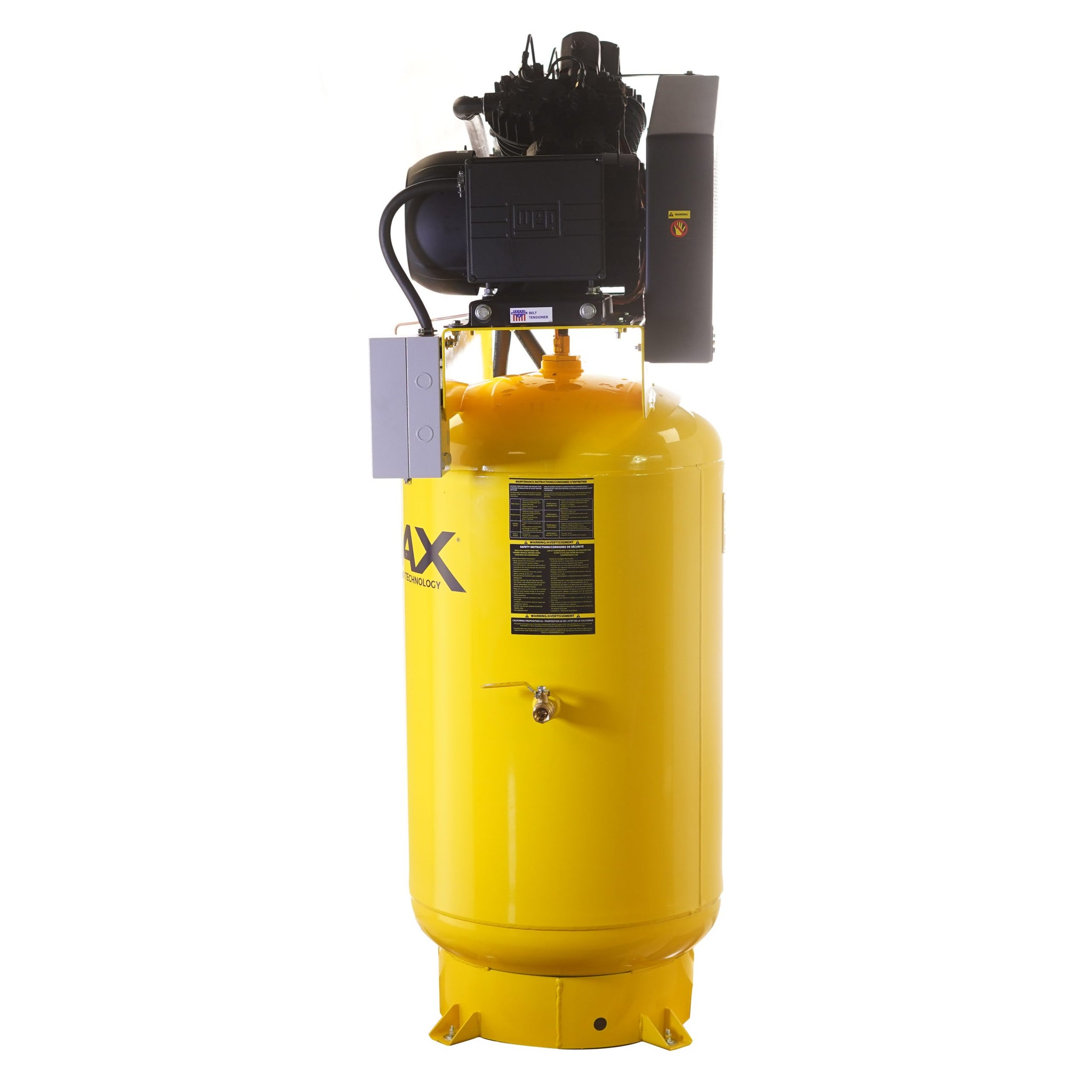

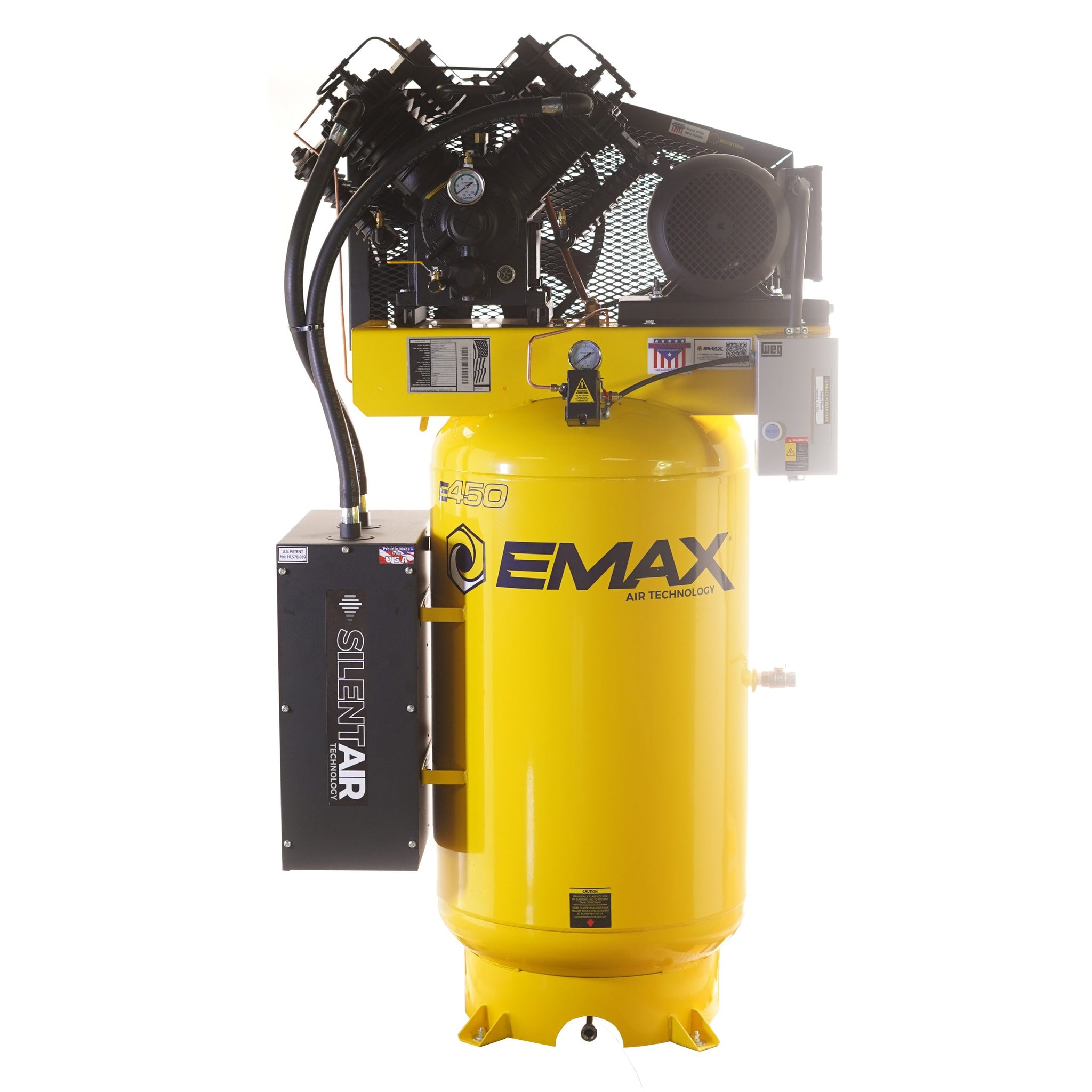

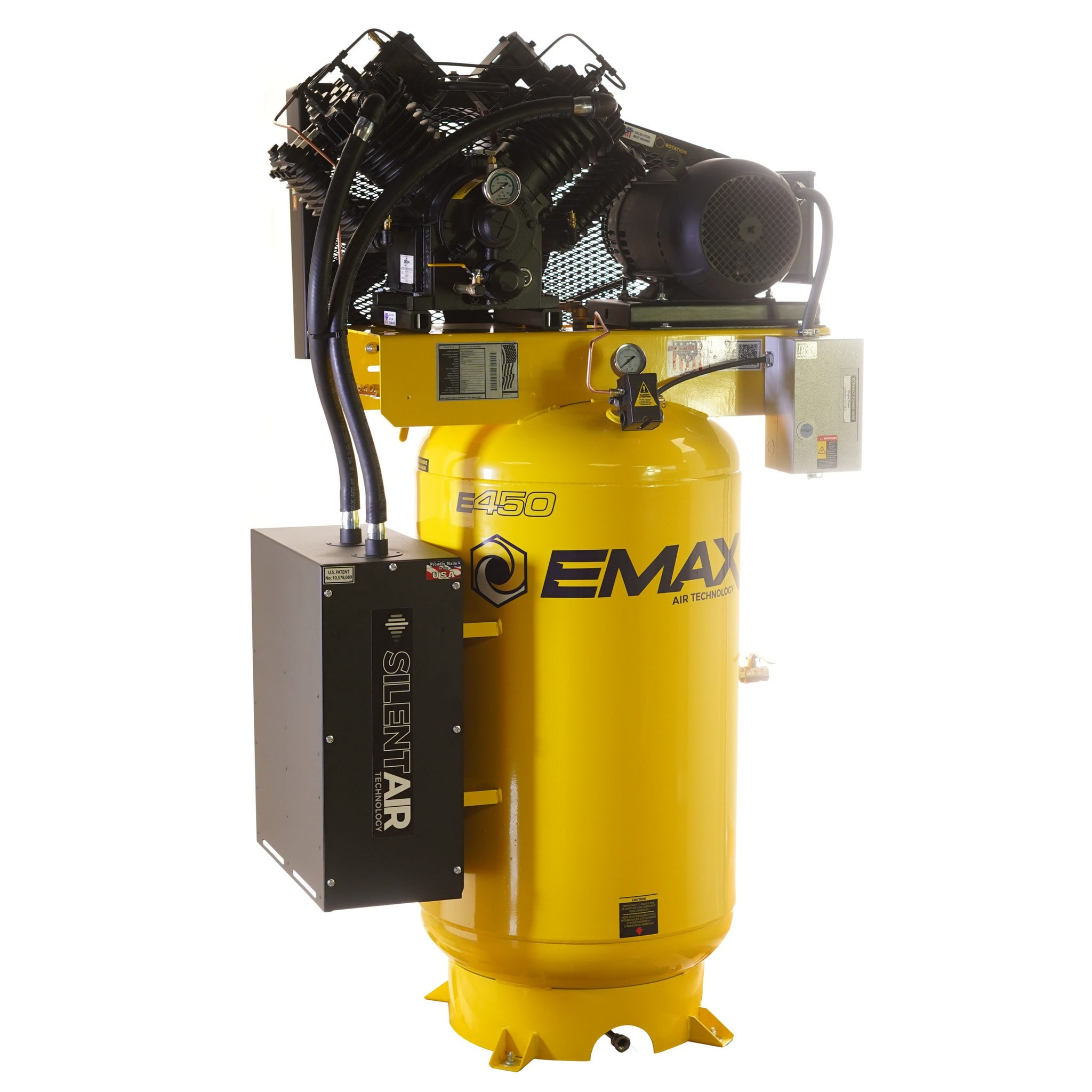

EMAX ESPR10V080V1 Silent Air Industrial 10HP Air Compressor – 38 CFM, 1-Phase 230V, 80-Gal Vertical, Pressure Lube Pump, Auto Drain & Aftercoolers

The EMAX Silent Air Industrial ESPR10V080V1 is a 10 HP, two-stage piston air compressor that delivers 38 CFM with a maximum pressure of 175 PSI. It pairs a pressure-lubricated, cast iron pump with an 80-gallon vertical tank and runs on 1-phase 230V power. This makes it a strong fit for industrial shops and facilities that need high-volume compressed air and quieter operation from single-phase service.

Silent Air™ Noise Suppression

• Up to 50% Quieter: The patented Silent Air™ silencer system achieves up to 50% quieter operation, with noise levels at or below conversational volume. Each 10 dBA drop equals a 50% reduction to the human ear.

• Intake Noise Control: The system targets intake noise, the loudest source of compressor sound. It uses noise-reducing baffle plates, high-capacity filter media, and up to 1000% more filtration than standard setups.

• Service-Friendly Design: Enclosed cabinet systems are costly and restrict service access. The Silent Air silencer is cost-effective, easy to service, and doesn't compromise accessibility.

Pressure Lubrication Pump

• Gear-Driven Oil Pump: An oil pump mounted to the rear of the crankshaft generates positive oil pressure. It delivers a continuous flow of oil to each bearing point, keeping bearings cool and reducing friction and internal wear.

• Rifle-Drilled Crankshaft & Rods: Oil travels through the crankshaft and connecting rods directly to bearings, piston pins, and other high-friction points.

• Spin-On Oil Filter: An automotive-style spin-on oil filter keeps oil clean and simplifies maintenance during oil changes. The pump uses a 2-quart oil capacity.

• Analog Oil Pressure Gauge: Operators can monitor oil pressure accurately for reliable performance and peace of mind.

• Long Pump Life: Estimated pump life is 70,000 hours. Pressure lubrication is especially beneficial in high-stress, continuous-duty environments.

100% Cast Iron, Two-Stage Pump Construction

• Cast Iron Major Components: The crankcase, cylinder heads, cylinders, connecting rods, crankshaft, and high-pressure piston are all cast iron. This provides more durability and rigidity than aluminum components.

• Two-Stage Pump: The pump is model APP4V1043TP. Its aluminum low-pressure pistons provide balance and efficiency, operating under low stress (~45 PSI). Its cast iron high-pressure pistons are designed to withstand heavy loads and prevent cylinder scoring.

• Rebuildable Connecting Rods: The CNC-machined solid cast iron rods have replaceable bearing inserts and wrist pins, so the assembly can be fully rebuilt rather than thrown away.

• Four-Ring Piston Design: Each piston has two oil control rings and two overlapping compression rings. This design maximizes sealing, prevents blow-by, reduces oil carryover, and extends ring life.

• Non-Oil-Absorbent Gaskets: High-quality gaskets minimize oil leakage and reduce maintenance requirements.

• Optional Head Unloaders: Head unloaders are available as an option for constant-run applications. They relieve the intake valve during operation to improve pump cooling and reduce wear.

Drive System & Electrical

• Heavy-Duty Cast Iron Flywheel: The 10 HP model uses a 20" flywheel with (2) B-style groove belts and 9 large cooling fins. The added mass reduces amp draw, and the cooling fins enhance pump cooling.

• Belt Drive Components: The compressor includes a belt tensioner and a pump riser. The pump runs at 730 RPM.

• ODP Electric Motor: The 10 HP open drip-proof motor runs at 1740 RPM on 230V, 1-phase power.

• Magnetic Starter: A magnetic starter is included.

• Electrical Requirements: The motor draws 52.9 FLA (including the 1.15 service factor). Locked rotor and peak starting amps are 270, and the recommended breaker is 60 amps.

Tank, Air Delivery & Maintenance

• 80-Gallon Vertical Tank: The vertical orientation saves floor space, and the tank has a 3/4" outlet.

• Automatic Tank Drain: The tank drains automatically.

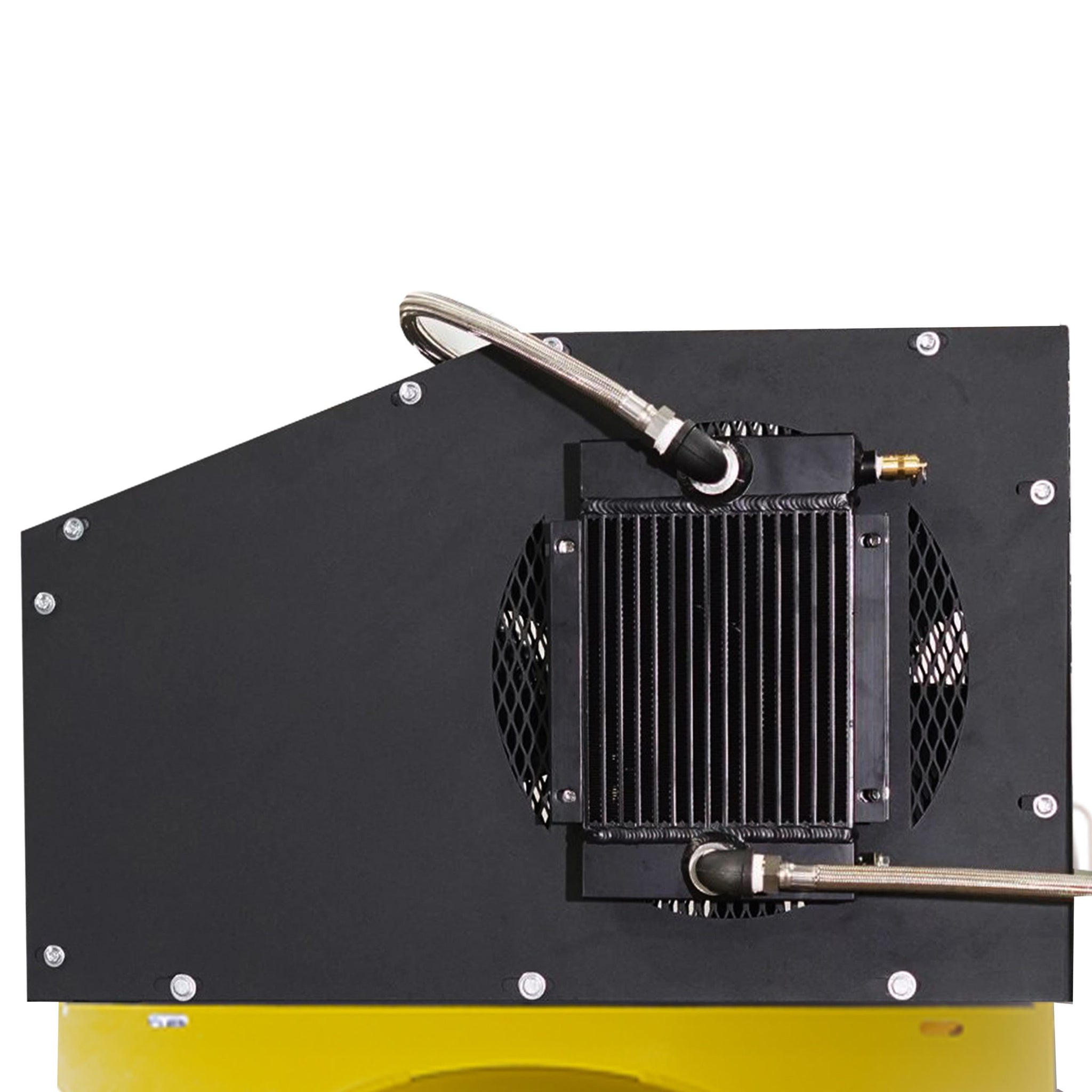

• Radiator-Style Aftercooler: An aftercooler radiator is included.

• Certifications: The compressor is ETL, ASME, and CRN certified.

• Service Kit: For routine maintenance, use EMAX service kit EFKIT008AWBS.

Not sure if the ESPR10V080V1 is the right size for your shop's air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 for help sizing the right EMAX compressor for your application.
