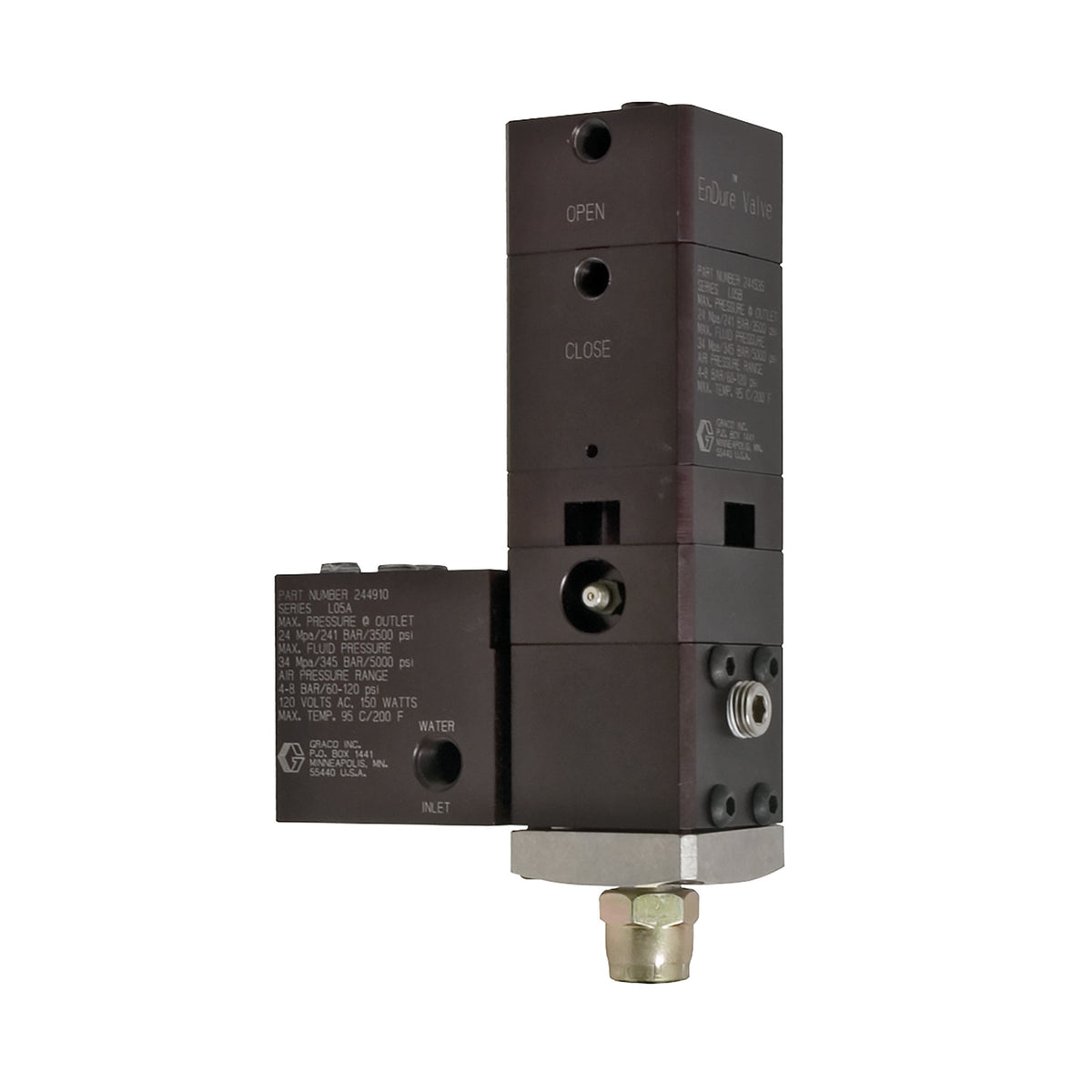

The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Dual seal design
-
Air operated with spring-assisted closing
-
Heated temperature up to 204ºC (400ºF)
-
Manifold includes a 200W heater and a 240V, 8 pin square connector
-
Replaces 243694, 243696 hot melt valves where operating temperature is less than 95ºC (200ºF)
UPC Product: 00633955678033
Family Code: FAMAPA
Unit of Measure: EA
Height: 14 IN | 35.56 CM
Length: 7 IN | 17.78 CM
Width: 10 IN | 25.4 CM
Volume: .567 FT3 | .016 M3
Chargeable Weight: 7 LBS | 3.18 KG
Technical Specifications
| Maximum Working Pressure (bar) | 241 |
|---|---|
| Maximum Working Pressure (kg/cm²) | 246.1 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Type | Dispense Valve |
| Model | EnDure |
