EZ-Coil Spring Driven Dual Hose Reel 1/4 Inch x 75 Ft 200 PSI Oil with Hose - Coxreels EZ-SG19WT-175

Coxreels^® EZ-SGW Series — EZ-SGW Series expand the capabilities of the “Side Mount”spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SGW Series (for oxy-acetylene and T Grade gas welding hose) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½” wrench.

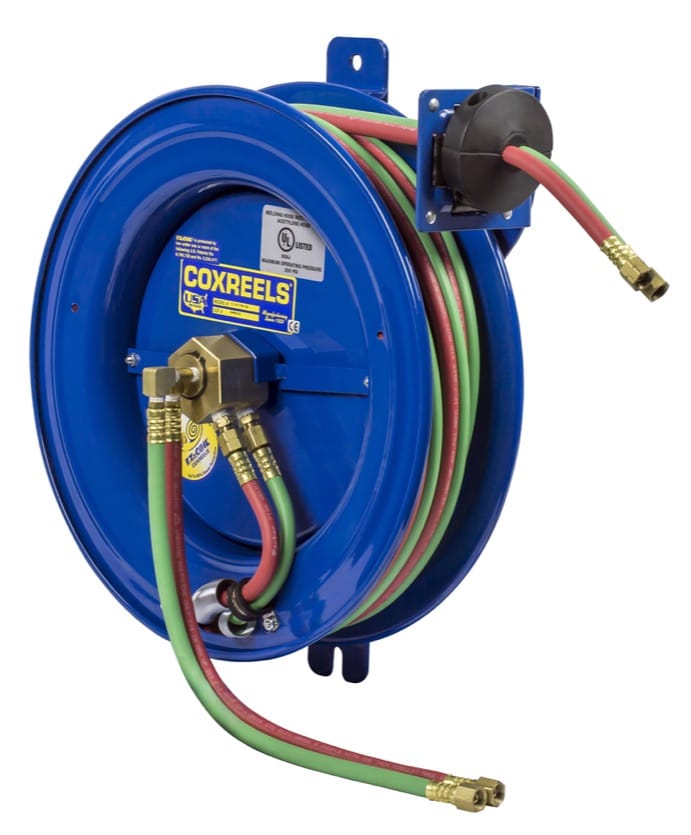

Model EZ-SG19WT-175: Side mount welding hose reel with guide arm, EZ-Coil safety system equipped, 1/4"x75' 200PSI T grade hose

FEATURES

• Multi-position lock ratchet mechanism secures hose at desired length.

• WELDING GAS SWIVEL - External 90◦ full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• SIDE MOUNT DESIGN - Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
• MULTI-POSITION GUIDE ARM - Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, oxy-acetylene or "T" grade welding hose, and sturdy permanently lubricated precision bearings.
