Coxreels® EZ-Nitro-Pro® Series — EZ-Nitro-Pro® Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. The EZ-Coil® model features Coxreels®’ patented rewind safety system that retracts up to 80% slower than conventional spring driven reels. This reel is specifically designed to reduce workplace accidents and increase operator safety.

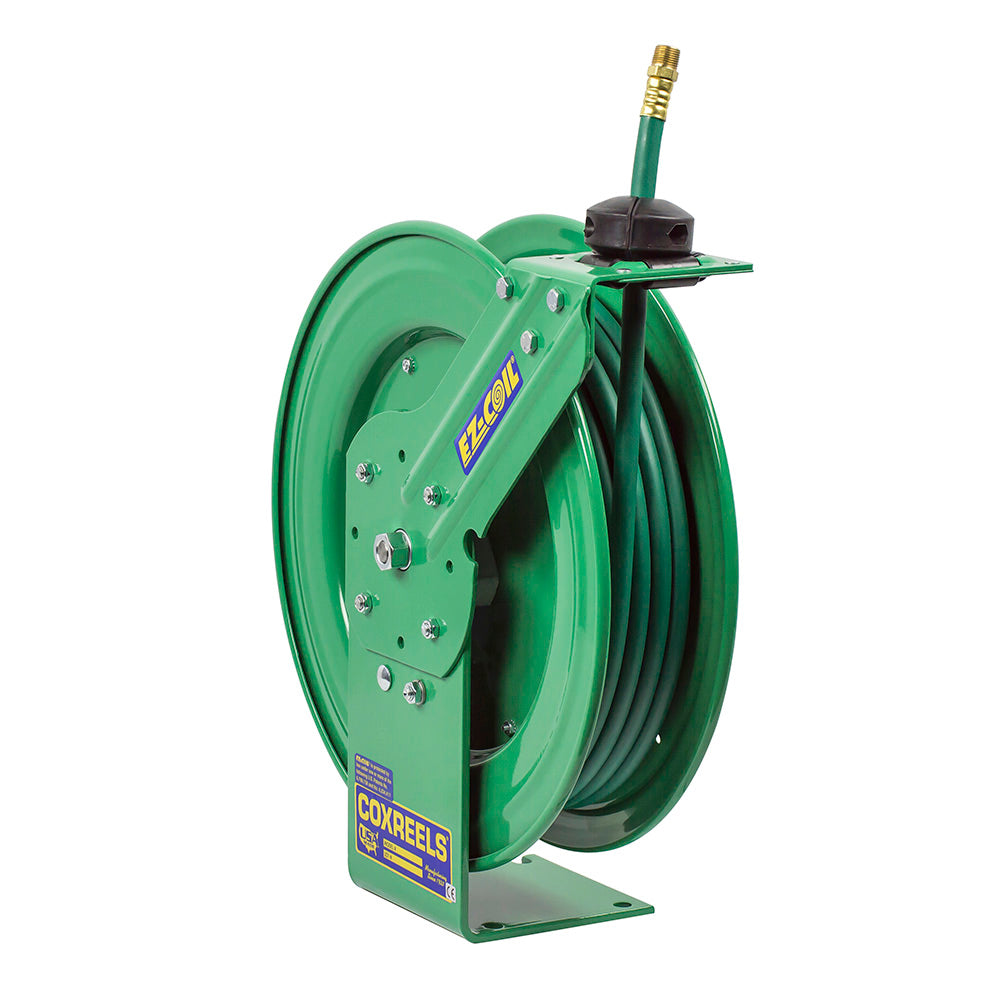

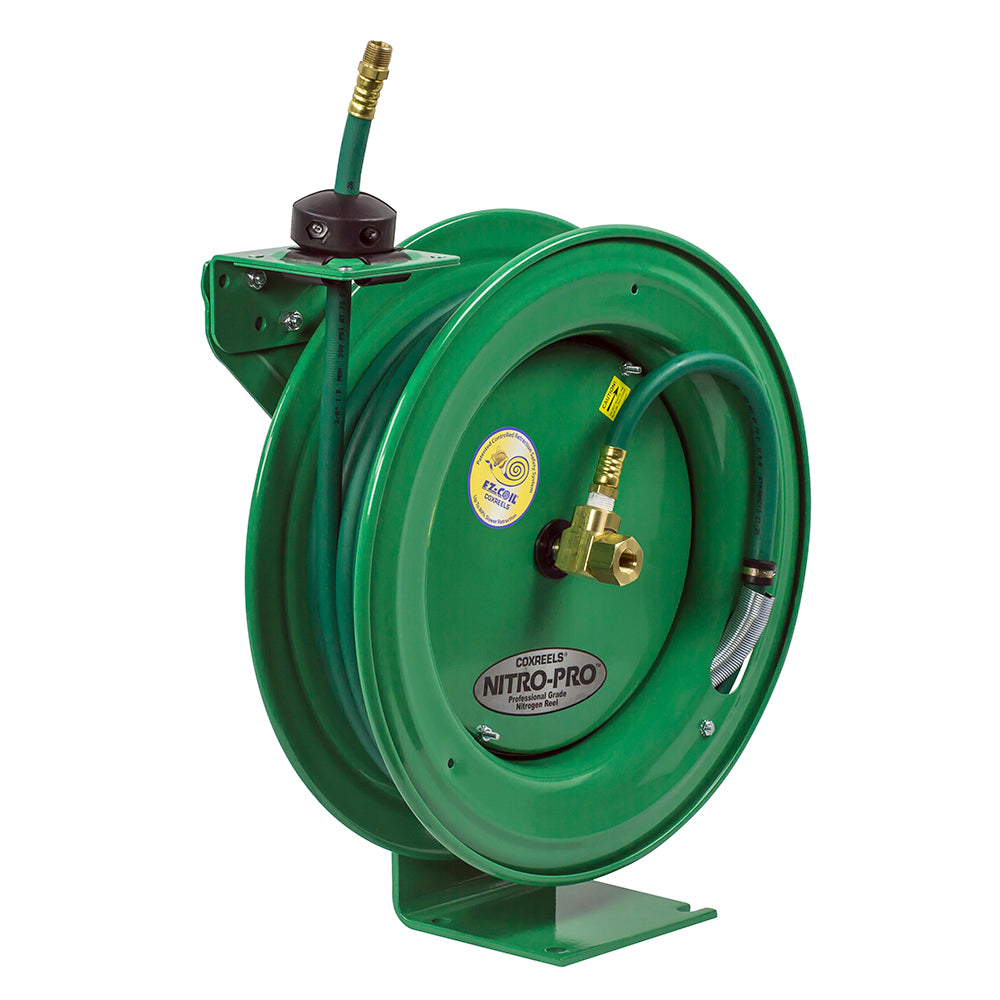

Model EZ-P-NPL-350: Spring Rewind Hose Reel for Nitrogen : EZ-Coil safety system equipped, 3/8" I.D., 50' less hose, 300 PSI
FEATURES
- Nitrogen quality seals in the machined from solid brass 90°full-flow NPT swivel.
- Designed for nitrogen tire inflation systems.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Green nitrogen hose & hose stop to adjust lead length.
- Enclosed factory tuned & matched cartridge-style spring motor.
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- SWIVEL - Nitrogen quality seals in the machined solid from brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting special "Nitrogen green" porpietary CPC™ powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.
| MODEL | EZ-P-NPL-350 |
| REEL TYPE | EZ-Coil Spring Driven |
| I.D | 3/8" |
| O.D | 5/8" |
| LENGTH | 50' |
| HOSE | No |
| MAX PSI | 300 |
| SHIP WEIGHT (LBS) | 36 |
| OVERALL DIMENSIONS (W) (H) (L) | 6.75" (W) 18.63" (H) 17.13" (L) |
| MOUNTING PATTERN (M) (N) | 4" (M) 5" (N) |
| BASE (X) (Y) | 6" (X) 6" (Y) |
