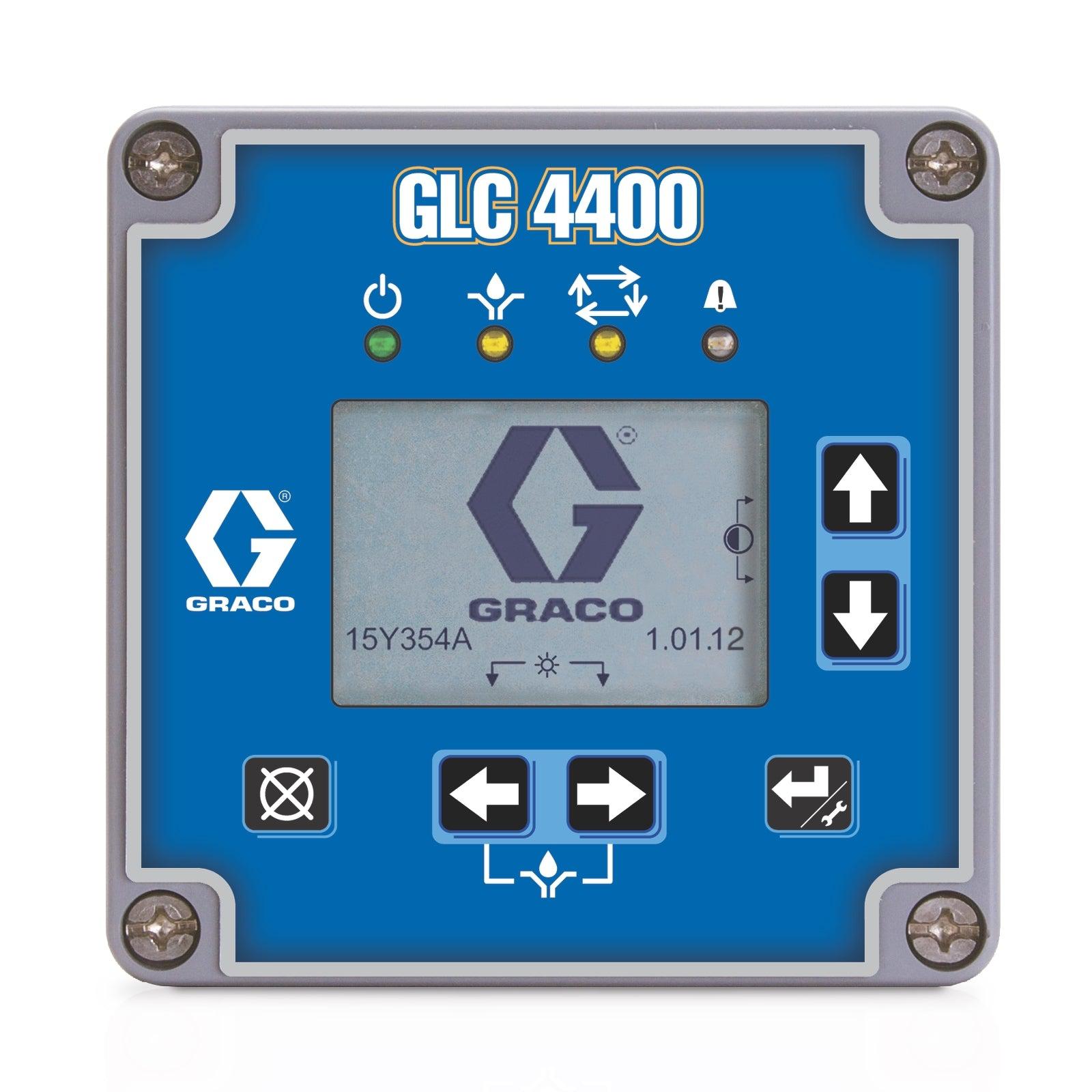

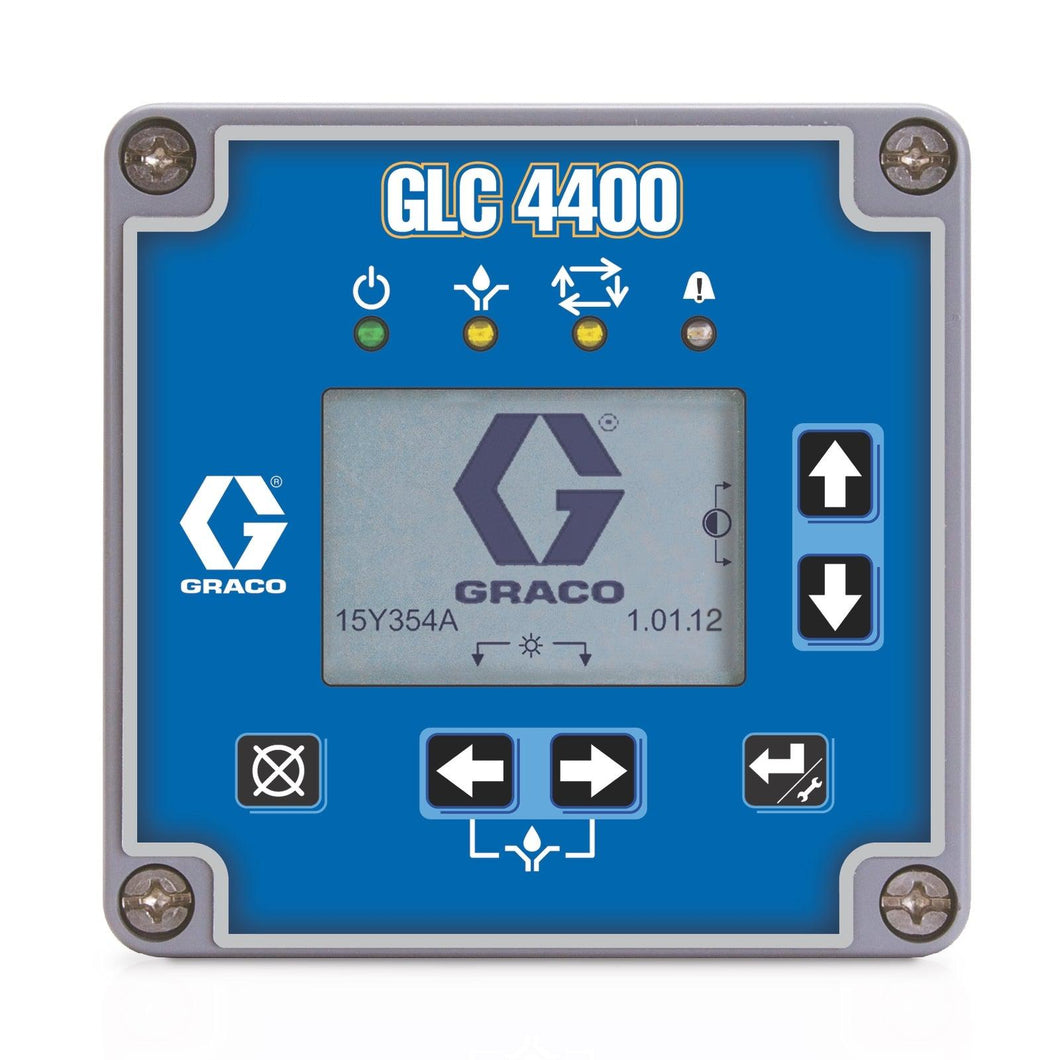

GLC 4400 Series Controller, 100-240 VAC
GLC 4400 Series Controller, 100-240 VAC

GLC 4400 Series Controller, 100-240 VAC

Regular price
$1,490.26
Sale price
$1,490.26
Quantity must be 1 or more


Easily manage your automatic lubrication system. Loaded with features and simple to operate. A must-have controller for ensuring critical machine lubrication.

For use with heavy construction, mining and other mobile off-road equipment, in-plant machinery, food and beverage and wind energy applications.

  • Customise your lubrication time, pressure, cycle counts and machine counts for maximum precision and productivity
  • Simple icon and menu-based user interface is easy to setup and operate, saving valuable technician time
  • Special operation modes save setup and inspection time
  • Rugged and weatherproof, meeting stringent IP69K protection requirements
  • Works with single line resistive, single line parallel, series progressive and dual line systems
UPC Product: 00633955525412
Family Code: FAMCPT
Unit of Measure: EA
Height: 5.45 IN   |  13.843 CM
Length: 6.95 IN   |  17.653 CM
Width: 8.35 IN   |  21.209 CM
Volume: .183 FT3   |  .005 M3
Chargeable Weight: 2.63 LBS  | 1.19 KG

Technical Specifications

For Use With Grease Jockey 润滑系统, Grease Jockey, Grease Jockey, Grease Jockey, Grease Jockey, Grease Jockey, Grease Jockey
Includes Grease Jockey 计时器, Grease Jockey タイマー, Grease Jockey Timer, Minuteur pour Grease Jockey, faisceau de câbles, kit de conversion, Grease Jockey Timer, Grease Jockey-timer, Timer Grease Jockey
Series 4400
Type Lubrication Controller
Intrusion Rating IP69K
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Maximum Operating Temperature (°C) 63
Maximum Operating Temperature (°F) 145
Frequency (Hz) 50/60
Minimum Storage Temperature (°C) -25
Minimum Storage Temperature (°F) -13
Maximum Storage Temperature (°C) 63
Maximum Storage Temperature (°F) 145
Weight (kg) 0.91
Weight (lb) 2
Power Consumption (W) 24
Overall Depth (cm) 9.14
Overall Depth (in) 3.6
Overall Depth (mm) 91.4
Overall Height (cm) 11.9
Overall Height (in) 4.8
Overall Height (mm) 120
Overall Width (cm) 12.2
Overall Width (in) 4.8
Overall Width (mm) 122
Power Source AC
Compatible Metering Device Single Line Resistive, Single Line Parallel, Series Progressive
Application Off-Road Equipment, In-Plant Machinery, Mining, Wind Energy
Model GLC

;
