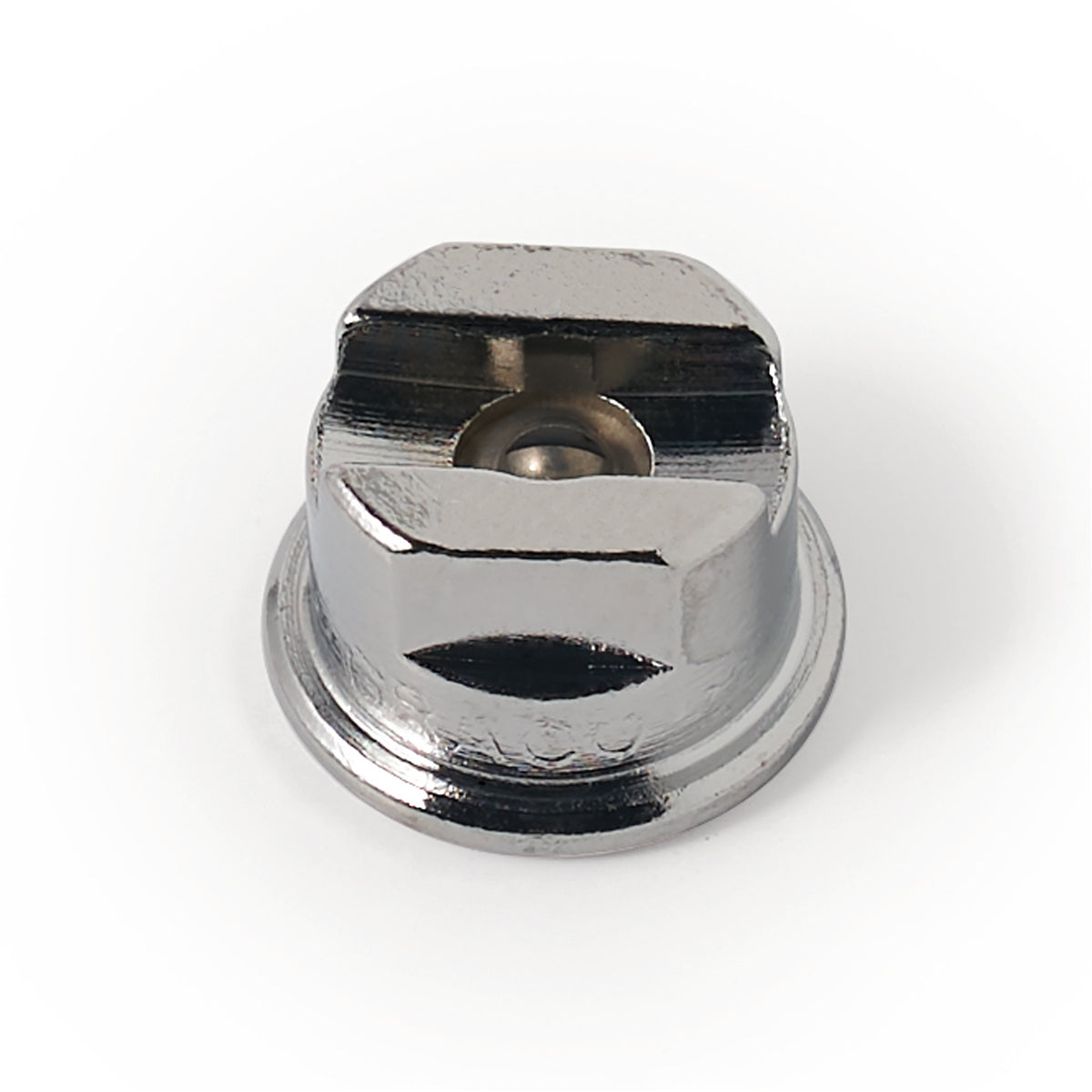

Graco 163731 SILVER FLAT TIP,SPRAY TC

Graco 163731 SILVER FLAT TIP,SPRAY TC

Regular price
$54.25
Sale price
$54.25
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a additional delivery fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

UPC Product:  633955142213
Family Code:  FAMSLT
Country of Origin:  US
Unit of Measure:  EA
Height: .85 IN   |  2.159 CM
Length: .9 IN   |  2.286 CM
Width: .7 IN   |  1.778 CM
Volume: 0 FT3   |  0.000 M3
Shipping Weight: .06 LBS  | 0.027 KG

Technical Specifications

Orifice Diameter (in) 0.031
Maximum Working Pressure (kPa) 34500
Maximum Working Pressure (psi) 5000
Maximum Working Pressure (bar) 345
Type Spray Tip
Maximum Fan Width (in) 14
Maximum Fan Width (mm) 406
Spray Pattern Fan
Tip Type Airless
Pattern Size (in) 14 to 16
Maximum Flow Rate (GPM) 1.03
Maximum Fan Width (cm) 35
Maximum Flow Rate (L/min) 3.90
Minimum Fan Width (in) 14
Minimum Fan Width (mm) 356
Pattern Size (mm) 355.6 to 406.4
Model Silver
Series Flat Tip
