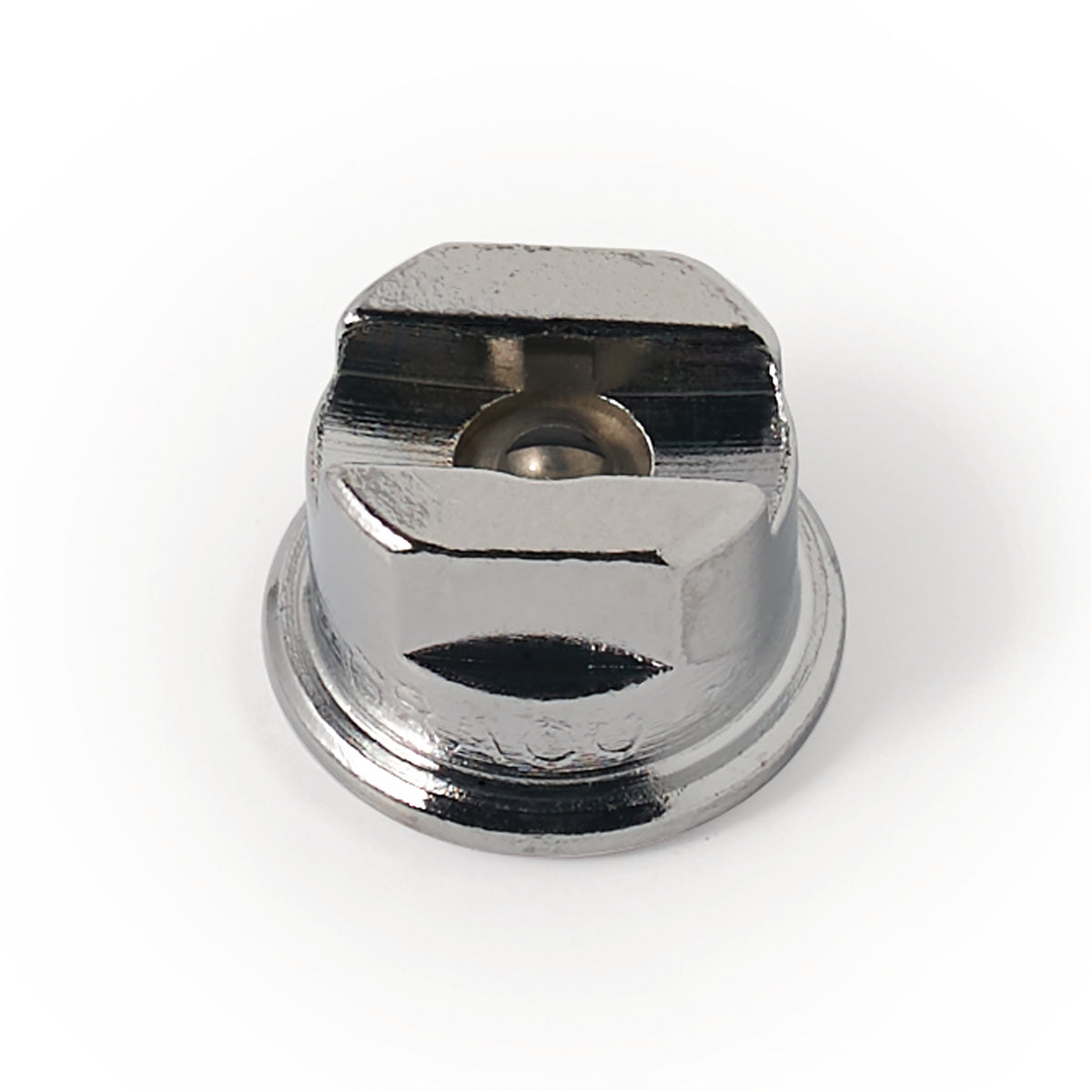

Graco 163839 SILVER FLAT TIP,SPRAY TC

Graco 163839 SILVER FLAT TIP,SPRAY TC

Regular price
$52.00
Sale price
$52.00
Quantity must be 1 or more


UPC Product:  633955174443
Family Code:  FAMSLT
Country of Origin:  US
Unit of Measure:  EA
Height: 1 IN   |  2.540 CM
Length: .7 IN   |  1.778 CM
Width: .7 IN   |  1.778 CM
Volume: 0 FT3   |  0.000 M3
Shipping Weight: .02 LBS  | 0.009 KG

Technical Specifications

Orifice Diameter (in) 0.039
Maximum Working Pressure (kPa) 34500
Maximum Working Pressure (psi) 5000
Maximum Working Pressure (bar) 345
Type Spray Tip
Maximum Fan Width (in) 16
Maximum Fan Width (mm) 457
Spray Pattern Fan
Tip Type Airless
Pattern Size (in) 16 to 18
Maximum Flow Rate (GPM) 1.63
Maximum Fan Width (cm) 40
Maximum Flow Rate (L/min) 6.17
Minimum Fan Width (in) 16
Minimum Fan Width (mm) 406
Pattern Size (mm) 406.4 to 457.2
Model Silver
Series Flat Tip
