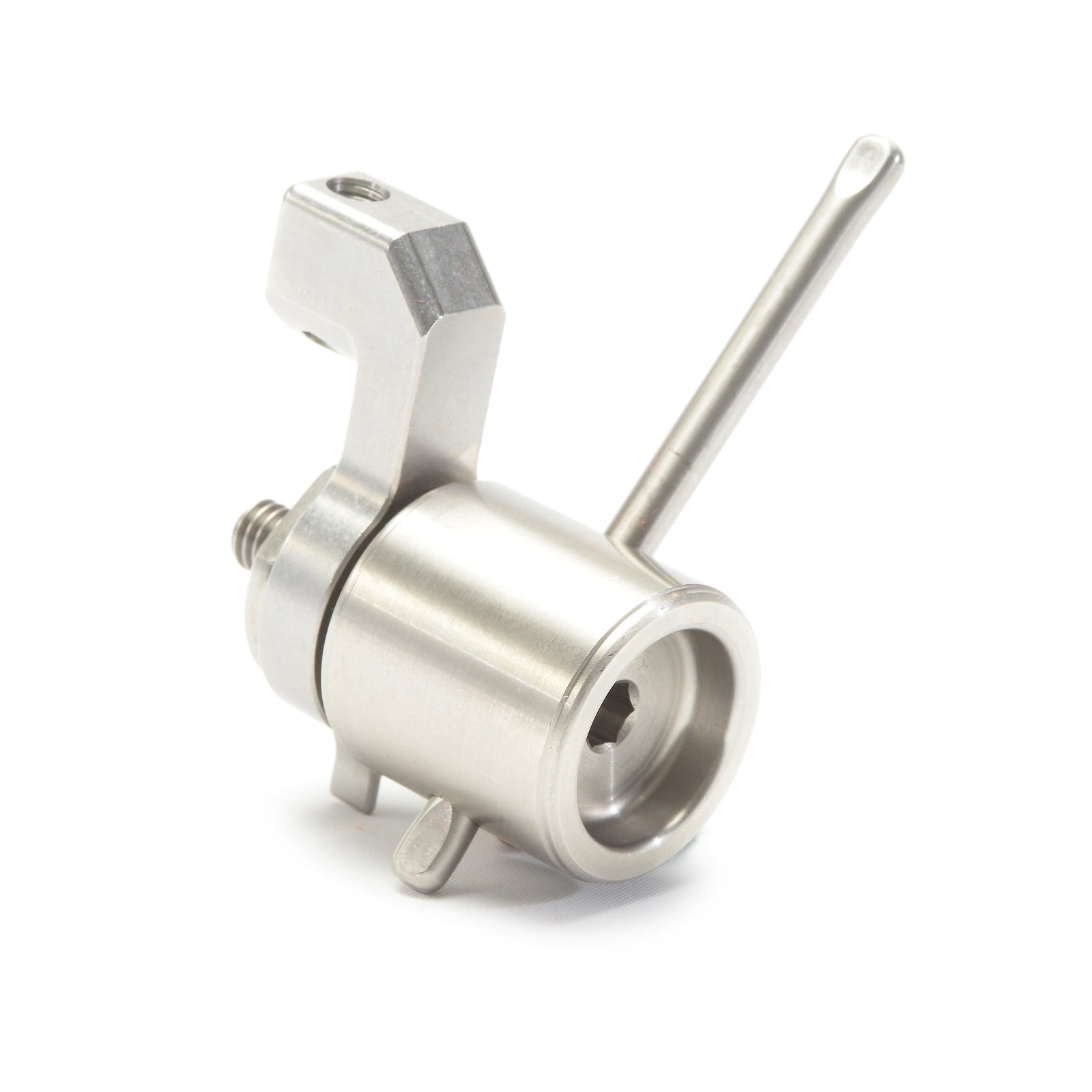

Graco Repair Kit, Catalyst, Yoke (Part Number 16N617). A comprehensive repair kit for the catalyst side yoke assembly on Graco plural-component proportioning pumps.
Features
- Yoke, Handle Assembly (Qty. 1)
- Housing, Slave Pump (Qty. 1)
- Cartridge, Assembly, FRP (Qty. 1)
- Valve, 3000 PSI Blow Off (Qty. 1)
- Base, Valve (Qty. 1)
- Handle (Qty. 1)
- Pin, Spring (Qty. 1)
- Gauge, Pressure, Fluid, SST (Qty. 1)
- Pin, SST Quick Release (Qty. 1)
- Cable, SST Lanyard, 5 in. (Qty. 1)
- Rod, Piston, Slave Pump (Qty. 1)
- Spring, Transfer Housing (Qty. 1)
- Valve, Poppet (Qty. 1)
- O-Ring, 003, Viton Extreme (Qty. 1)
- Housing, Transfer, Etched (Qty. 1)
- Seal, Radial (Qty. 1)
- Guide, Piston (Qty. 1)
- Cap, Transfer Housing (Qty. 1)
- Cylinder, Slave Pump (Qty. 1)
- O-Ring, Silicone, 2-014 (Qty. 2)
- Ring, Backup, .518 ID, .053 Width (Qty. 2)
- Nut, Lock (Qty. 1)
- Housing, Inlet, Slave (Qty. 1)
- Seat, Ball, 7/16 Dia. (Qty. 1)
- Bearing, Flanged, .375 ID (Qty. 2)
Specifications
| Part Number | 16N617 |
| Type | Repair Kit |
| Application | Catalyst Side, Yoke Assembly |
| Category | Pump Accessory Kits |
