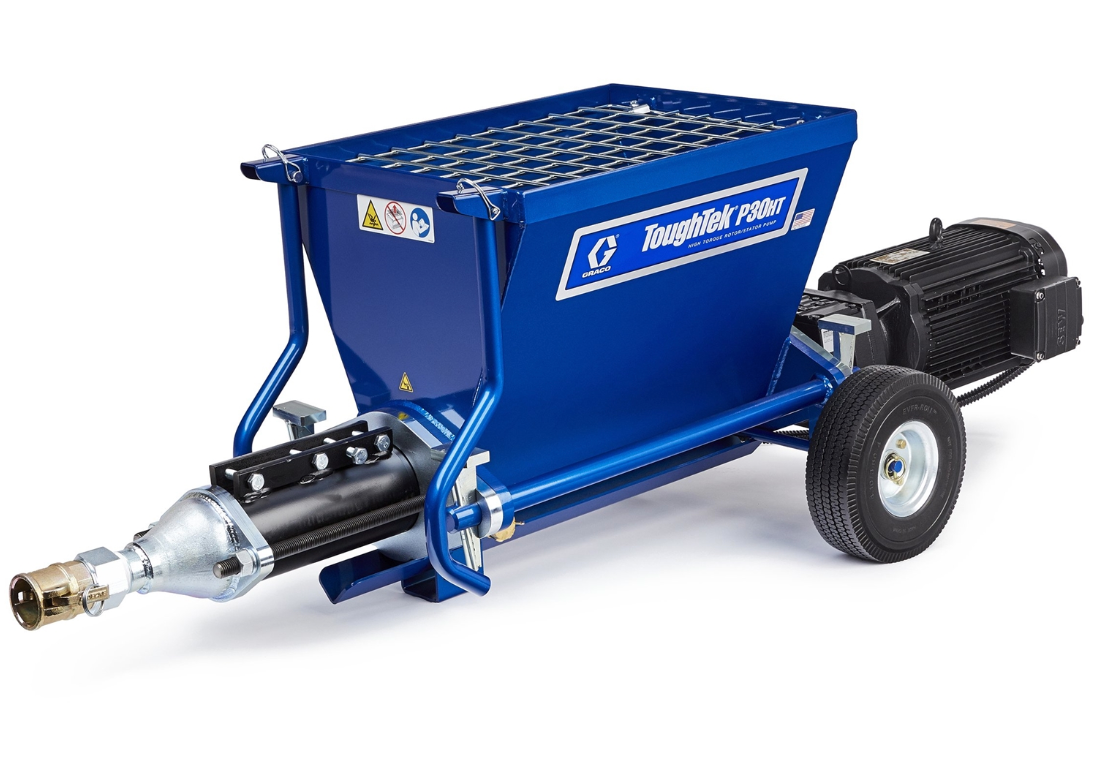

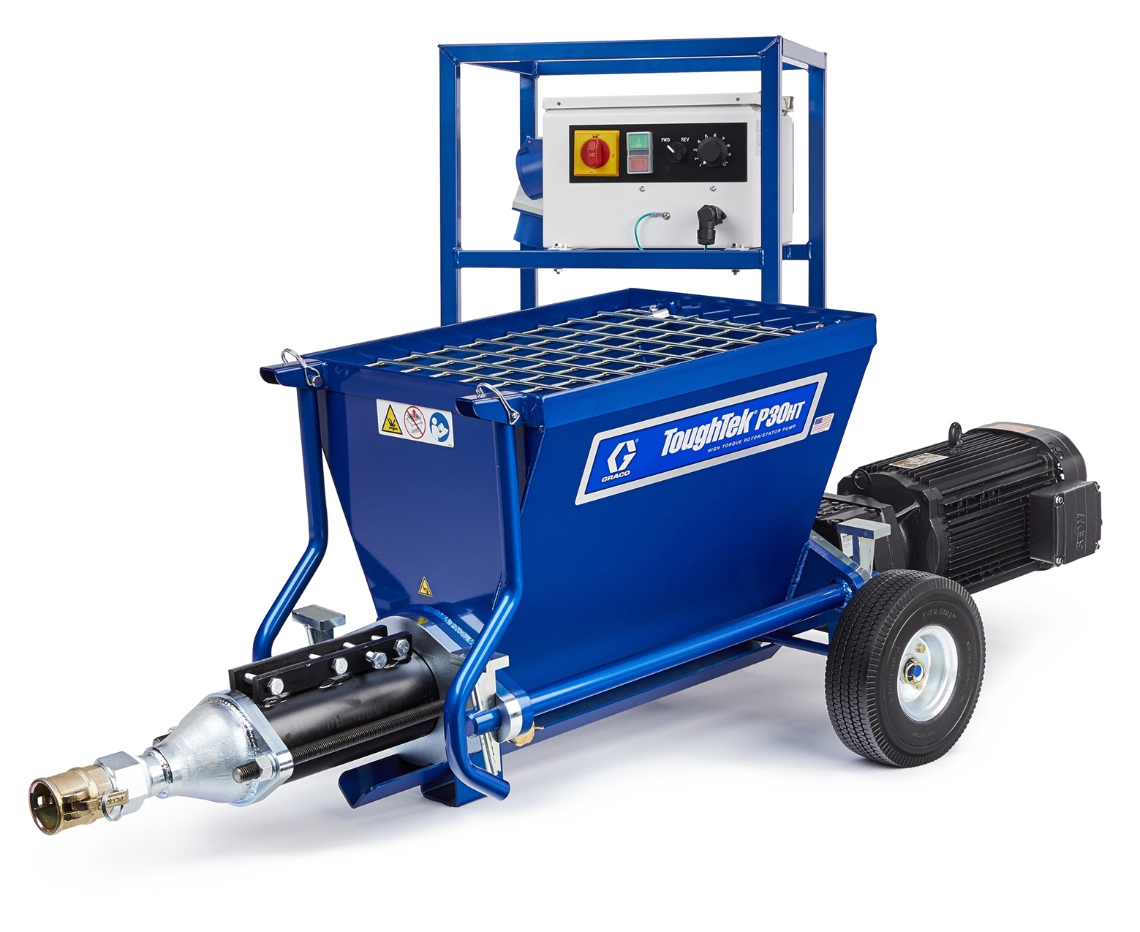

Graco 25M032 ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph
Graco 25M032 ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph

Graco 25M032 ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph

Regular price
$21,412.37
Sale price
$21,412.37
Quantity must be 1 or more
Request a Quote / More Information

Our sales team typically responds within 1 business day.



Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport stadiums, high-rises, apartment complexes, hospitals and parking garages to name a few.

Built for mid-range mortar applications

  • Easy to use, easy to move
  • Variable pump output lets you adjust material flow
  • Optional remote control operation
  • Flow rate: 10 gpm (38 lpm)
  • Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
  • Pumping distance: 100 feet + (30 m)
  • Pumping height: 60 feet (18 m)
  • Reversible pump direction
  • Hopper capacity: 16 Gal (60.6 L)
  • Power requirements: 230V, 30A, 1-ph

Specifications:

Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in) 3.8
Fluid Outlet Size (in) 1.5
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Maximum Flow Rate (GPM) 9.8
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (psi) 300
Model ToughTek
Motor Type Electric
Overall Height (ft) 2.0
Overall Height (in) 24
Overall Length (ft) 5.83
Overall Length (in) 70
Overall Width (ft) 2.08
Overall Width (in) 25
Power Rating (HP) 7.5
Power Rating (W) 5593
Power Rating (kW) 5.59
Series P30HT
Type Electric Rotor Stator Pump
Weight (lb) 300
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON
