Graco 25M041 ToughTek P30X High Torque System
Graco 25M041 ToughTek P30X High Torque System

Graco 25M041 ToughTek P30X High Torque System

Regular price
$26,490.00
Sale price
$26,490.00
Quantity must be 1 or more

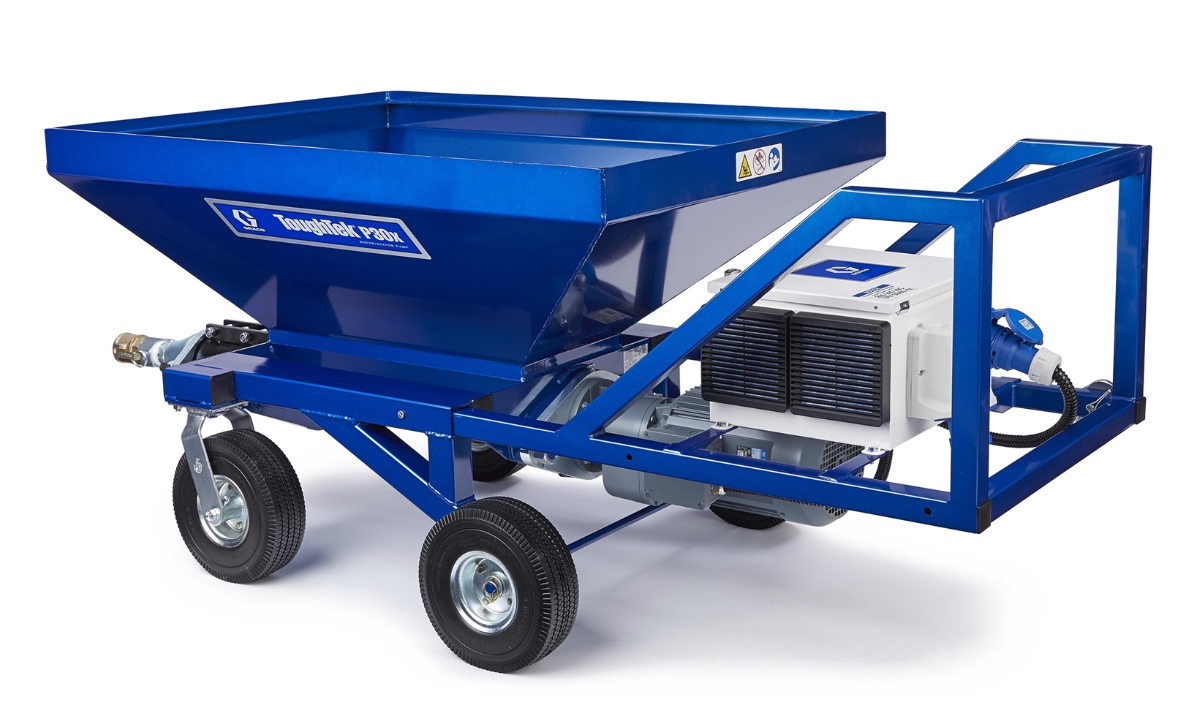

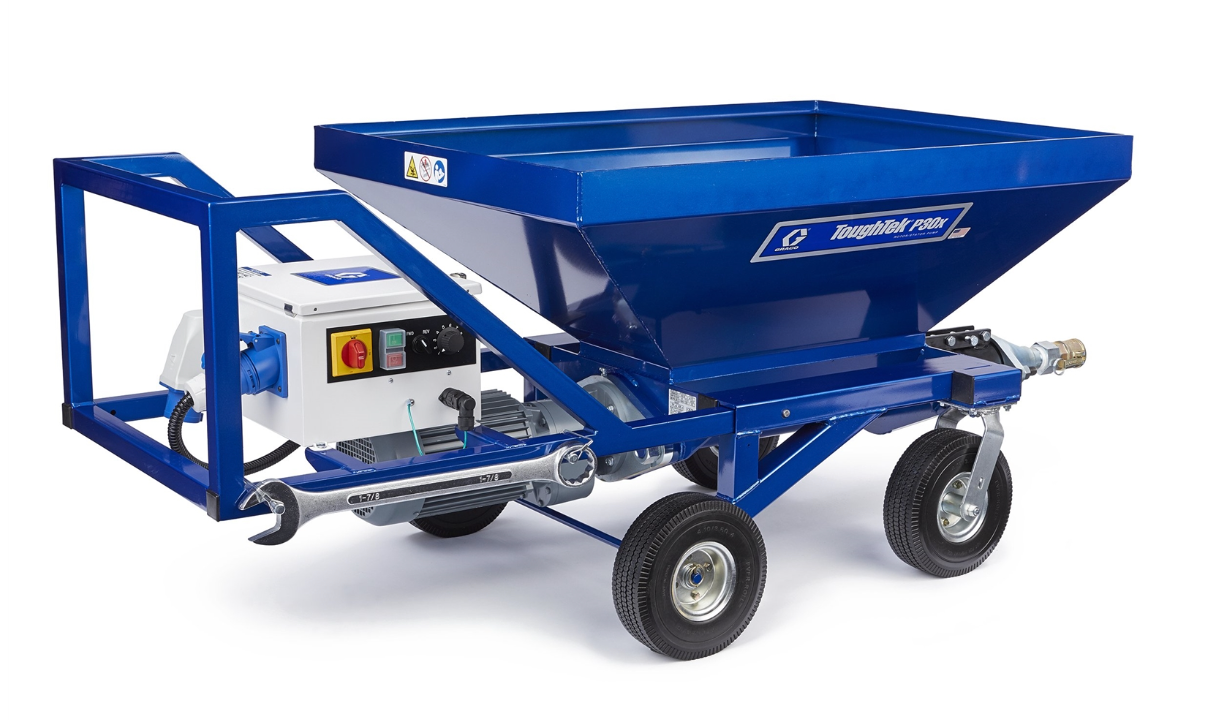

The ToughTek P30X-HT is perfect for contractors who are looking for versatility and features for medium to large stucco and EIFS projects. The P30X-HT has a large 60-gallon (227 liter) hopper and offers superior performance for a variety of stucco and EIFS materials.

For medium to large projects

  • Easy to use, easy to move
  • Variable pump output lets you adjust material flow
  • Optional remote control operation
  • Flow rate: 10 gpm (38 lpm)
  • Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
  • Pumping distance: 100 feet + (30 m)
  • Pumping height: 60 feet (18 m)
  • Reversible pump direction
  • Hopper capacity: 60 Gal (227.1 L)
  • Power requirements: 230V, 30A, 1-ph

Specifications:

Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in) 3.8
Fluid Outlet Size (in) 1.5
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Maximum Flow Rate (GPM) 9.8
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (psi) 300
Model ToughTek
Motor Type Electric
Overall Height (ft) 2.58
Overall Height (in) 31
Overall Length (ft) 6.58
Overall Length (in) 79
Overall Width (ft) 2.83
Overall Width (in) 34
Power Rating (HP) 7.5
Power Rating (W) 5593
Power Rating (kW) 5.59
Series P30X HT
Type Electric Rotor Stator Pump
Weight (lb) 440
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON

;
