Heated 55 Gallon Single E-Flo iQ Urethane Metering System, Check-Mate 200cc, D200s, 20 Ft Hose - Graco 26B545
Heated 55 Gallon Single E-Flo iQ Urethane Metering System, Check-Mate 200cc, D200s, 20 Ft Hose - Graco 26B545
Not the sealant and adhesive equipment you're looking for?
Browse all Sealants & Adhesives Equipment →

Heated 55 Gallon Single E-Flo iQ Urethane Metering System, Check-Mate 200cc, D200s, 20 Ft Hose - Graco 26B545

Regular price
$96,512.50
Sale price
$96,512.50
Quantity must be 1 or more
Request More Information

Our sales team typically responds within 1 business day.

Not the sealant and adhesive equipment you're looking for?
Browse all Sealants & Adhesives Equipment →


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

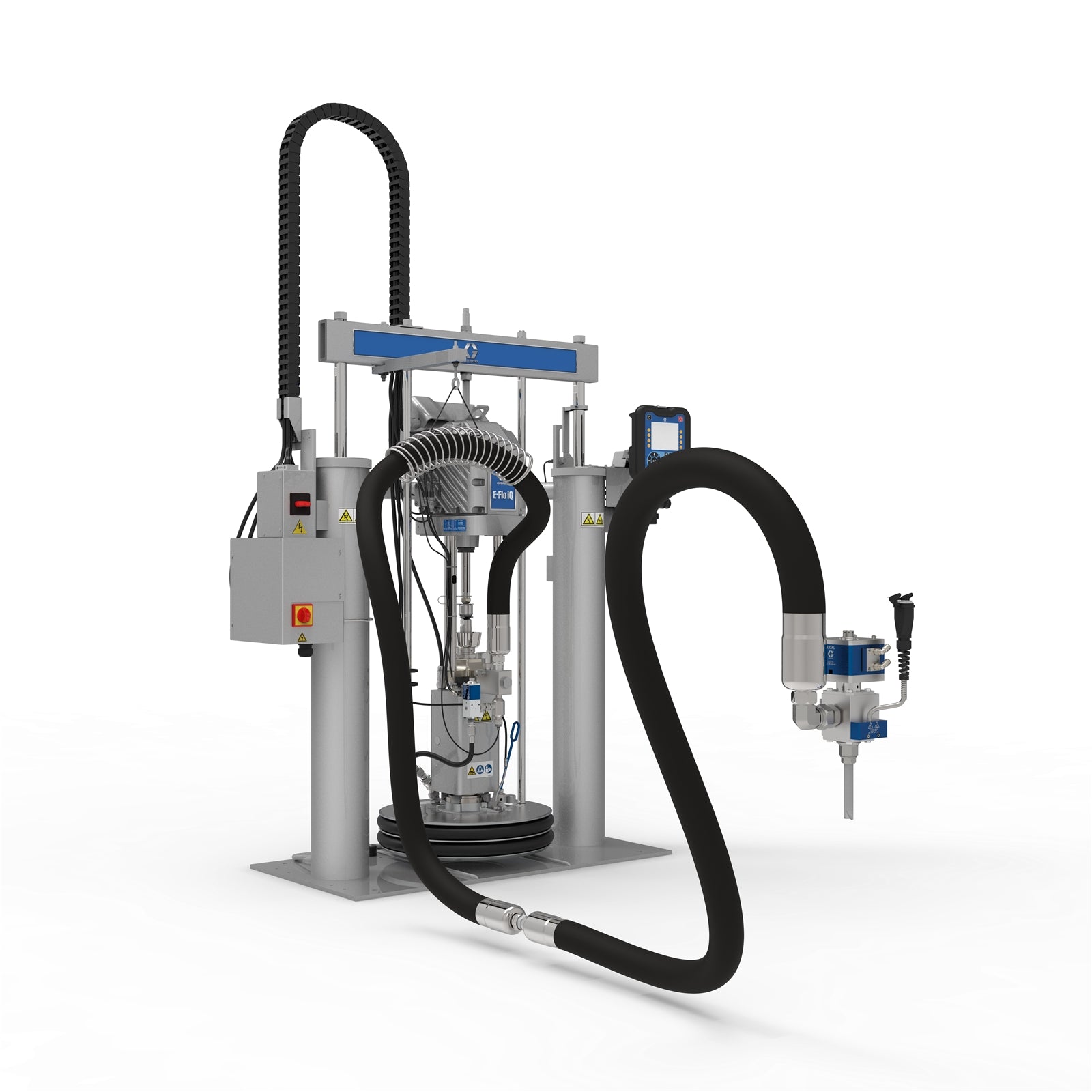

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

Features

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with 20 ft hose
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

Specifications

UPC Product 769946182644
Country of Origin US
Height 78 IN | 198.120 CM
Length 71.5 IN | 181.610 CM
Width 41.5 IN | 105.410 CM
Shipping Weight 1080 LBS | 489.880 KG
Maximum Working Pressure (psi) 4000
Minimum Flow Rate (cc/min) 10
Minimum Fluid Viscosity (cP) 100000
Power Rating (HP) 2.5 hp
Sound Pressure Level (dB(A)) < 70
Air Inlet Size (in) 1
Ambient/Warm Melt/Hot Melt Warm Melt
Maximum Air Inlet Pressure (psi) 125
Maximum Flow Rate (cc/min) 5000
Maximum Fluid Temperature (°F) 158
Maximum Fluid Viscosity (cP) 3000000
Maximum Hose Length (ft) 20
