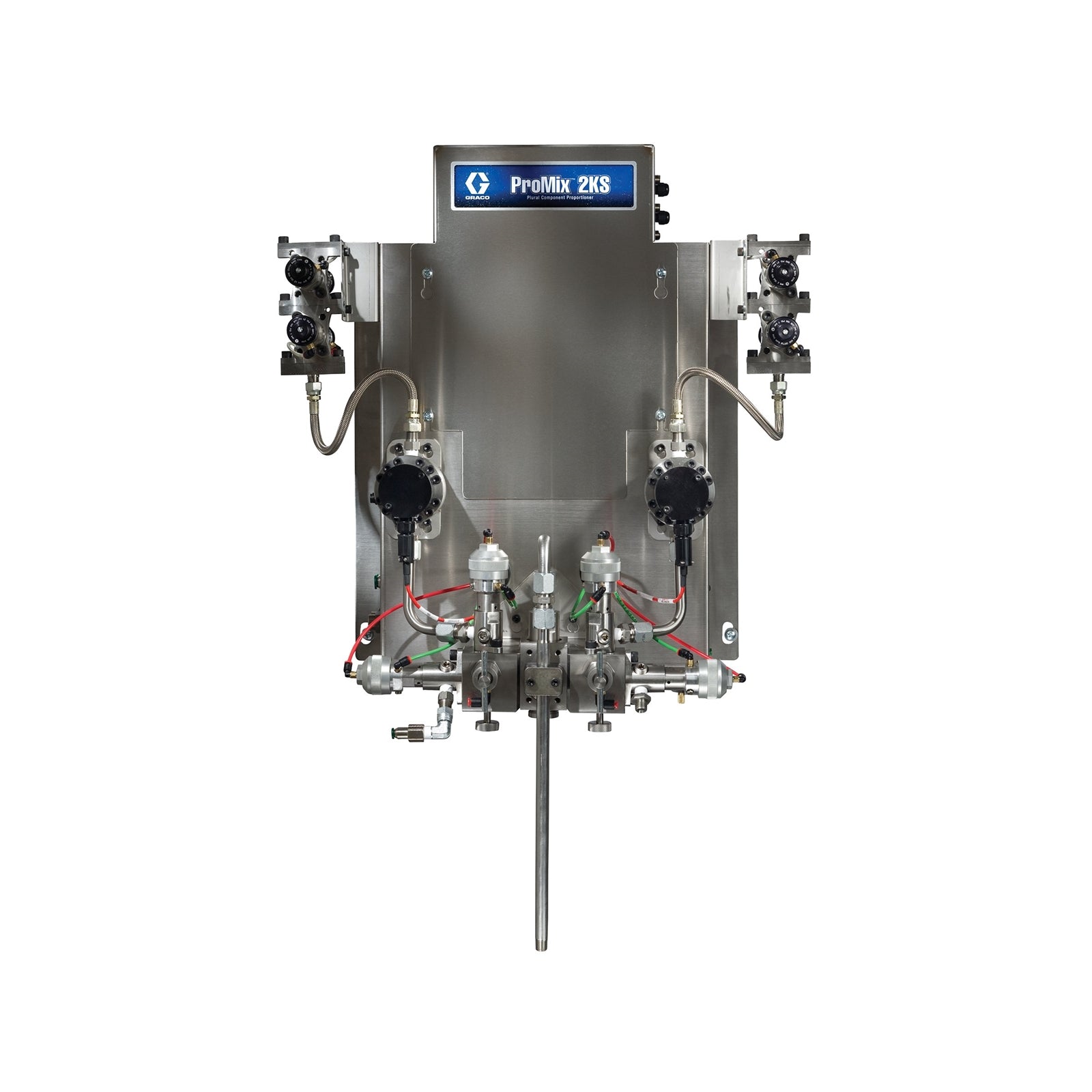

Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
Features
- Optional flow control is cleanly integrated without incorporating a mixed material line meter. Pressure and flow loops provide fast step changes with superior closed loop control.
- Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
- Intrinsically safe fluid panels easily integrate into hazardous areas
- Accurate ratio assurance for superior finish quality
- Advanced web interface provides consolidated system management and reporting
Specifications
| UPC Product | 633955395565 |
| Country of Origin | US |
| Height | 28.8 IN | 73.152 CM |
| Length | 54 IN | 137.160 CM |
| Width | 43.2 IN | 109.728 CM |
| Shipping Weight | 248 LBS | 112.491 KG |
| Proportioner Type | Automatic Wall |
| Sound Pressure Level (dB(A)) | 70 |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Amperage (A) | 2 |
| Component Type | Two Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Frequency (Hz) | 50/60 |
| Maximum Flow Rate (L/min) | 3.79 |
| Maximum Fluid Viscosity (cP) | 3000 |
| Maximum Mix Ratio | 50:1 |
| Maximum Number of Colors | Up to 30 |
| Maximum Working Pressure (psi) | 2300 |
| Minimum Flow Rate (L/min) | 0.02 |
| Minimum Fluid Viscosity (cP) | 0.1 |
| Minimum Mix Ratio | 0.1:1 |
| Mix Accuracy (%) | 1 |
| Model | ProMix |
| Number of Catalysts | 1 |
