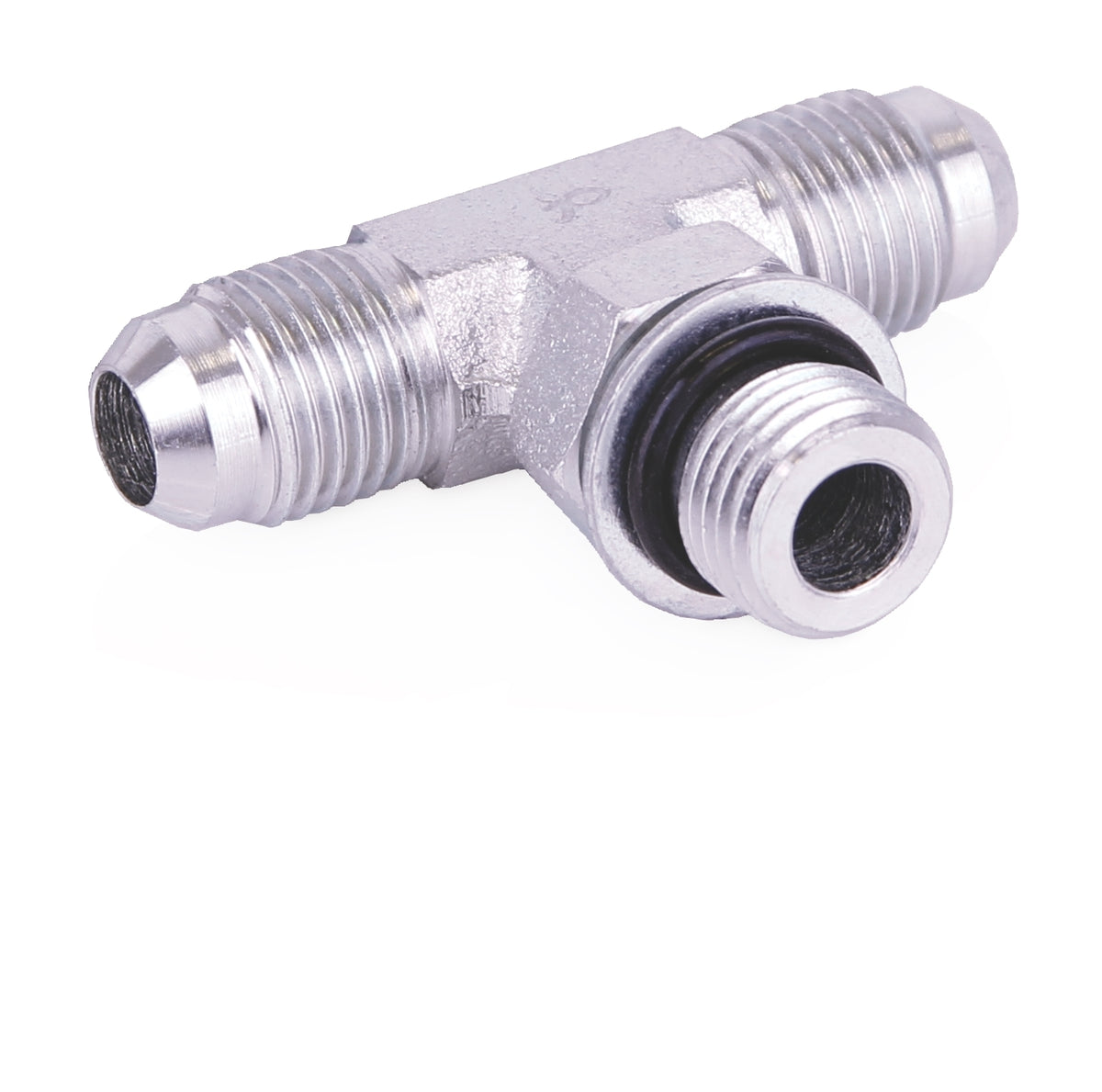

Graco Fitting - Tee, 9/16 MJ(2) X 9/16 SAE

Graco Fitting - Tee, 9/16 MJ(2) X 9/16 SAE

Regular price
$7.85
Sale price
$7.85
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

For use with Electric Grease Jockey System Installation Kits.

  • Mainline Tees (3)
UPC Product: 00755652627609
Family Code: FAMCPT
Unit of Measure: EA
Height: .8 IN   |  2.032 CM
Length: 2.25 IN   |  5.715 CM
Width: 1.7 IN   |  4.318 CM
Volume: .002 FT3   |  0 M3
Chargeable Weight: .15 LBS  | .07 KG

Technical Specifications

Application On-Road Vehicles
Compatible Material Oil, Grease
Connection Type Threaded
For Use With ホース, Hose, Manguera
Material Steel
Maximum Working Pressure (bar) 414
Maximum Working Pressure (kPa) 41400
Maximum Working Pressure (psi) 6000
Size A (in) 9/16
Size A (mm) 14.288
Size B (in) 9/16
Size B (mm) 14.288
Size C (in) 9/16
Size C (mm) 14.288
System of Measurement Imperial
Thread Type JIC, SAE
Type Tee
