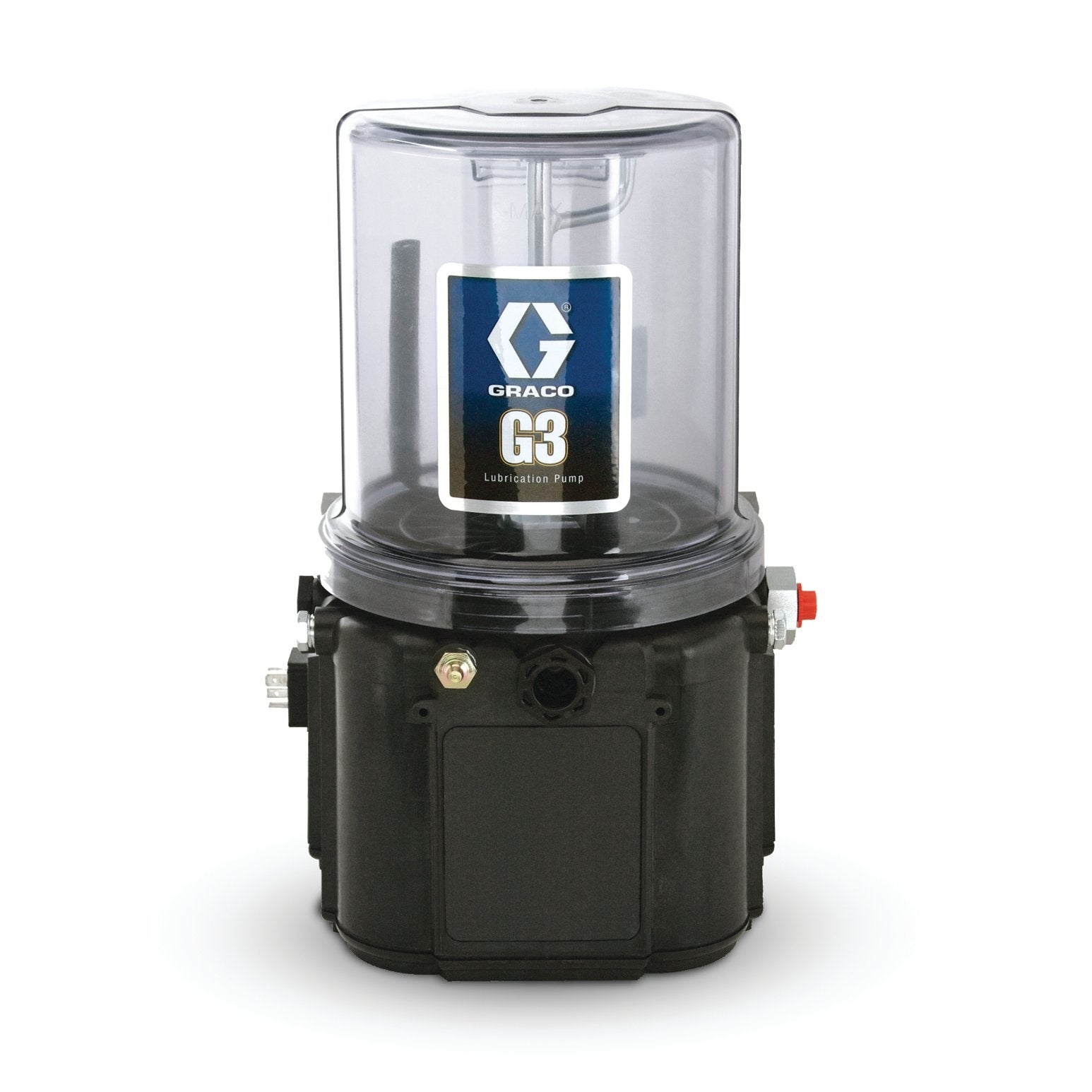

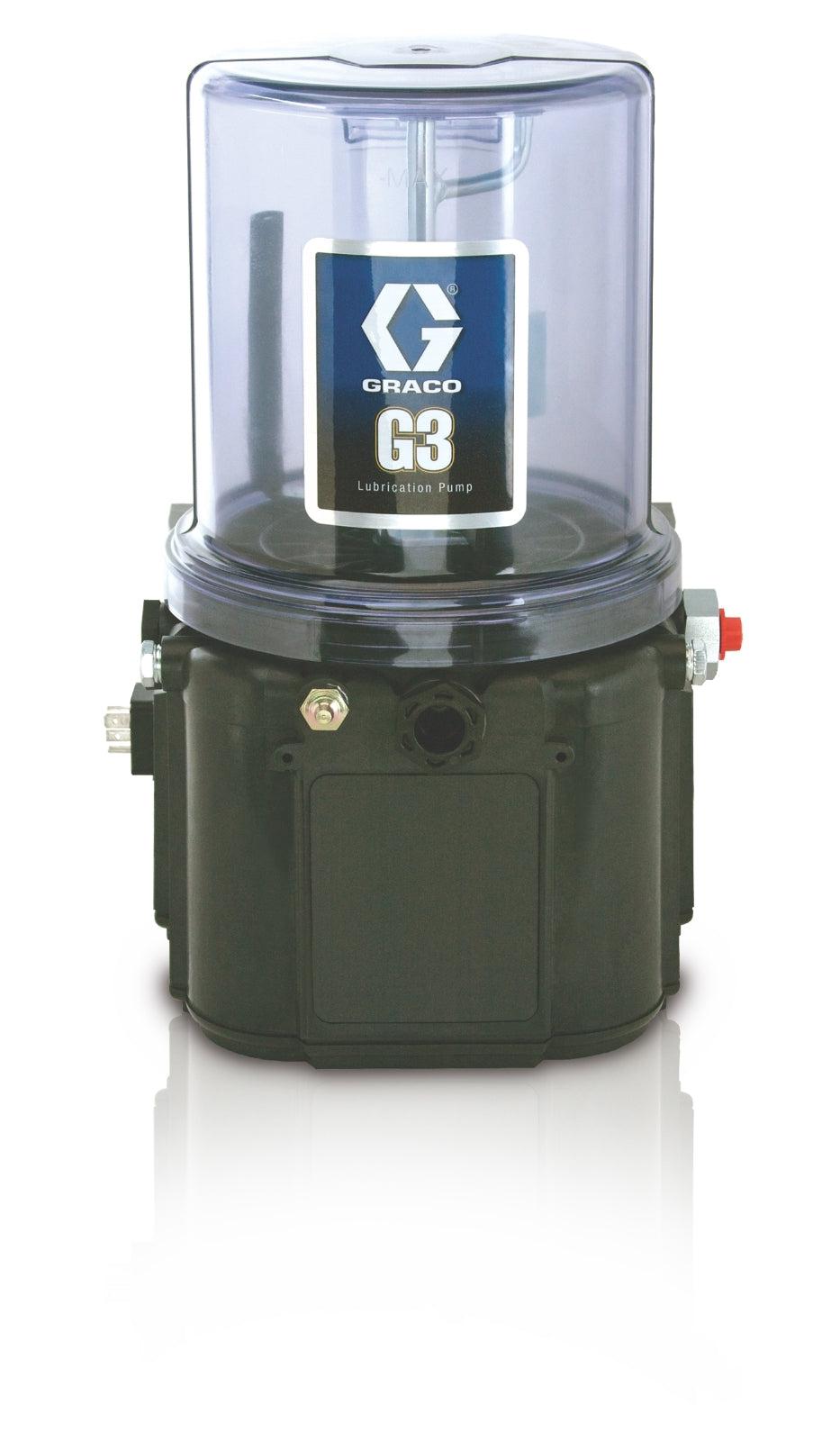

90-240 VAC 16 Liter External Low Level DIN Grease Lubrication Pump - Graco G3 Standard 96G058
90-240 VAC 16 Liter External Low Level DIN Grease Lubrication Pump - Graco G3 Standard 96G058
Not the auto-lube system you're looking for?
Browse all Automatic Lubrication Systems →

90-240 VAC 16 Liter External Low Level DIN Grease Lubrication Pump - Graco G3 Standard 96G058

Regular price
$2,790.00
Sale price
$2,790.00
Quantity must be 1 or more
Not the auto-lube system you're looking for?
Browse all Automatic Lubrication Systems →


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

  • No internal controller–use with separate or existing machine control for a low cost solution
  • Capable of sending a low level signal to your external controller or PLC
UPC Product: 00633955594357
Family Code: FAMMPM
Unit of Measure: EA
Height: 28.8 IN   |  73.152 CM
Length: 12 IN   |  30.48 CM
Width: 30.48 CM   |  12 IN
Volume: 2.4 FT3   |  .068 M3
Chargeable Weight: 24.984 LBS  | 11.327 KG

Technical Specifications

Type Electric Piston Pump
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Grease
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPSF
Includes 刮板, ワイパーアーム, Wiper Arm, Brazo del limpiador, 와이퍼 알람, 外部低液位, 外部低レベル, External Low Level, nivel bajo externo, 외부 저레벨
Maximum NLGI Grade #2
Maximum Working Pressure (bar) 351.6
Maximum Working Pressure (kPa) 35160
Maximum Working Pressure (psi) 5100
Model G3
Power Type Electric
Reservoir Size (gal) 4.23
Reservoir Size (L) 16
Series Standard
Voltage (V ac) 90-240
Weight (lb) 13.3
Wetted Material Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid
Compatible Metering Device Series Progressive, Single Line Parallel
Control Options Standard
IP Rating IP69K
Maximum Fill Inlet Pressure (bar) 344.7
Maximum Fill Inlet Pressure (kPa) 34470
Maximum Fill Inlet Pressure (psi) 5000
Maximum Run Time (min) 30
Maximum Voltage (V ac) 264
Minimum Voltage (V ac) 88
Number of Pump Elements Up to 3
Overall Depth (cm) 25.4
Overall Depth (in) 10
Overall Depth (mm) 254
Overall Height (cm) 69.9
Overall Height (in) 27.5
Overall Height (mm) 699
Overall Width (cm) 23.5
Overall Width (in) 9.25
Overall Width (mm) 235
Power Connection Type DIN
Voltage (V) 90-240 VAC
Weight (kg) 6
Maximum Working Pressure (MPa) 35.1
