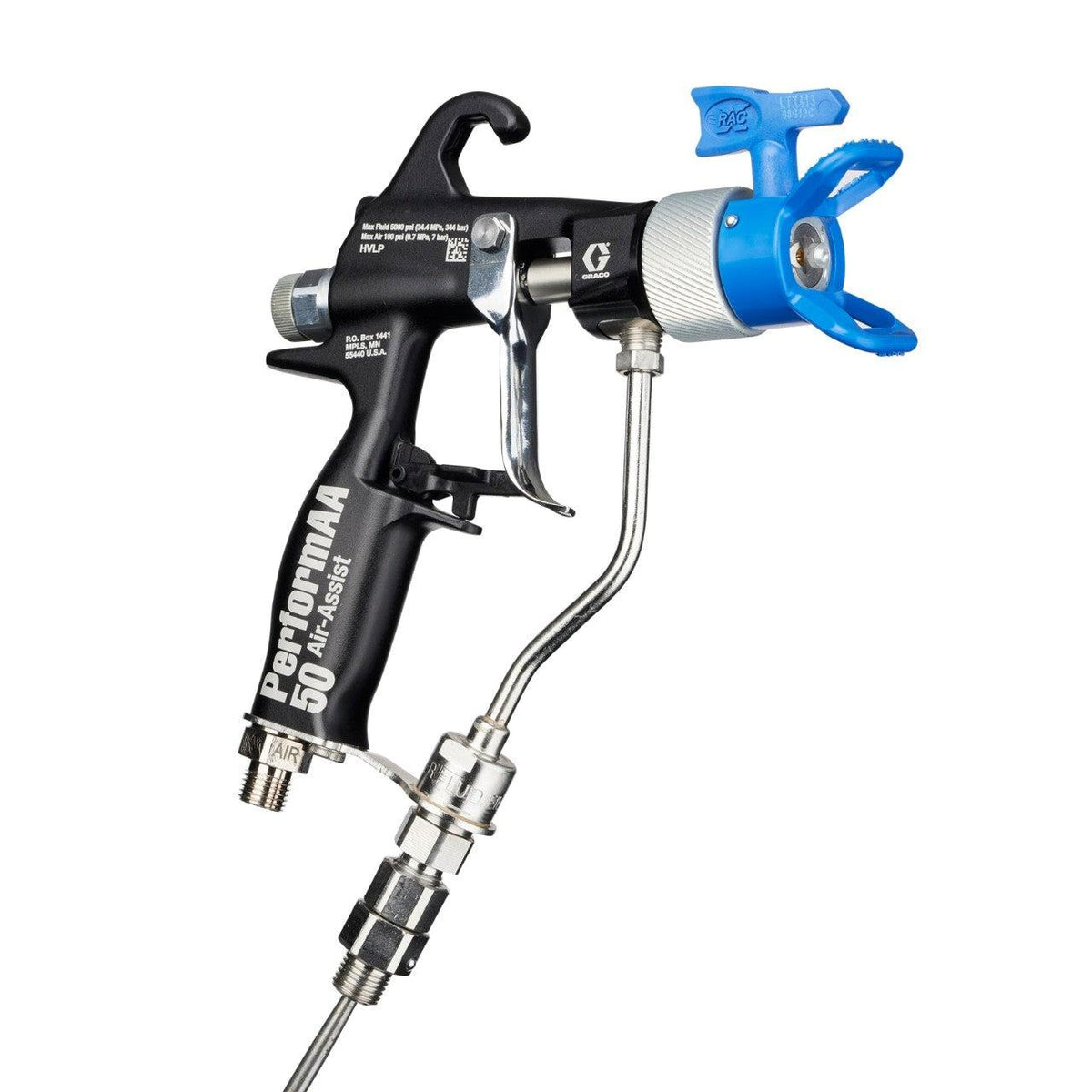

Graco PerformAA 5000 RAC Air Assist Gun w/ Reverse A Clean Air Cap & Spray Tip

Graco PerformAA 5000 RAC Air Assist Gun w/ Reverse A Clean Air Cap & Spray Tip

Regular price
$1,295.00
Sale price
$1,295.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
  • High quality 5000 psi RAC air assist spray gun
  • Rerverse-A-Clean air cap and tip for quick cleaning
  • Carbide seat and carbide ball for durability
  • FFLP or LTX switch tip included as tip of choice
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Compatible Material Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish
Compatible Spray Tip FFLP, LTX
Feed Type Pressure Feed
Fluid Adjustment Knob N/A
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Included 1
Gun Type Air-Assisted Gun
Gun Weight (lb) 1
Gun Weight (oz) 16
Gun Weight with Tip and Guard (g) 490
Gun Weight with Tip and Guard (oz) 17.4
Gun Weight without Tip and Guard (g) 460
Gun Weight without Tip and Guard (oz) 16.2
Includes Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 34.5
Maximum Fluid Pressure (psi) 5000
Maximum Fluid Temperature (°F) 110
Model PerformAA RAC
Overall Height (in) 7.8
Overall Length (in) 7.2
Product Type Spray Gun
Sound Power Level (dB(A)) 72.3
Sound Pressure Level (dB(A)) 62.6
Spray Pattern Flat
Spray Type Air-Assisted
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
