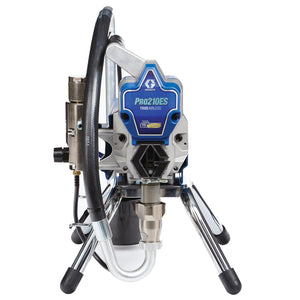

Graco Pro210ES Electric Airless Sprayer - Stand
Graco Pro210ES Electric Airless Sprayer - Stand
Graco Pro210ES Electric Airless Sprayer - Stand

Graco Pro210ES Electric Airless Sprayer - Stand

Regular price
Sale price
Quantity must be 1 or more


Painting contractors and remodelers choose the Pro210ES for tackling jobs like rental and residential properties and small commercial buildings. The proven Endurance pump delivers maximum life and supports a .021-inch tip to spray heavier materials and hot solvents such as solvent-based lacquer.

The ProConnect System allows you to replace the pump on the job, eliminating downtime and keeping you spraying while extending the life of the sprayer. The welded, chrome-plated steel frame enhances durability on the jobsite.

  • Endurance Pump - Maximum life and reparability required by professionals
  • ProConnect Pump Replacement System - Quickly replace worn out pump and eliminate downtime
  • DuraDC Motor - Delivers longest life and supports longer extension cords
  • Lightweight Design - Offset rubber-grip handle that kicks the sprayer away from the body while carrying
  • Chrome Plated Stand - Easy to clean and durable
  • Flexible Suction Hose - Spray directly from 1 or 5 gallon containers with swivel hose
  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
  • TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
  • Easy Out Pump Filter - Added filtration reduces downtime and delivers a higher quality finish
  • QuickAccess Inlet Valve - Allows removal of any debris to eliminate downtime
 Technical Specification
Amperage (A) 13
Compatible Replacement Pump 17C721
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Engine Size (HP) 1.0
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide
Maximum Flow Rate (GPM) 0.47
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 3000
Model Graco
Motor Type DC
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 18.5
Overall Length (in) 16
Overall Width (in) 14
Phase 1
Power Rating (HP) 1.0
Power Rating (W) 745.7
Power Rating (kW) 0.75
Power Source Electric
Pressure Control Type Mechanical Pressure Control
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Hardened Steel
Pump Type Endurance
Series Pro210ES
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Listed, NOM-003-SCFI , NMX-J-521/1
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 700
Weight (lb) 34
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
