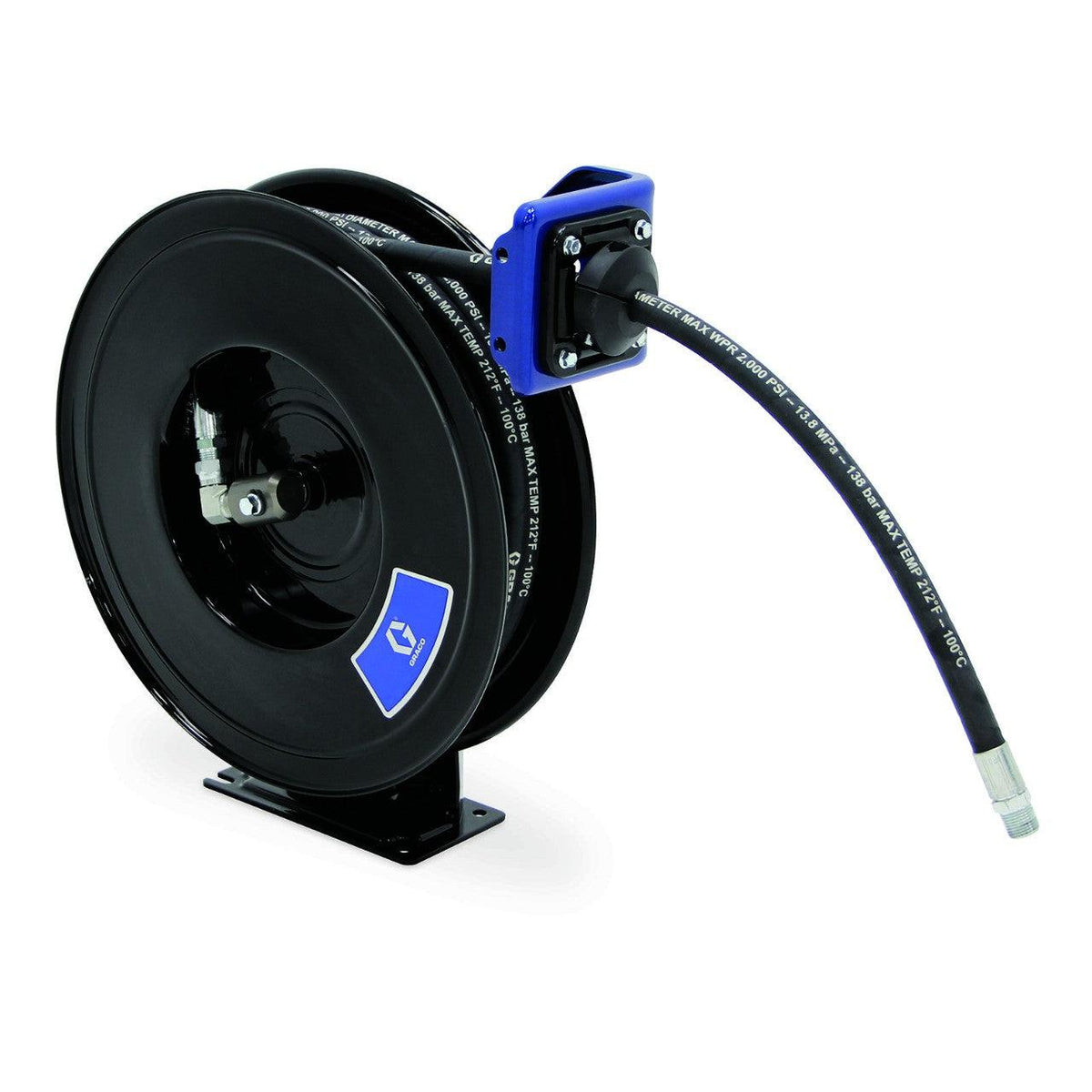

Graco SDX 20, Hose Reel Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose

Graco SDX 20, Hose Reel Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose

Regular price
$909.00
Sale price
$909.00
Quantity must be 1 or more


Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion


Technical Specifications

Application Oil
Color Metallic Blue
Frame Type Single Pedestal
Hose Inside Diameter (in) 1/2
Hose Length (ft) 50
Hose Reel Type Reel with Hose
Inlet Size (in) 1/2
Inlet Thread Gender Male
Inlet Thread Type NPSM
Maximum Temperature (°F) 190
Maximum Working Pressure (psi) 2000
Minimum Temperature (°F) -20
Model SDX
Mount Location Overhead Mount
Outlet Size (in) 1/2
Outlet Thread Gender Male
Outlet Thread Type NPT
Overall Height (in) 21.8
Overall Length (in) 19.2
Overall Width (in) 7
Recommended Environment Indoor, Limited Outdoor
Recommended Fluid Type Oil
Reel Thread Type NPT
Series 20
Type Spring-Rewind Reel
Wetted Parts Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber









Length:24 Height:26 Width:9.5 in.

Chargeable Weight:63.85 LBS
Length:.6096 Height:.6604 Width:.2413 m.
Chargeable Weight:28.962 KG
;
