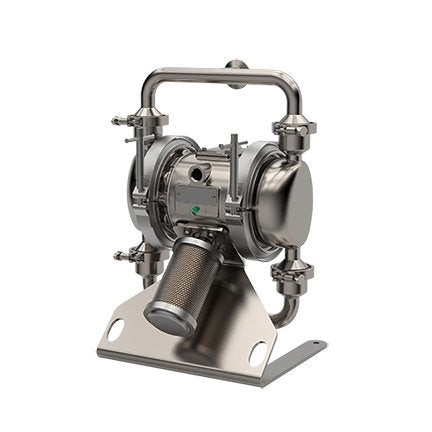

This Graco SaniForce 1040 1" PH stainless steel pneumatic diaphragm pump features an SS center, SS seats, PT balls, and PO diaphragms for food, personal care, and pharmaceutical fluid transfer.
Specifications
| Model | SaniForce |
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compressor Required | Yes |
| Configuration Code | 1040PH.PS03ASSASSPTPOEP21 |
| Diaphragm Material | PTFE/EPDM Overmold |
| Fluid Passage Size (cm) | 2.54 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Fluid Section Material | 316L Stainless Steel |
| For Use With | Food, Personal Care, Pharmaceutical |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | EPDM |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 65 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 240 |
| Maximum Flow Rate (GPM) | 41 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 0.42 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | SaniForce |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials, EC 1935/2004 |
| Surface Finish | 20 Ra |
| Tri-Clamp Connection Size | 1-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 50.5 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Solid Size (cm) | 1.07 |
| Maximum Solid Size (mm) | 10.7 |
