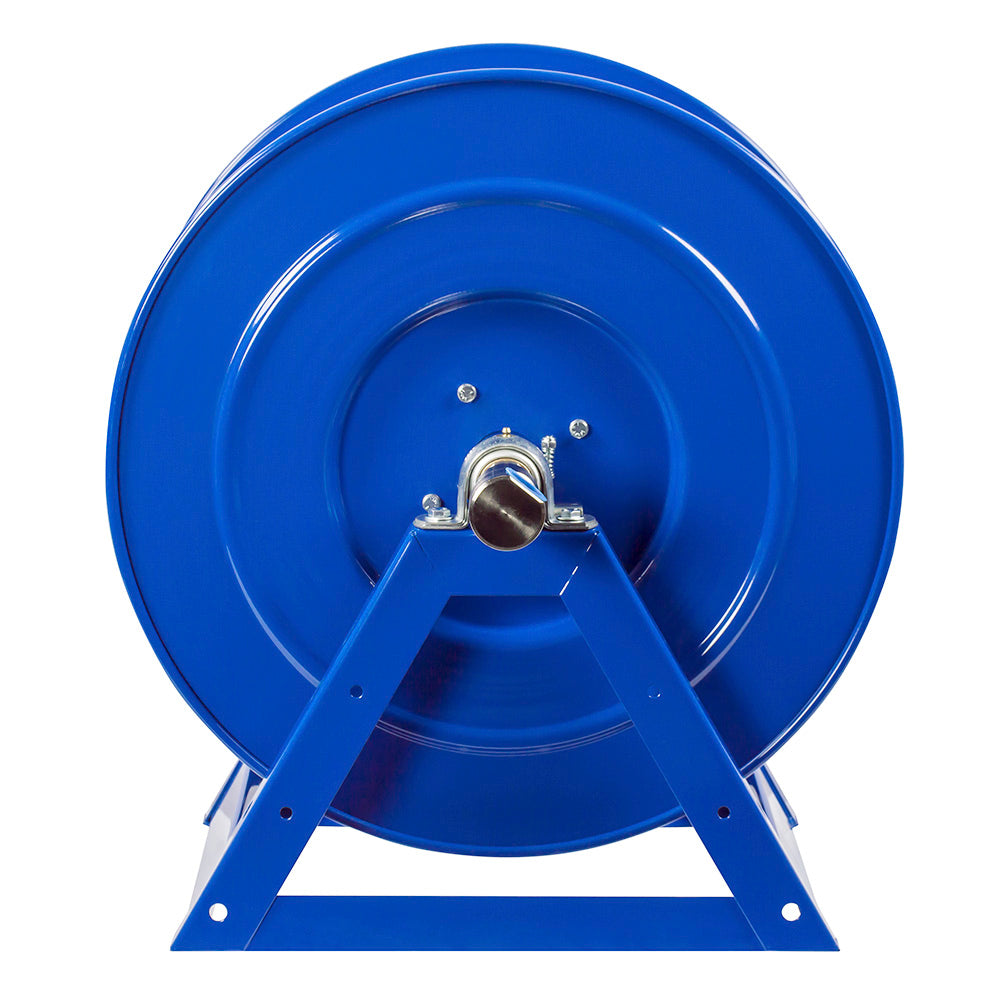

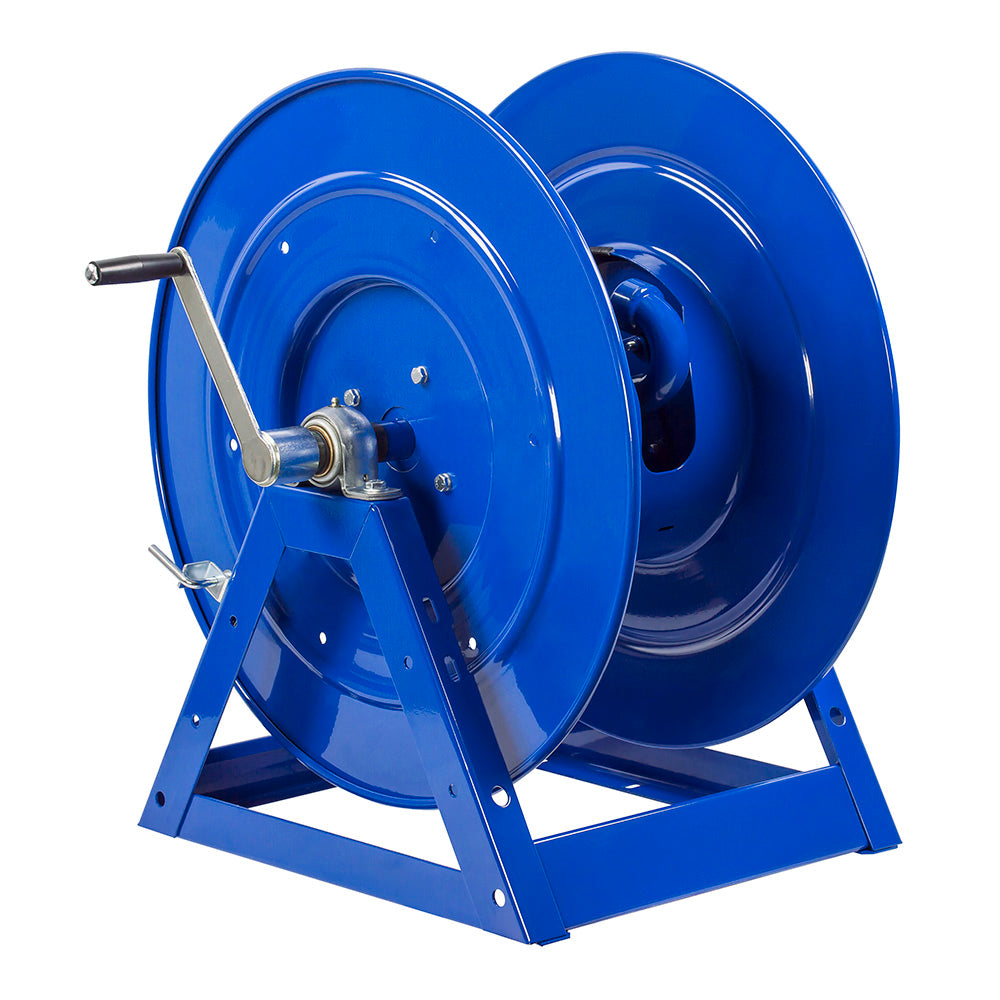

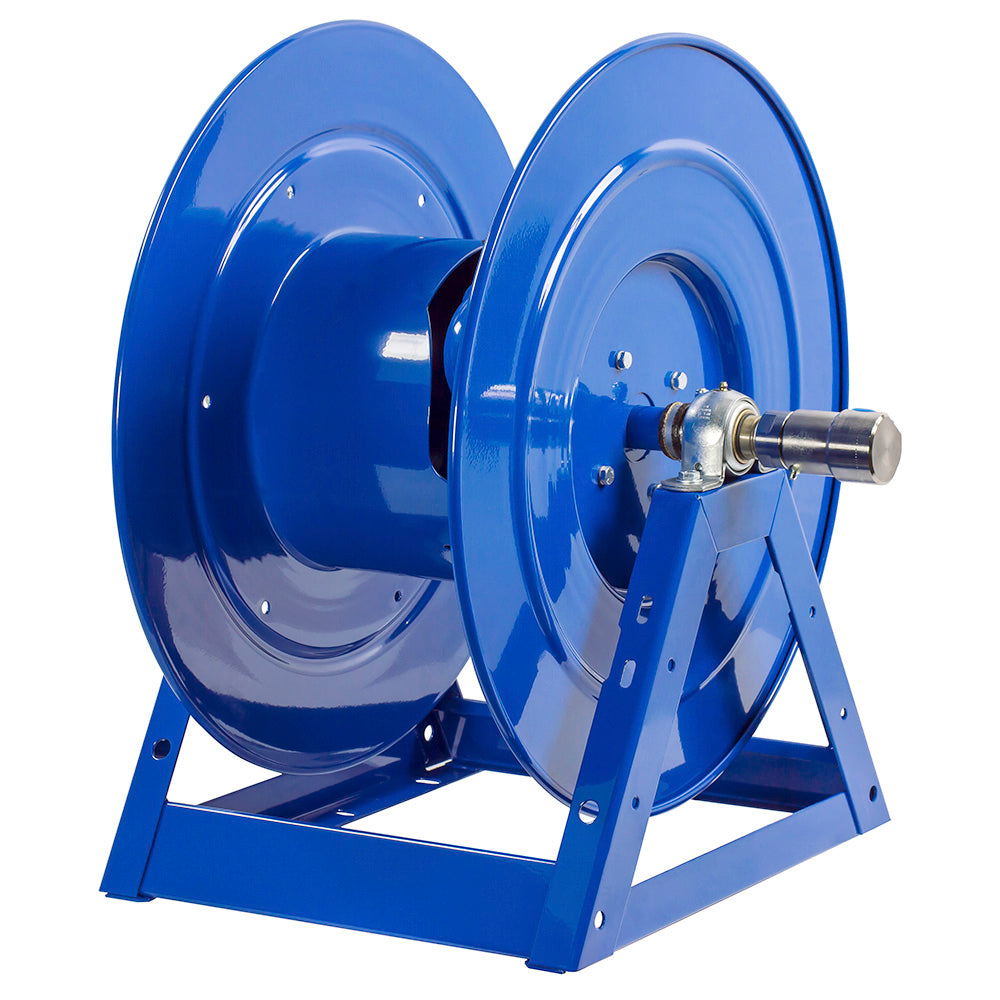

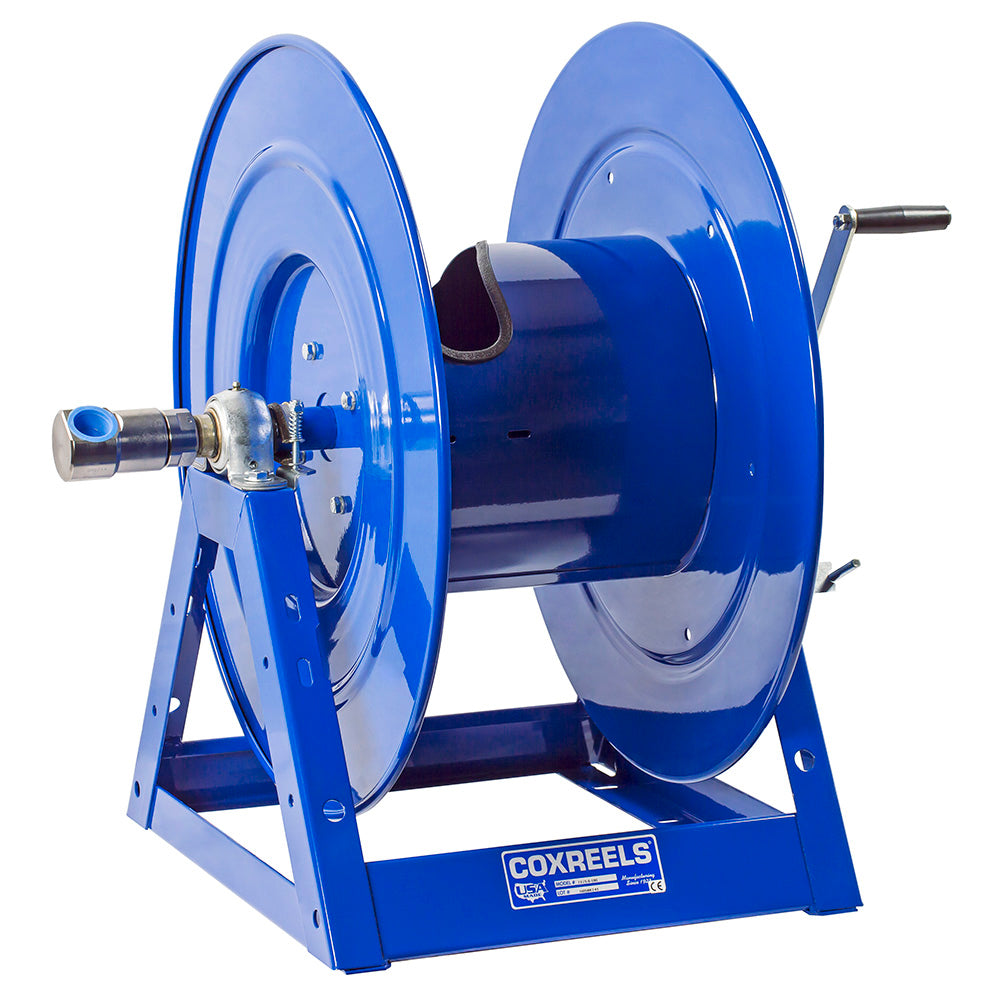

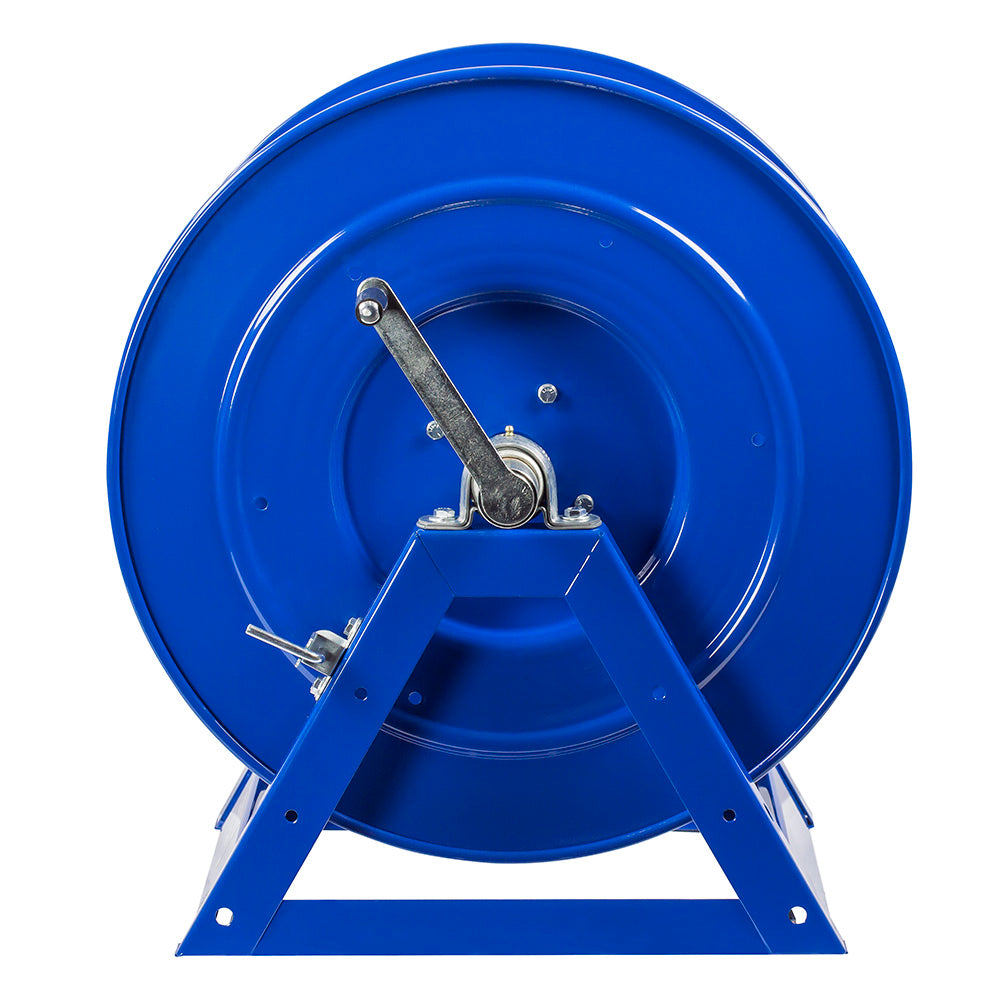

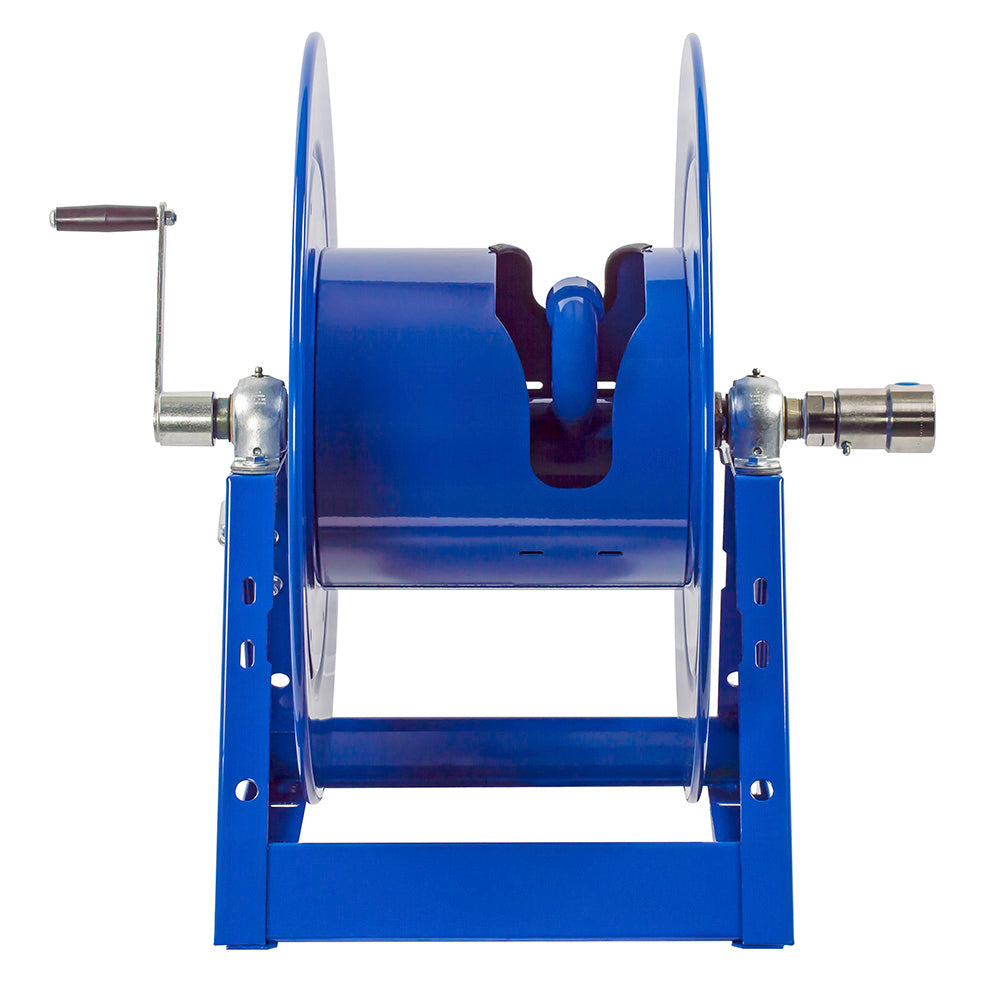

Hand Crank Hose Reel 1 Inch x 150 Ft 3000 PSI Less Hose - Coxreels 1175-6-150-C

Coxreels^® 1175 Series — 1175 Series hand crank and motorized hose reels, like the 1125 Series, is an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded "A" frame base, low profile outlet riser open drum slot design for smooth even hose wraps around the drum.

Model 1175-6-150-C: Bevel Geared Crank Rewind Hose Reel: 1" I.D., 150' hose capacity, less hose, 3000 PSI

FEATURES

• Nickel plated steel 90° full-flow NPT swivel inlet.
• Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
• Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
• Long-handled locking pin to secure reel from rotation during transport or storage.
• Solid steel direct hand crank with smooth round handle.
• Also available in motorized options.
• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.

• SWIVEL - Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
• OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
• "A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
• PILLOW BLOCK BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.
