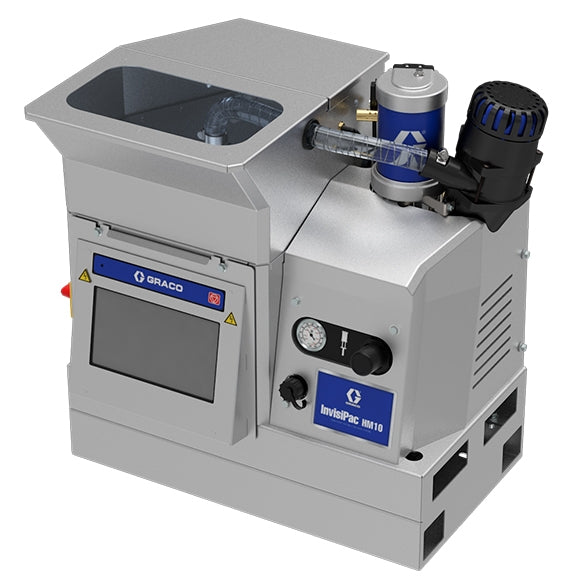

With a 10 pound (4.5 kilogram) per hour melt rate, this hot melt system brings profitability, reliability and safety to case and carton sealing.
Tank-Free™ melter dispenses adhesive at low flow, low volume rates for case and carton sealing, labeling, side seaming, and applications involving small packaging.
Features
- Four channel dispense accommodates four Plug-Free™ applicators and four heated hoses.
- On-board hopper holds 20 pounds (9 kilograms) of hot melt pellets and is part of the unit, saving space at the end of any packaging line.
- The hopper is unheated and has a clear lid, preventing burn injuries and helping operators easily see when to add more hot melt adhesive pellets.
- Touchscreen with intuitive user interface makes it easy for packaging line operators and maintenance technicians to monitor and control temperature, flow and material use.
- 10-minute start-up time saves energy and reduces waste.
- Melt-on-demand system conserves adhesive and drastically reduces downtime due to charring.
- First-in-first-out (FIFO) melter keeps adhesive at the right temperature and viscosity for dispense, preventing thermal shock and charring.
Specifications
| Air Inlet Size (in) | 0.375 |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 32 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 4 |
| Component Type | Single Component |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 400 |
| Maximum Working Pressure (psi) | 1200 |
| Model | InvisiPac |
| Overall Depth (in) | 13 |
| Overall Height (in) | 23.5 |
| Phase | 3 |
| Power Source | Electric |
| Power Type | Electric |
| Pump Ratio | 12:1 |
| Type | Dispensing System |
| Voltage (V ac) | 200-240 |
| Wetted Material | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
| Air Inlet Size (in) | 0.375 |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 32 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 4 |
| Component Type | Single Component |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 204 |
| Maximum Working Pressure (bar) | 80 |
| Maximum Working Pressure (kPa) | 8000 |
| Model | InvisiPac |
| Phase | 3 |
| Power Source | Electric |
| Power Type | Electric |
| Pump Ratio | 12:1 |
| Type | Dispensing System |
| Voltage (V ac) | 200-240 |
| Wetted Material | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
