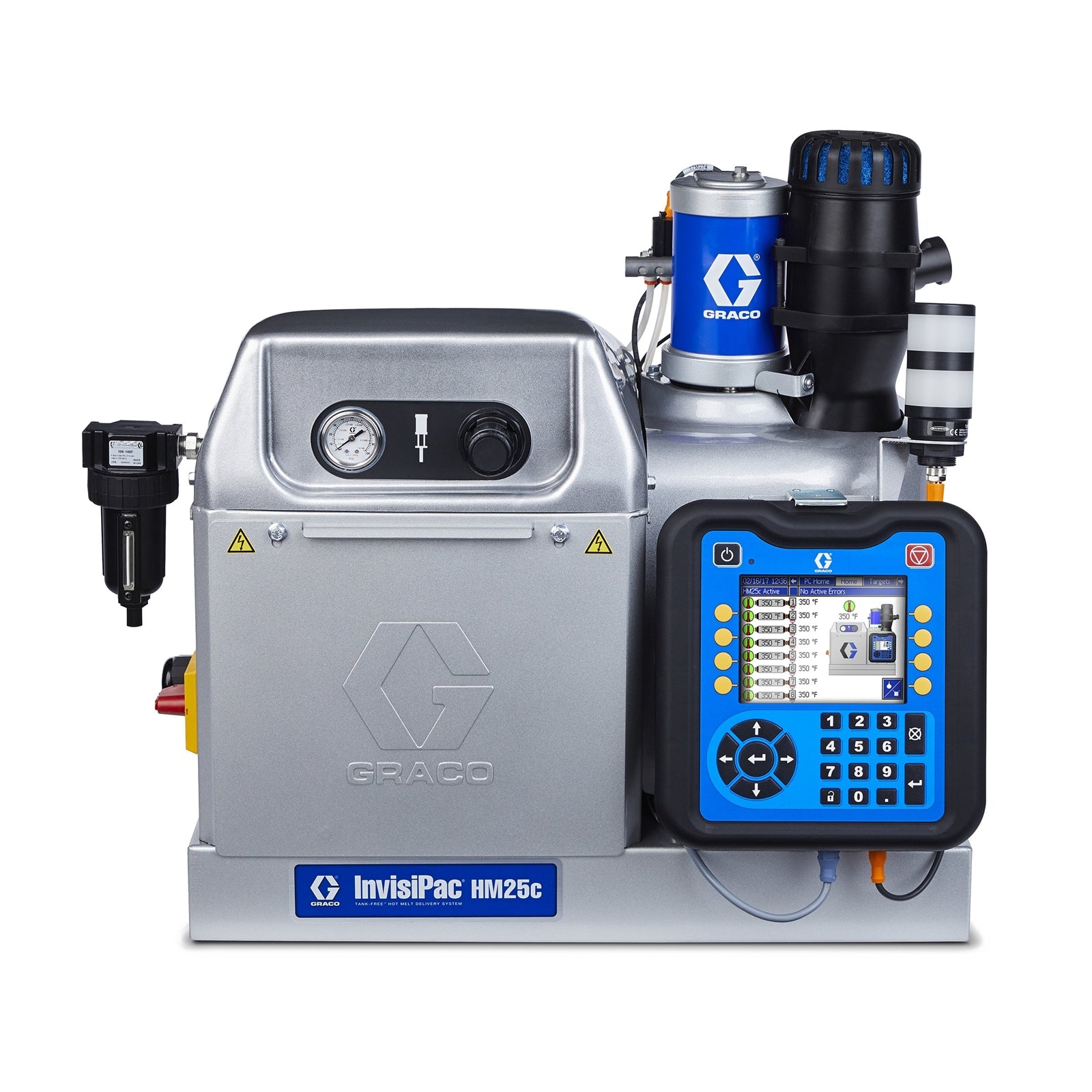

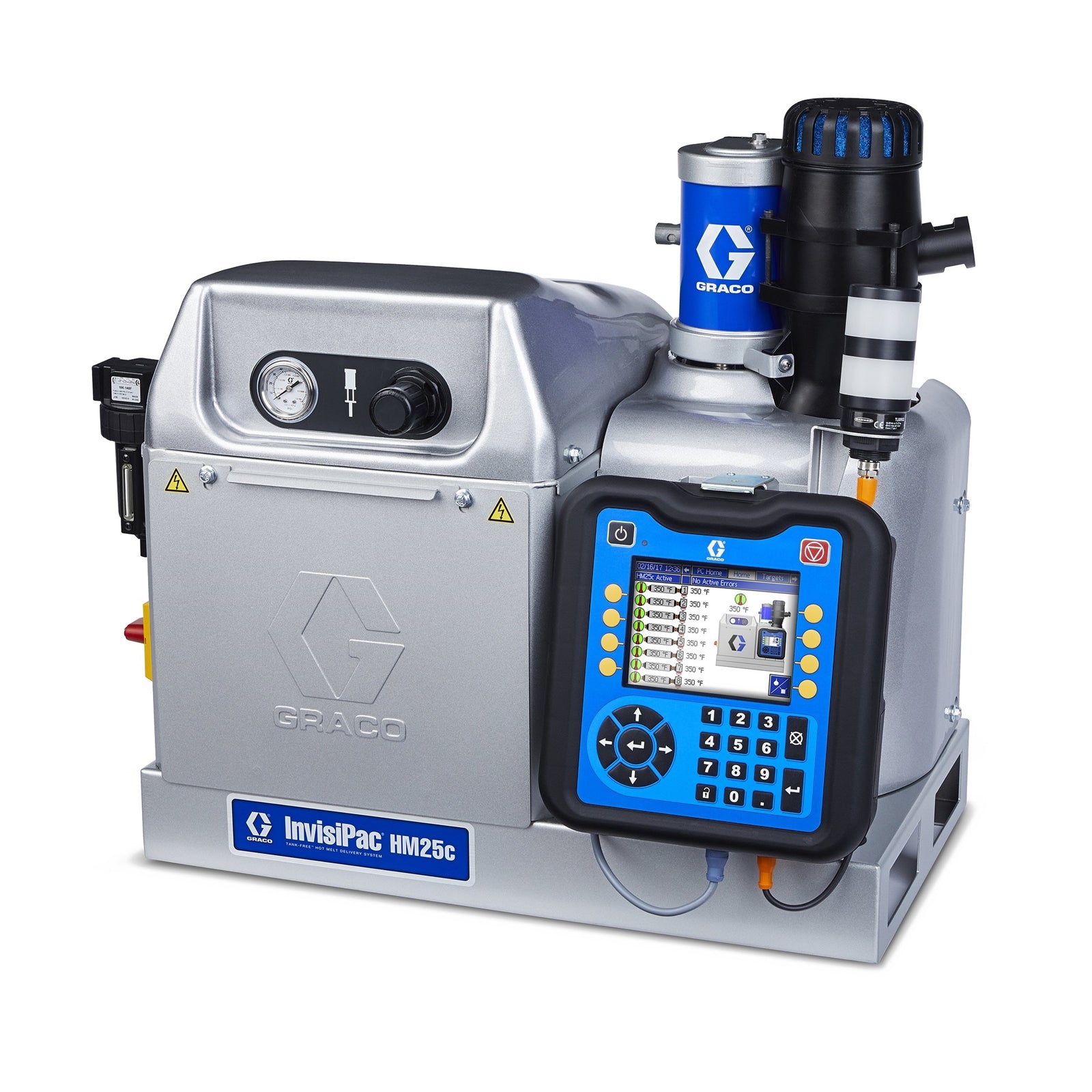

This compact unit has a hot melt rate of 25 pounds (11.3 kilograms) per hour. Its melt-on-demand adhesive dispense technology easily integrates into middle to high volume packaging lines.
Tank-Free™ system delivers hot melt adhesive on-demand for case and carton sealing applications.
Features
- Melter accommodates output dispense of 25 lb (11.3 kg) or less per hour.
- Four channel dispense accommodates four Plug-Free™ applicators and four heated hoses.
- Pattern controller converts dispense from a solid bead to a stitched bead with the push of a button, saving time and money.
- First-in-first-out (FIFO) process guarantees that the first adhesive melted is the first dispensed, eliminating thermal shocking and adhesive char.
- Patented self-learning feed algorithm automatically feeds adhesive pellets from the hopper into the melter without operator intervention. No direct contact with hot molten adhesive means no more safety hazards, such as burning, toxic fumes and slippage.
- Robust reporting capabilities deliver the data needed to improve productivity, decrease costs, and minimize downtime of case and carton sealing.
- High performance with lasting components
- Consistent adhesive viscosity
- No degraded material
- Little to no waste
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 32 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 4 |
| Component Type | Single Component |
| Footprint (in) | 25.4 x 16.5 x 23.1 |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (lb/hr) | 96 |
| Maximum Fluid Temperature (°F) | 400 |
| Maximum Hose Length (ft) | 30 |
| Maximum Working Pressure (MPa) | 8.3 |
| Maximum Working Pressure (psi) | 1200 |
| Melt Rate (lb/hr) | 25 |
| Model | InvisiPac |
| Overall Depth (in) | 16.5 |
| Overall Height (in) | 49.3 |
| Overall Width (in) | 25.4 |
| Pattern Controller | Yes |
| Power Source | Electric |
| Power Type | Electric |
| Pump | Pneumatic piston, 12:1 |
| Time to Temperature | Less than 10 minutes |
| Transformer | No |
| Type | Dispensing System |
| Voltage (V ac) | 200-240, 350-415 |
| Weight (lb) | 86 |
| Wetted Material | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Hot Melt |
| Amperage (A) | 32 |
| Application | Bonding |
| Applicator Type | Automatic |
| Channels | 4 |
| Component Type | Single Component |
| Footprint (in) | 25.4 x 16.5 x 23.1 |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (kg/hr) | 43.5 |
| Maximum Fluid Temperature (°C) | 204 |
| Maximum Hose Length (m) | 9.14 |
| Maximum Working Pressure (MPa) | 8.3 |
| Maximum Working Pressure (bar) | 83 |
| Maximum Working Pressure (kPa) | 8300 |
| Melt Rate (kg/hr) | 11.3 |
| Model | InvisiPac |
| Overall Depth (cm) | 41.9 |
| Overall Depth (mm) | 419 |
| Overall Height (cm) | 125.2 |
| Overall Height (mm) | 1252 |
| Overall Width (cm) | 64.5 |
| Overall Width (mm) | 645 |
| Pattern Controller | Yes |
| Power Source | Electric |
| Power Type | Electric |
| Pump | Pneumatic piston, 12:1 |
| Time to Temperature | Less than 10 minutes |
| Transformer | No |
| Type | Dispensing System |
| Voltage (V ac) | 200-240, 350-415 |
| Weight (kg) | 39 |
| Wetted Material | Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings |
