Jet Tools - DC-1100VX-5M Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit

Jet Tools - DC-1100VX-5M Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit

Regular price
$749.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 708658K Description

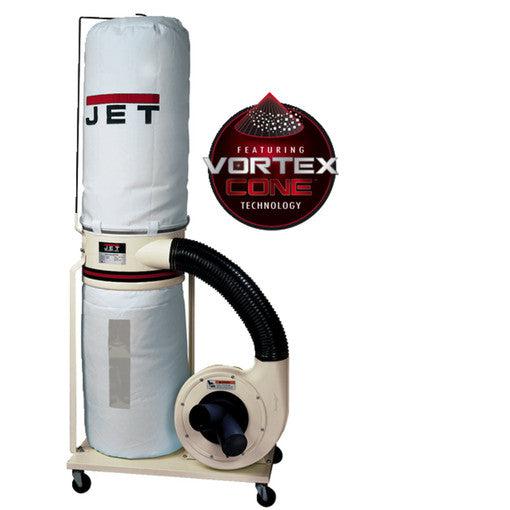

    The JET DC-1100VX-5M features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

    Jet 708658K Features

    • Vortex Cone improves chip separation and collector bag packing efficiency
    • Eliminates premature filter clogging for sustained performance
    • Single-stage design for economical and quiet operation
    • Industrial controls designed for years of trouble-free use
    • Quick-connect collection bags with elastic band for fast, easy installation and removal
    • High air velocity (CFM) design stands up to any competitive specifications
    • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
    • Includes four casters for maneuverability and total portability

    Jet 708658K Specifications

    Style (Type) Bag
    Prewired Voltage (V.) 115
    Motor Power (HP) 1-1/2
    1-Hose Connection Diameter (In.) 6
    Collection Bag Length (In.) 30
    Velocity @ 4" (FPM) 12,571
    Filter Bag/Canister Length (In.) 32
    Impeller Diameter (In.) 11
    Motor Voltage (V.) 115/230
    Air Flow @ 4" (CFM) 1100
    Motor Phase (PH) 1
    Collection Bag Capacity (Cu. Ft.) 5-3/10
    Impeller Material Steel
    Number of Air Inlets 1 at 6", 2 at 4"
    Static Pressure (Wc.) 10-1/2
    Sound Rating (Db.) 70 - 80
    Bag Diameter (In.) 20
    2-Hoses Connection Diameter (In.) 4
    Motor Amps 11/5.5

    ;
