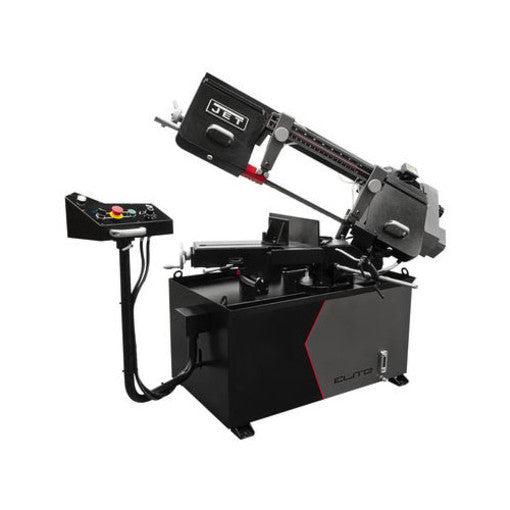

Jet Tools - Elite 8x13 Mitering Bandsaw

Jet Tools - Elite 8x13 Mitering Bandsaw

Regular price
$7,939.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 891020 Description

    A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

    Jet 891020 Includes

    • (1) EHB-8VSM, 8 x 13 Variable Speed Mitering Bandsaw

    Jet 891020 Features

    • The Elite swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions.
    • Mitering allows for angle cuts up to 45° right
    • For added safety, the EHB-8VSM Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
    • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in.
    • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
    • Number of Spindle Speeds: Variable speed drivetrain allows operator to fine tune the blade speed fast and easily
    • Integrated pressurized wash hose for easy machine cleaning
    • Quick positioning vise for clamping of materials
    • Large handwheel with blade tensioning gauge acurately measures blade pressure
    • Automatic blade shut off switch stops the sawing process

    Jet 891020 Specifications

    Blade Length (In.) 114-1/2
    Head Movement (Deg.) 45
    Rectangle at 45 Degrees (In.) 8 x 8 or 2 x 9-1/2
    Rectangle at 90 Degrees (In.) 13 x 5-1/4 / 13-1/4 x 2
    Square at 45 Degrees (In.) 8 x 8
    Drive Variable Speed
    Blade Speeds (SFPM) 82 - 310
    Cutting Capacity (W x D) (In.) 8 x 13
    Weight (Lbs.) 924
    Round at 90 Degrees (In.) 8
    Overall Dimensions (in) 62-1/2 x 23 x 48
    Vise Swivels (Deg.) 45
    Motor (HP) 1-1/2 HP, 115/230V, 1Ph
    Blade Wheel Diameter (In.) 11-5/8
    Blade Wheel Diameter (In.) 1 x .035 x 114-1/2
    Round at 45 Degrees (In.) 8
    Bed Height (In.) 30
    Square at 90 Degrees (In.) 8 x 8
    Amperage Draw @ 115V 1Ph 23
    Amperage Draw @ 230V 1Ph 11

    ;
