Jet Tools - J-4103, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

Jet Tools - J-4103, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

Regular price
$2,549.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 577000 Description

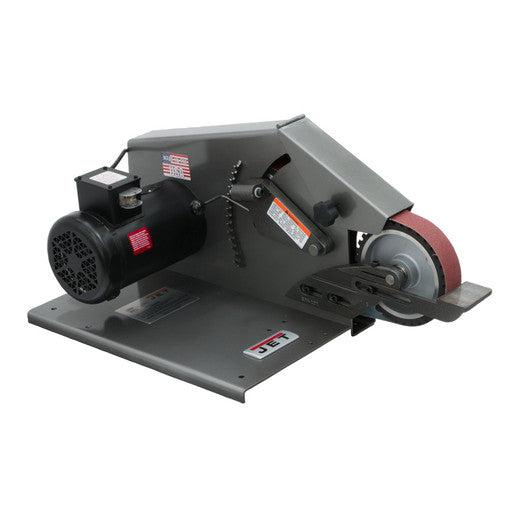

    The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder, Models J-4103 and J-4126AC, grind, deburr and chamfer with equal proficiency both internal/external on parts large and small parts. Accessories allow the user to convert the Square Wheel Belt Grinder for polishing or buffing finished parts

    Jet 577000 Features

    • MADE IN THE U.S.A.
    • Puts a satin finish on steel, iron or aluminum
    • Grind difficult to reach areas with the 3" X 2" or 1-1/2" X 2" diameter contact wheels
    • Yoke surface conforms to shape of the surface to produce an even, smooth finish
    • For grinding, and refinishing cylindrical shapes.
    • Performs intricate contouring or internal finishing on uniquely shaped parts
    • Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting

    Jet 577000 Specifications

    Style (Type) Belt
    Weight (Lbs.) 163
    Belt Speed (SFPM) 4,600
    Contact Wheel Size (W x L) (In.) 8 x 2, 3 x 2, 1-1/2 x 2
    Belt Size (W x L) (In.) 2 x 72
    Motor (HP) 1 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.) 17 x 31 x 17

    ;
