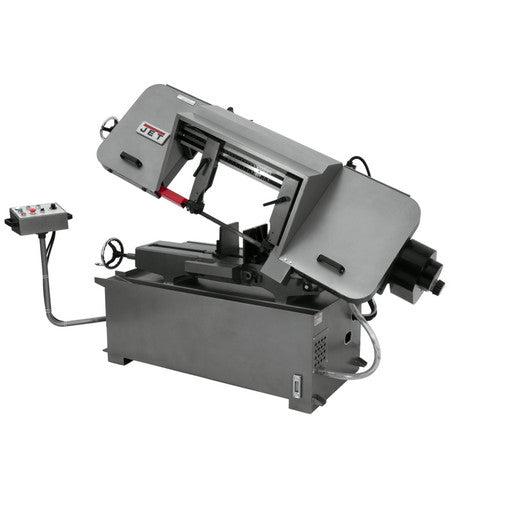

Jet Tools - J-7060, 12" x 20" Semi-Automatic Horizontal Bandsaw

Jet Tools - J-7060, 12" x 20" Semi-Automatic Horizontal Bandsaw

Regular price
$14,289.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 414476 Description

    This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.

    Jet 414476 Features

    • Swing away control panel houses major saw controls
    • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
    • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
    • Saw head raises hydraulically after each cut
    • Variable speed drive system allows the operator to easily fine tune the blade speed
    • Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
    • Cast Iron blade wheels
    • Patented 3-Jaw vise with rapid action moveable jaw for faster set up
    • Coolant system
    • Adjustable material stop

    Jet 414476 Specifications

    Round at 90 Degrees (In.) 12
    Blade Size (In.) 1 x .035 x 156
    Drive Variable Speed
    Blade Speeds (SFPM) 82 - 262
    Round at 45 Degrees (In.) 12
    Rectangle at 90 Degrees (In.) 12 x 20
    Blade Wheel Diameter (In.) 17
    Bed Height (In.) 26-1/4
    Cutting Capacity (W x D) (In.) 12 x 20
    Rectangle at 45 Degrees (In.) 12 x 12
    Weight (Lbs.) 1,210
    Vise Swivels (Deg.) 45°
    Blade Length (In.) 156
    Motor (HP) 3 HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.) 87 x 37-1/2 x 53

    ;
