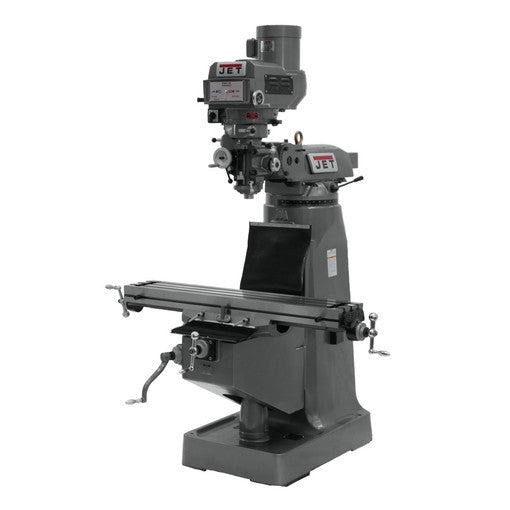

Jet Tools - JTM-1 Mill With 3-Axis Newall NMS300 DRO (Knee)

Jet Tools - JTM-1 Mill With 3-Axis Newall NMS300 DRO (Knee)

Regular price
$13,889.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 692196 Description

    Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

    Jet 692196 Features

    • Certified Meehanite® Castings
    • Precision bored and honed milling head
    • Large diameter quill is chromed
    • High precision Class 7 spindle bearings
    • Spindle head is internally cooled
    • Satin chrome finished dials
    • Heavy duty splined motor drive
    • One piece quill pinion and shaft
    • Three stage power downfeed with automatic stop
    • Heavy duty spindle brake

    Jet 692196 Specifications

    Spindle Travel 5"
    Table Cross Travel 12-1/2"
    T-Slot Centers 2-1/2"
    Min. Distance Spindle to Column 4-1/2"
    Quill Down Feed Rates (IPR) .0015 - .003 - .006
    Work Table Weight Capacity 550 lbs
    Quill Diameter 3-3/8"
    Collet Capacity 1/8 - 7/8
    Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
    Number of Spindle Speeds 16
    Range of Spindle Speeds 80 - 5,440 RPM
    Head Movement 90° R & L, 45° F & B
    Motor 2 HP, 230V, 3Ph
    Style Step Pulley R8
    Table Size (L x W) (In.) 9 x 42
    Max. Distance Spindle to Column 19"
    T-Slots Number and Size 3 and 5/8"
    Digital Readout Newall DP500
    Travel of Knee 14-1/2"
    Travel of Ram 13-3/8"
    Max Distance Spindle to Table 17-1/2"
    Table Longitudinal Travel 23-7/8"
    Table Longitudinal Travel With Powerfeed 20-2/7"
    Spindle Taper (In. x TPI) R-8

    ;
