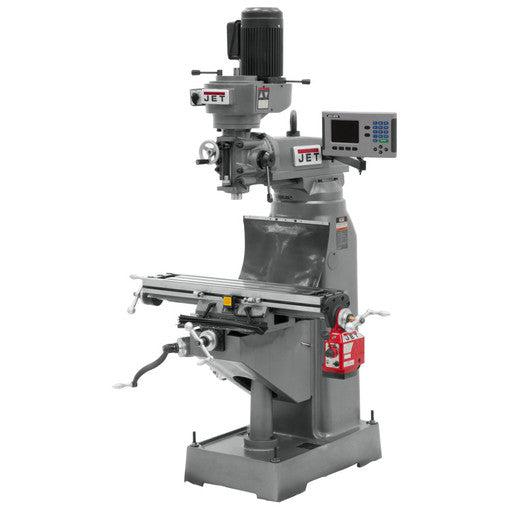

Jet Tools - JTM-4VS-1 Mill With X and Y-Axis Powerfeeds

Jet Tools - JTM-4VS-1 Mill With X and Y-Axis Powerfeeds

Regular price
$14,939.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 690197 Description

    Constructed using the Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty

    Jet 690197 Features

    • Meehanite Castings
    • Precision bored and honed milling head
    • Large diameter quill is chromed
    • High precision Class 7 spindle bearings
    • Chrome plated motor shaft with lower bearing support
    • Spindle head is internally cooled
    • Heavy duty splined motor drive
    • One piece quill pinion and shaft
    • Three stage power downfeed with automatic stop
    • Heavy duty spindle brake

    Jet 690197 Specifications

    Spindle Travel (In.) 5
    Table Cross Travel (In.) 12
    T-Slot Centers (In.) 2-1/2
    Distance Spindle to Column (Min.) (In.) 4-1/2
    Quill Down Feed Rates (IPR) .0015 - .003 - .006
    Work Table Weight Capacity (Lbs.) 660
    Quill Diameter (In.) 3-3/8
    Collet Capacity 1/8 - 7/8
    Overall Dimensions (L x W x H) (In.) 66 x 63 x 85
    Number of Spindle Speeds Variable
    Range of Spindle Speeds (RPM) 60 - 4,200
    Head Movement (Deg.) 90° R & L, 45° F & B
    Weight (Lbs.) 2,420
    Motor (HP) 2 HP, 115/230V, 1Ph
    Style (Type) Variable Speed R8
    Table Size (L x W) (In.) 9 x 49
    Distance Spindle to Column (Max.) (In.) 19
    T-Slots Number and Size (In.) 3 and 5/8
    Powerfeed X and Y-Axis

    ;
