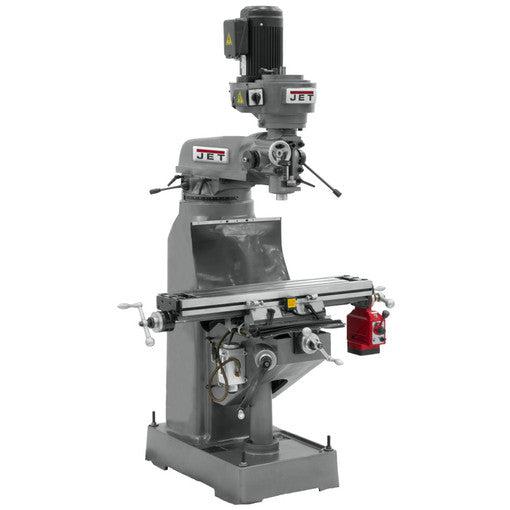

Jet Tools - JVM-836-3 Mill With X-Axis Powerfeed

Jet Tools - JVM-836-3 Mill With X-Axis Powerfeed

Regular price
$10,479.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 690174 Description

    The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty

    Jet 690174 Features

    • Precision bored and honed milling head
    • Large diameter quill is chromed
    • High precision spindle bearings
    • Over 10” of front to back ram travel
    • Locks on all movable surfaces
    • Hardened and ground precision table
    • Head tilts left or right
    • Graduated scale on column
    • Precision ground dovetail ways
    • One shot lubrication system

    Jet 690174 Specifications

    Spindle Travel (In.) 5
    Table Cross Travel (In.) 9-1/2
    T-Slot Centers (In.) 2-1/2
    Distance Spindle to Column (Min.) (In.) 5-1/4
    Work Table Weight Capacity (Lbs.) 500
    Quill Diameter (In.) 3-3/8
    Collet Capacity 1/8 - 7/8
    Overall Dimensions (L x W x H) (In.) 55 x 52 x 78
    Number of Spindle Speeds 10
    Range of Spindle Speeds (RPM) 120 - 1,550
    Head Movement (Deg.) 90 R & L
    Weight (Lbs.) 1,610
    Motor (HP) 1-1/2 HP, 230V Only, 3Ph
    Style (Type) Step Pulley R8
    Table Size (L x W) (In.) 7-7/8 x 35-3/4
    Distance Spindle to Column (Max.) (In.) 15-3/4
    T-Slots Number and Size (In.) 3 and 5/8
    Powerfeed X-Axis
    Spindle Taper (In. x TPI) R-8

    ;
