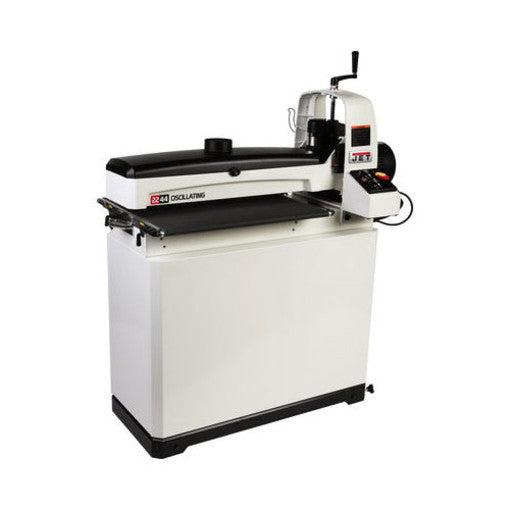

Jet Tools - JWDS-2244OSC Oscillating Drum Sander
Jet Tools - JWDS-2244OSC Oscillating Drum Sander
Jet Tools - JWDS-2244OSC Oscillating Drum Sander
Jet Tools - JWDS-2244OSC Oscillating Drum Sander

Jet Tools - JWDS-2244OSC Oscillating Drum Sander

Regular price
$2,999.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 723544OSCK Description

    The newly re-designed 2244 Oscillating Drum Sander from JET has an exclusive oscillating feature that helps create the best sanding finish with the least amount of dust. When in the oscillating mode, the sanding drum head oscillates from left to right which lowers heat build-up on the sanding belt, reducing loading and burning. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The Sandsmart™ conveyer system continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JET 2244 Oscillating Drum Sander delivers everything you need for an effortless finish.

    Jet 723544OSCK Includes

    • (1) Oscillating Drum Sander

    Jet 723544OSCK Features

    • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
    • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
    • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
    • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
    • Die cast drum carriage design is optimized for rigidity to provide years of consistent quality
    • Precision-flattened reinforced steel conveyor bed
    • Redesigned conveyor system pulls the workpiece through the sander instead of pushing
    • One rotation of the top-position handwheel adjusts the drum height by 1/16"
    • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project

    Jet 723544OSCK Specifications

    Height 54.31
    Length 51.812
    Gross Weight 311
    Net Weight 279
    Volume 43.967
    Width 27
    Recommended Circuit Size (Amps.) 20
    Drum Length (In.) 23
    Minimum Board Thickness (In.) 1/32
    Minimum Board Length (In.) 2-3/8
    Maximum Board Width (In.) 44 (two passes)
    Drum Diameter (In.) 5
    Maximum Board Thickness (In.) 4
    Motor Amps 15
    Motor Phase (PH) 1
    Motor Power (HP) 1-3/4
    Dust Port Outside Diameter (In.) 4
    Conveyor Motor Totally Enclosed DC
    Conveyor Speed (FPM) 0-10
    Motor Voltage (V) 15

    ;
