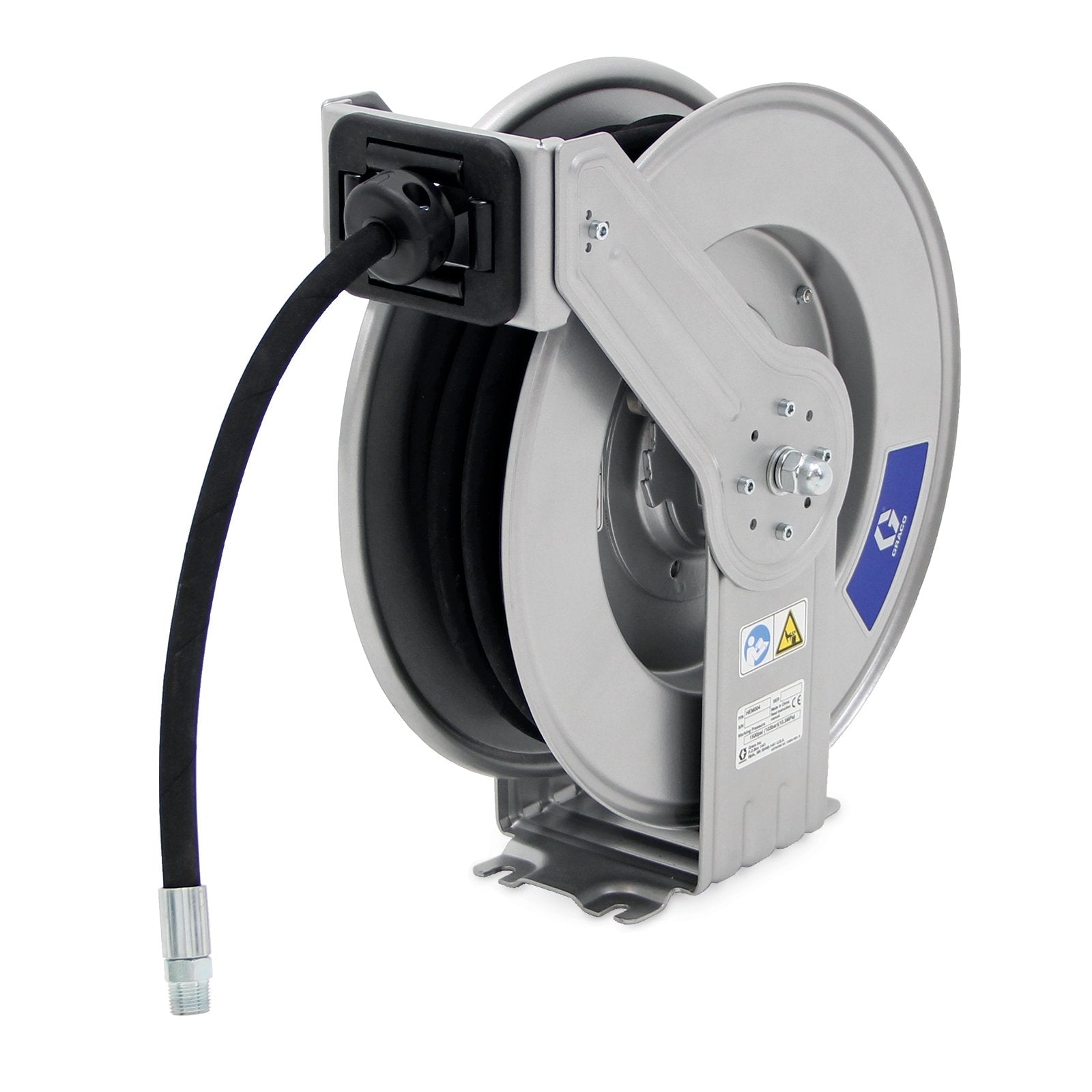

LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT
LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT

LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT

Regular price
$510.00
Sale price
$510.00
Quantity must be 1 or more


Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.

Designed for smaller garages, independent repair facilities and industrial manufacturing environments.

  • Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
  • External Swivel Housing - Quickly access swivel seal for faster repairs.
  • Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
  • Adjustable Arm - Easily change to one of six arm positions to fit your application.
  • Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
UPC Product: 00769946211924
Family Code: FAMLXR
Unit of Measure: EA
Height: 22.125 IN   |  56.198 CM
Length: 20.875 IN   |  53.023 CM
Width: 11.125 IN   |  28.258 CM
Volume: 2.973 FT3   |  .084 M3
Chargeable Weight: 55 LBS  | 24.95 KG

Technical Specifications

Color Grey
Dry Weight (lb) 48
Hose Inside Diameter (in) 1/2
Hose Inside Diameter (mm) 12.7
Hose Length (ft) 50
Hose Length (m) 15
Inlet Size (in) 1/2
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Temperature (°C) 100
Maximum Temperature (°F) 212
Maximum Working Pressure (psi) 1500
Minimum Temperature (°C) -40
Minimum Temperature (°F) -40
Mount Location Truck Mount, Bench Mount
Outlet Size (in) 1/2
Outlet Size (mm) 12.7
Outlet Thread Type NPT
Overall Height (in) 19
Overall Height (mm) 483
Overall Length (in) 17.5
Overall Length (mm) 445
Overall Width (in) 9.4
Overall Width (mm) 239
Wetted Parts Zinc-Plated Steel, Brass, Polyurethane, Nitrile Rubber
Application Oil
Type Spring-Rewind Reel
Recommended Environment Indoor
Frame Type Dual Pedestal
Reel Thread Type NPT
Inlet Thread Gender Male
Outlet Thread Gender Male
Recommended Fluid Type Oil
Hose Reel Type Reel with Hose
Model LDX
includes_hose Yes
