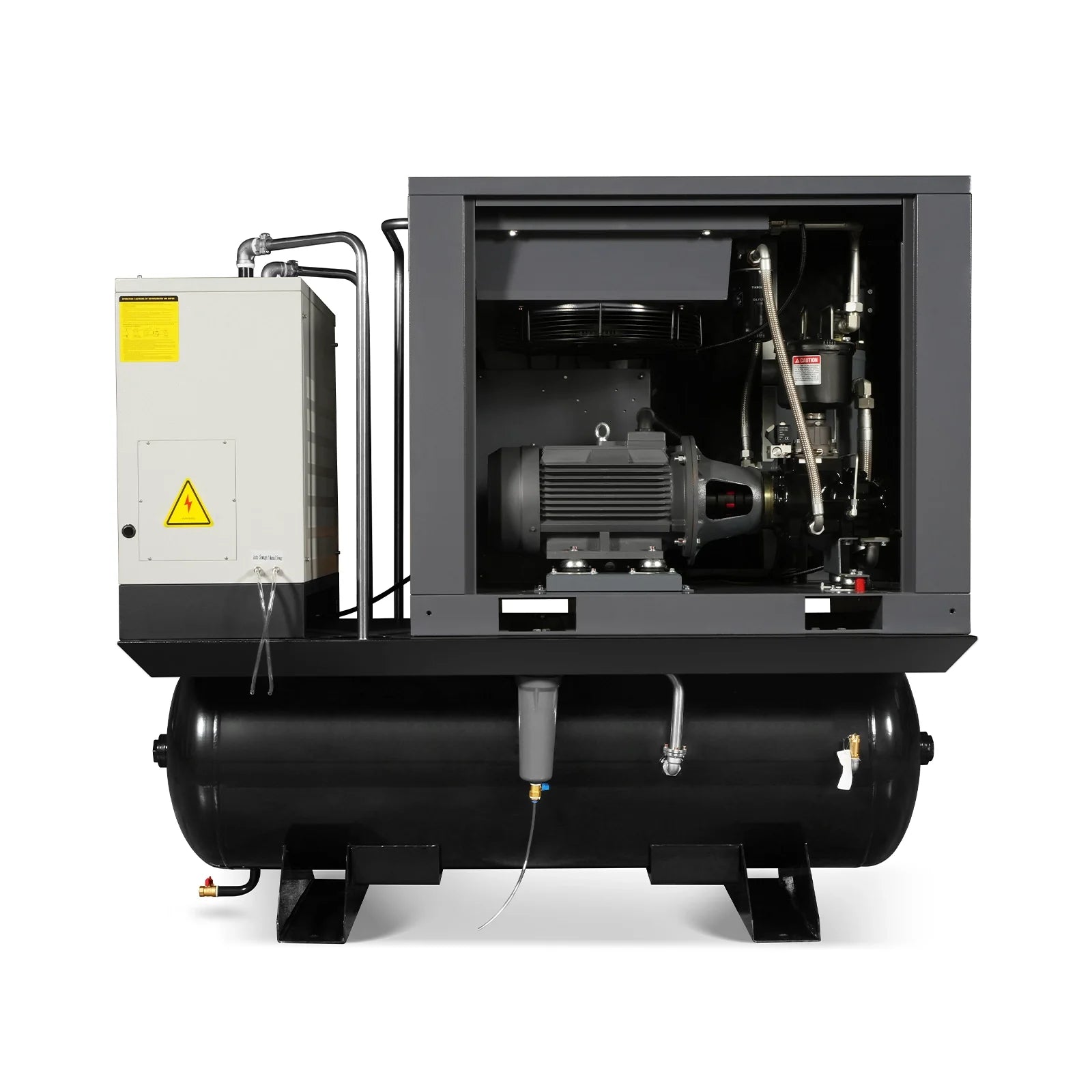

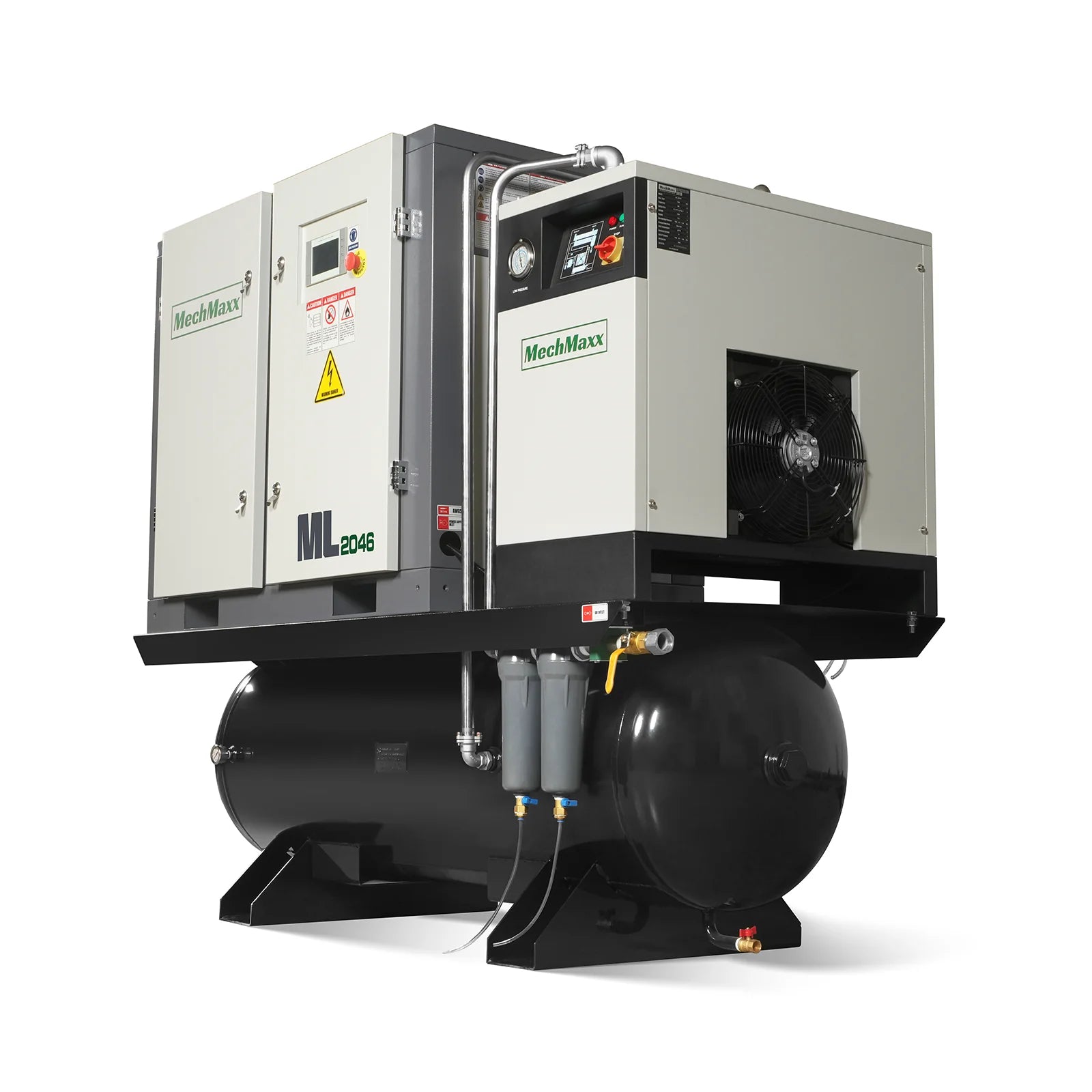

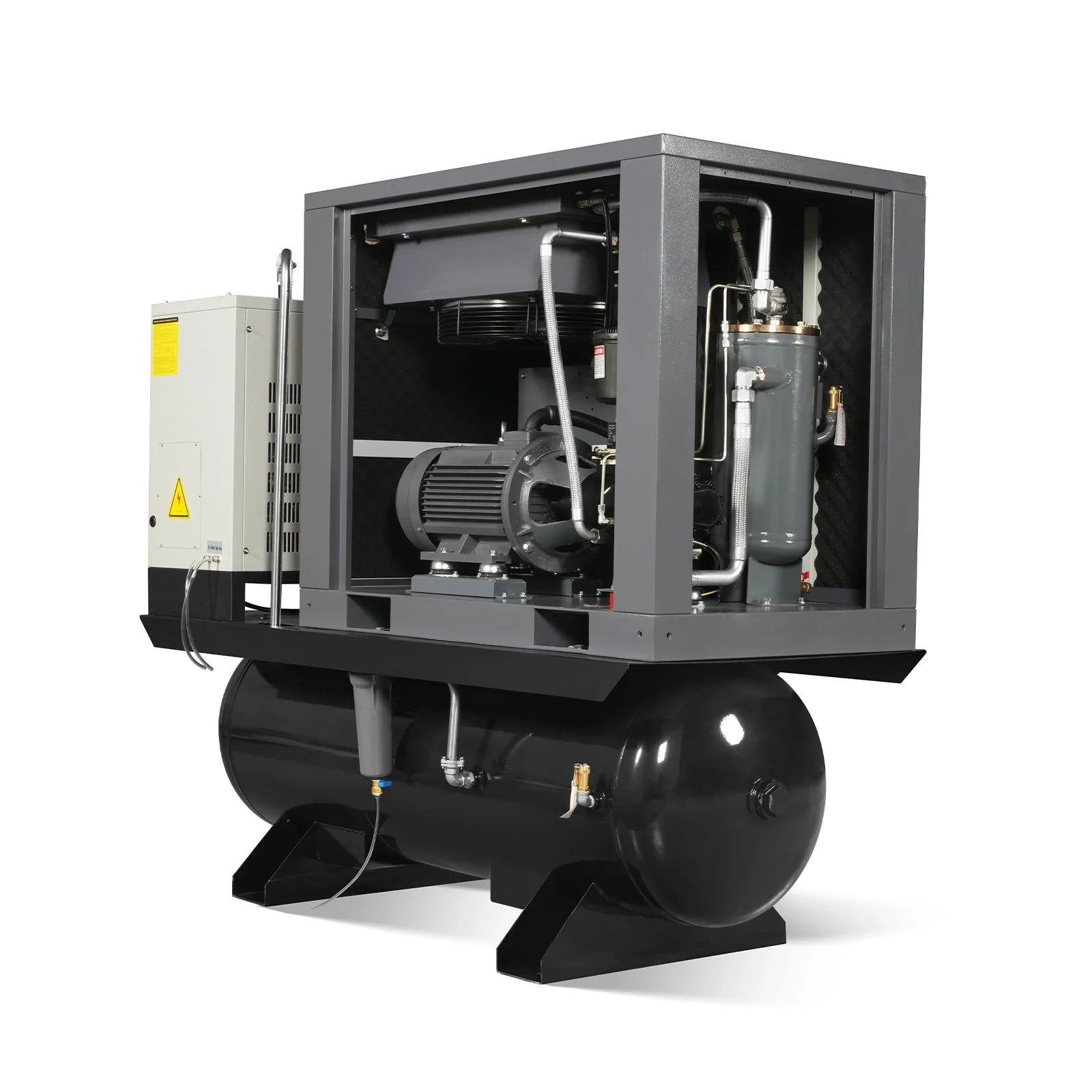

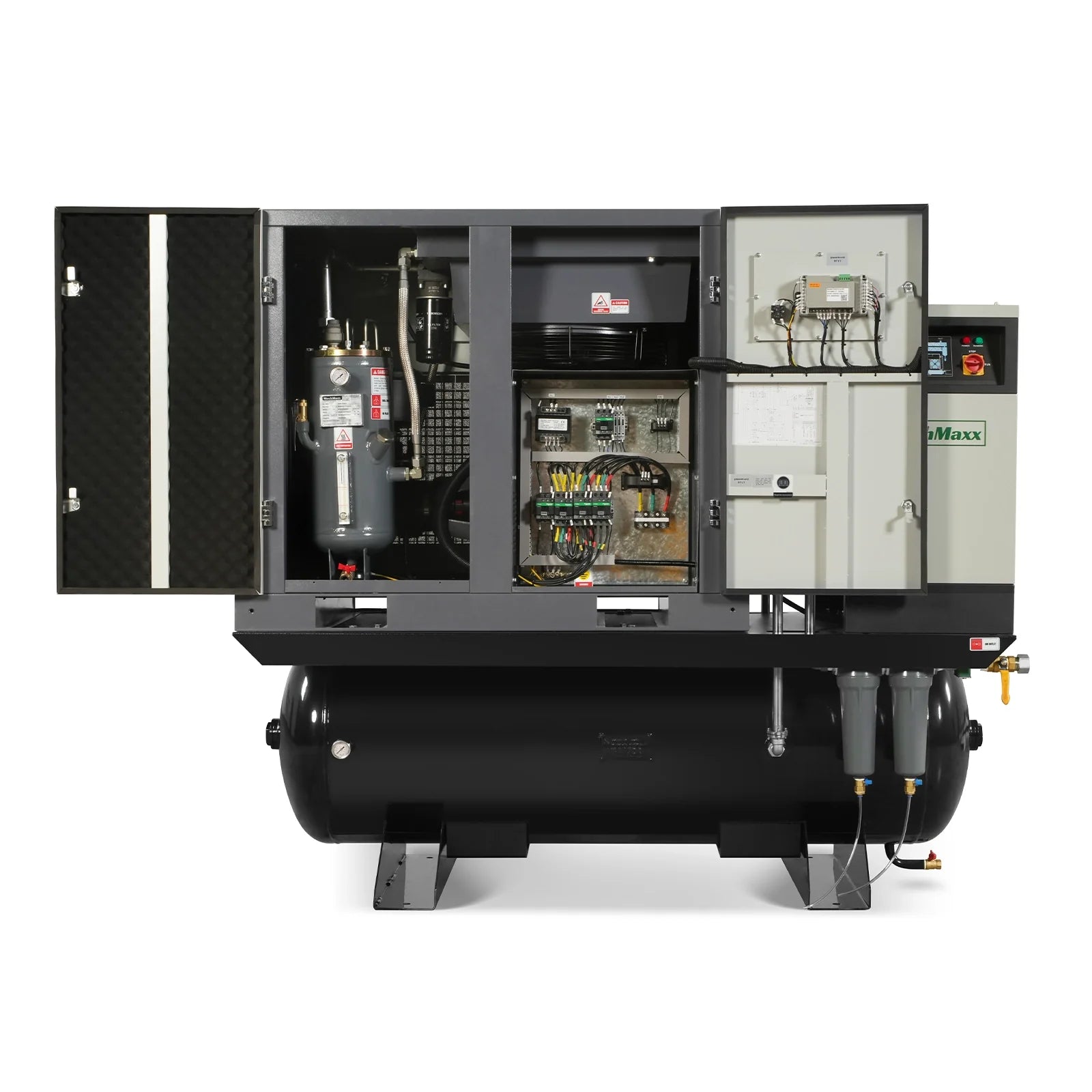

| Air Compressor Information | |
| Voltage | 460V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 78CFM |

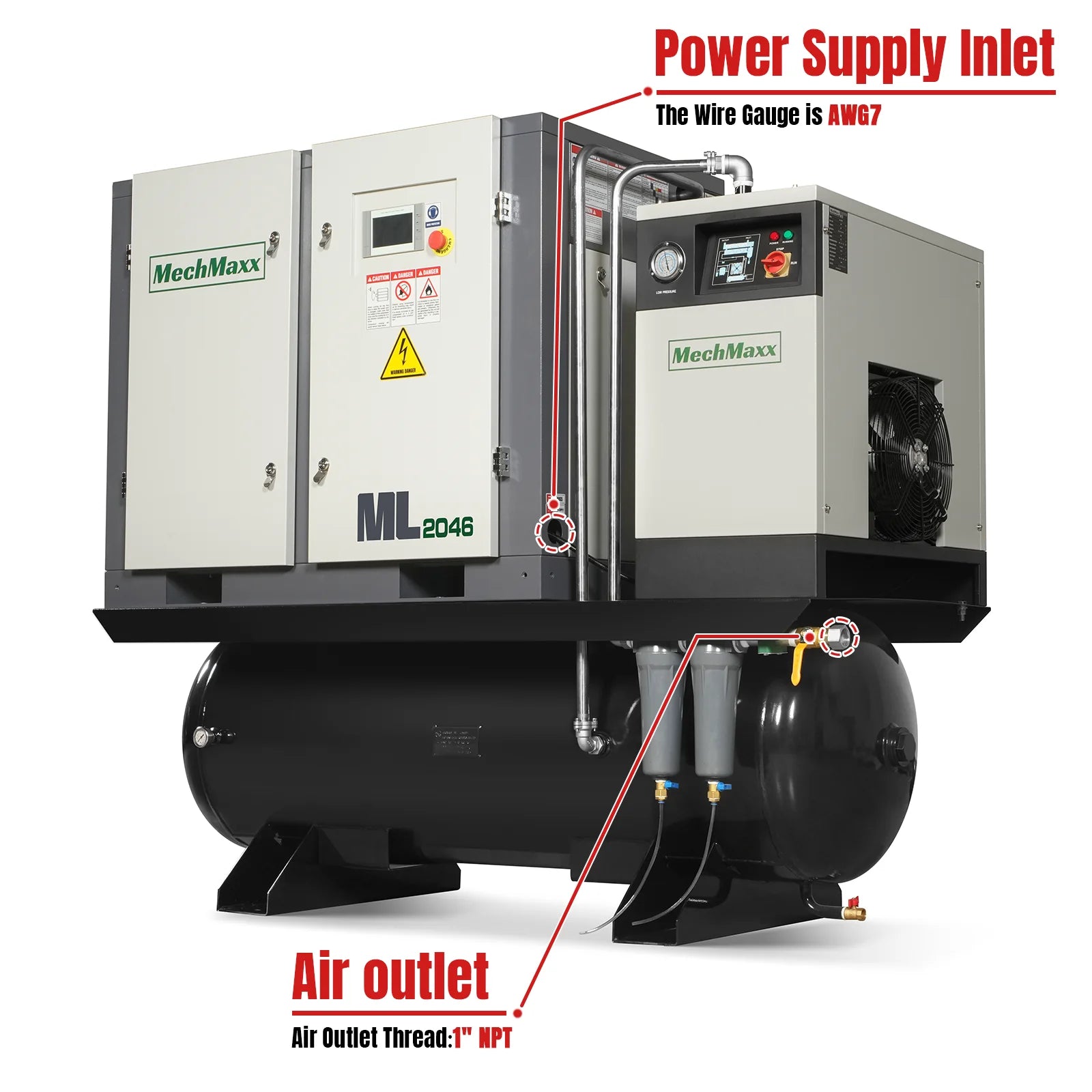

| Wire Gauge | AWG7 |

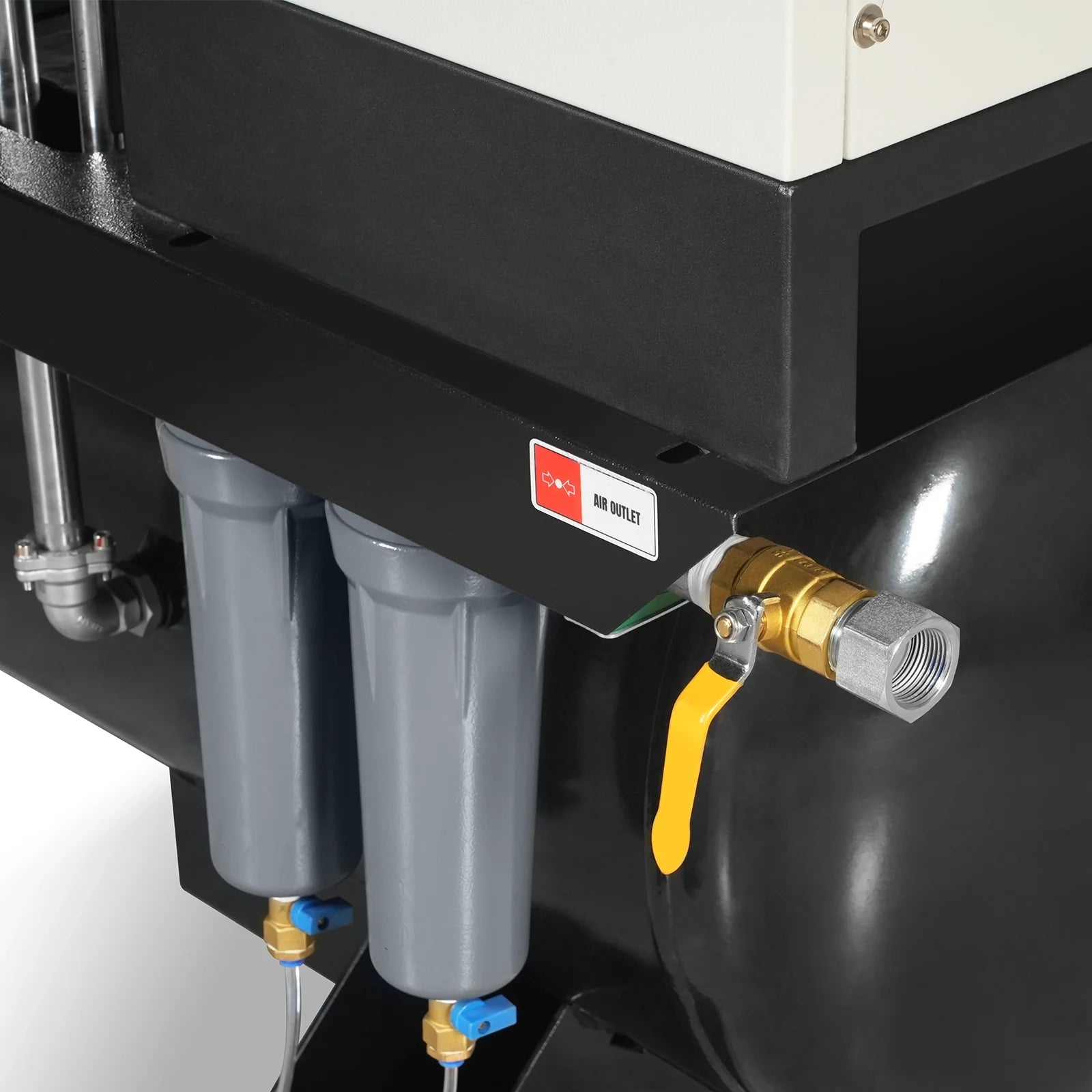

| Air Outlet Thread | 1"NPT |
| Oil Tank Capacity | 2.64Gal (10L) |
| Rated Power | 20HP |
| Starting Method | Star-Delta (Wye-Delta) Start |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 70dba |
| Motor Speed | 3515RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Air Tank & Refrigerated Air Dryer Information | |
| Working Pressure | ≤145PSI/1.0MPa |
| Design Pressure | 145PSI/1.0MPa |
| Max Allowable Working Pressure | 145PSI/1.0MPa |
| Working Temprerature | ≤302℉/150℃ |
| Design Temprerature | 302℉/150℃ |
| Maximum Design Metal Temperature | 17.6℉/-8℃ |
| Air Tank Capacity | 400L / 105.6GAL |
| Air Dryer Capacity Flow | 100CFM |
| Machine Size: | 72.8" x 33.5" x 66.1" |
| Packing Size: | 75.5" x 38" x 72.8" |
| N.W.:/ G.W.: | 1235 lbs/ 1474 lbs |
