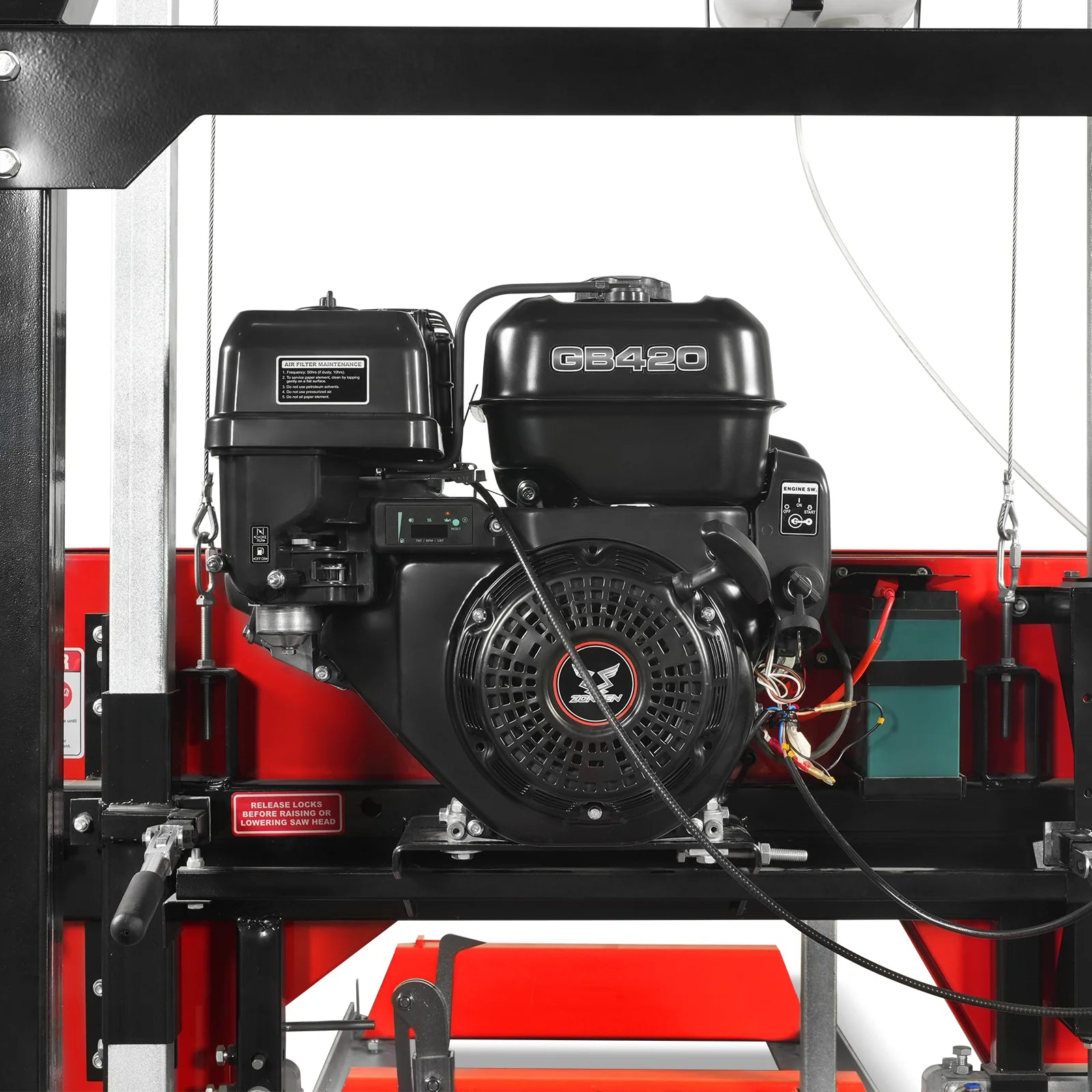

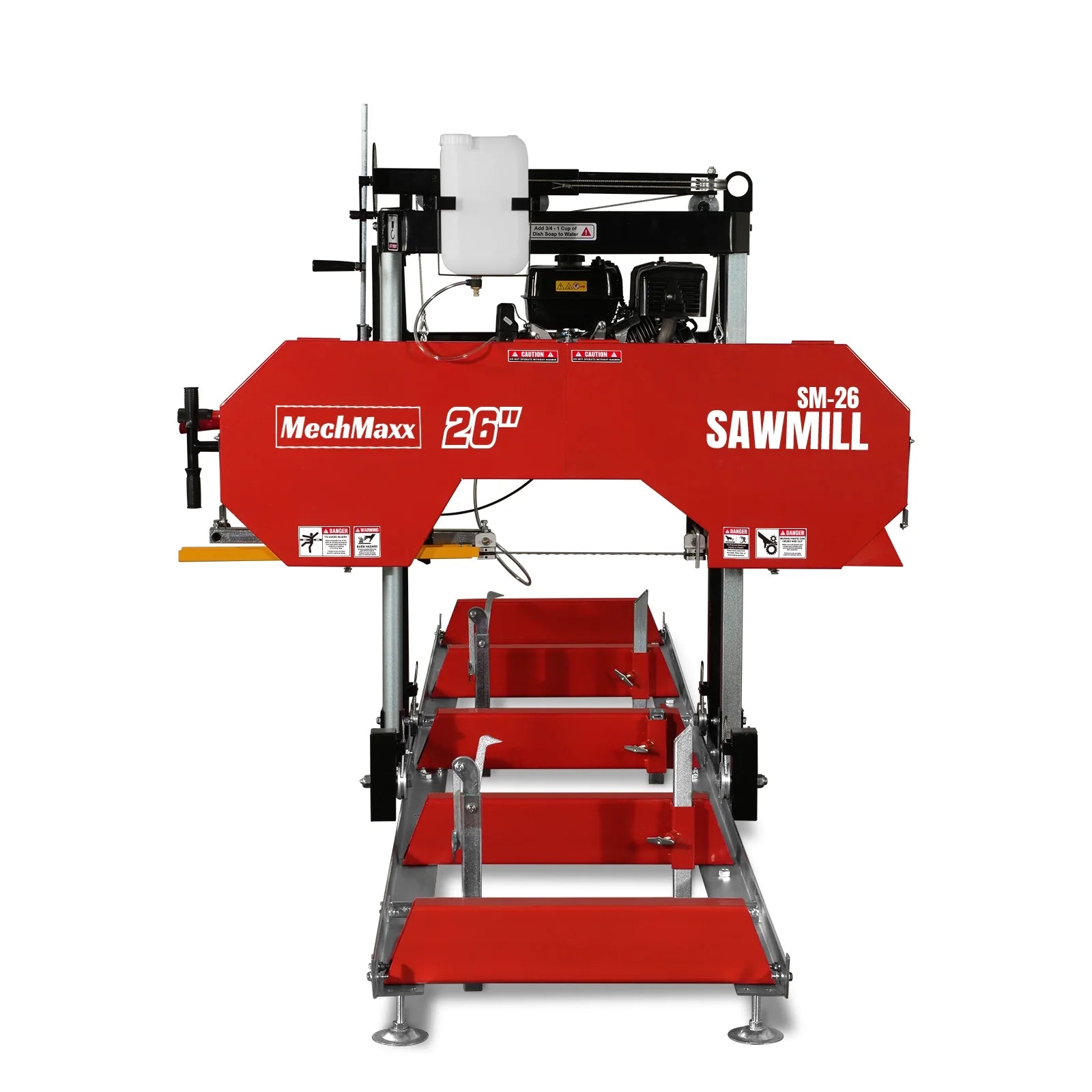

| Engine | ZONSEN GB420 | Lubricant Tank Size | 2.6 gal |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Track Load-Bearing | 3 ton |

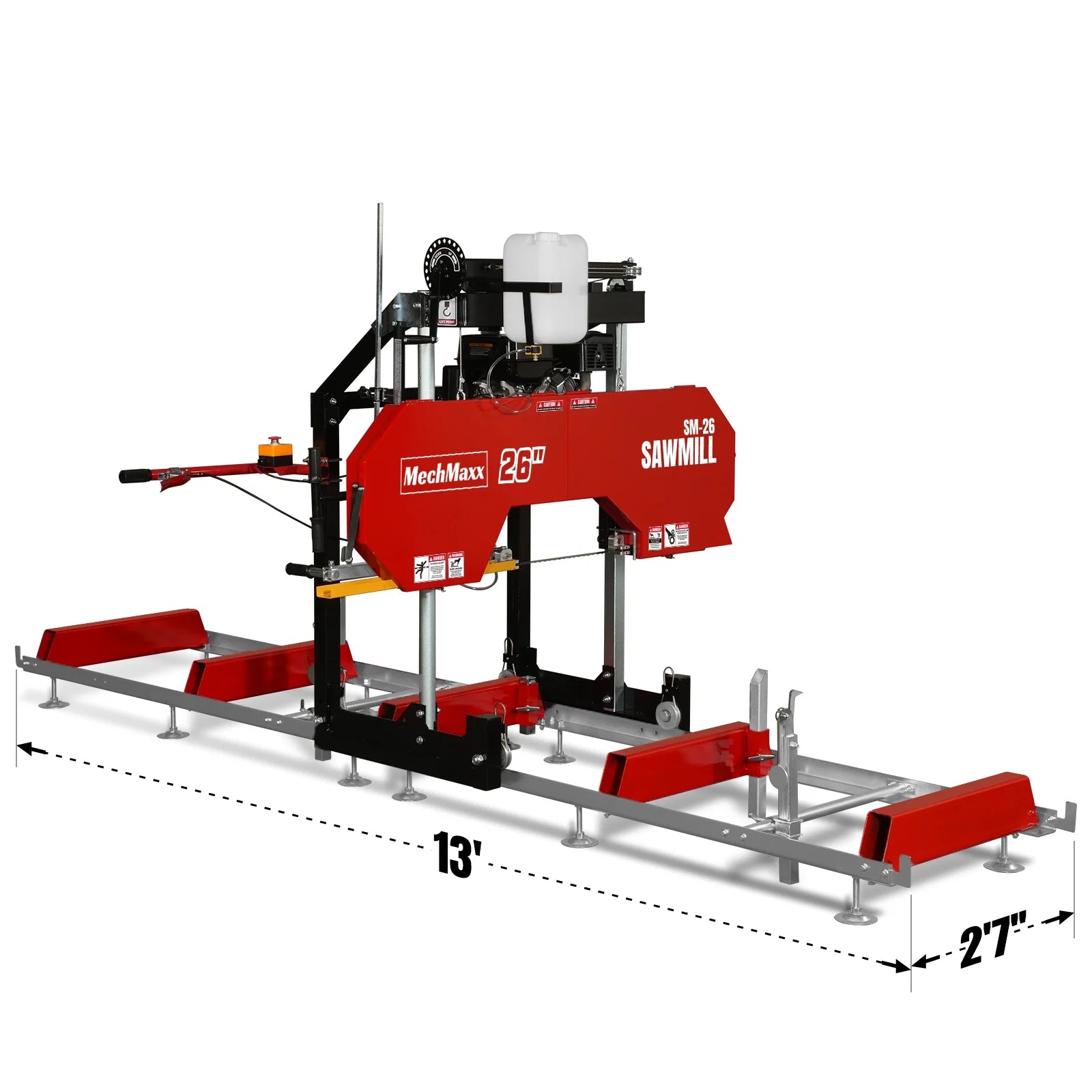

| Engine Displacement | 420 cc | Track Width | 2 ft 7 in |
| Horsepower | 15 HP | Track Length | 13 ft |
| Start | E-Start | Track Extension Length | 6.4 ft |
| Log Diameter | 26 in | Height (Max Head Position) | 79 in |
| Max Live Edge Width | 20 in | Leveling Feet | 12 |
| Standard Cutting Length | 10 ft | Log Rests | 2 Long and 2 Short Rests |
| Max Board Thickness | 7 in | Log Clamps | 2 x Quick Lock |
| Blade Engagement System | Centrifugal Clutch | Track Bunks | 3 x 6 in |

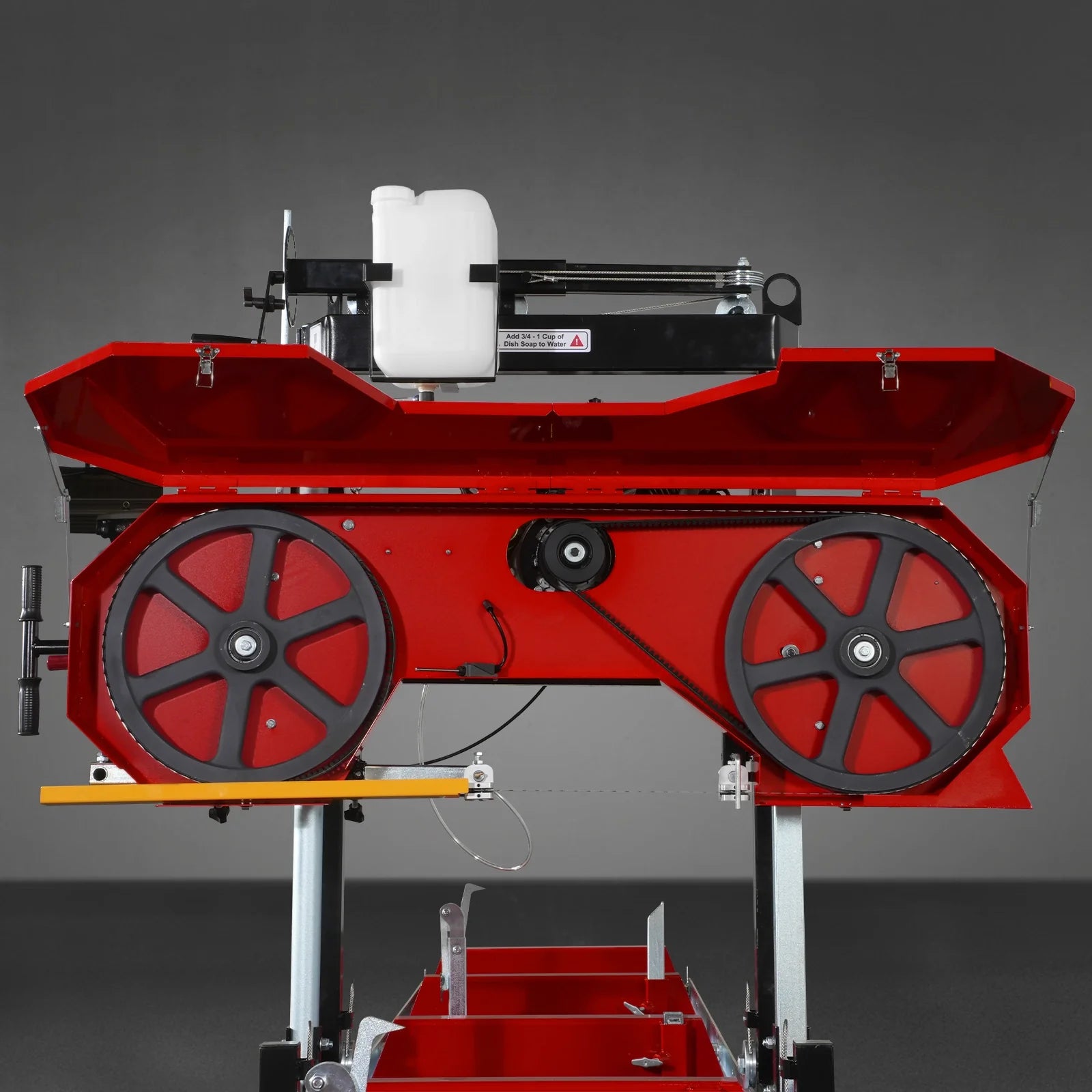

| Cast Iron Bandwheel Diameter | 19 in | 4 Post Head Design | Yes |

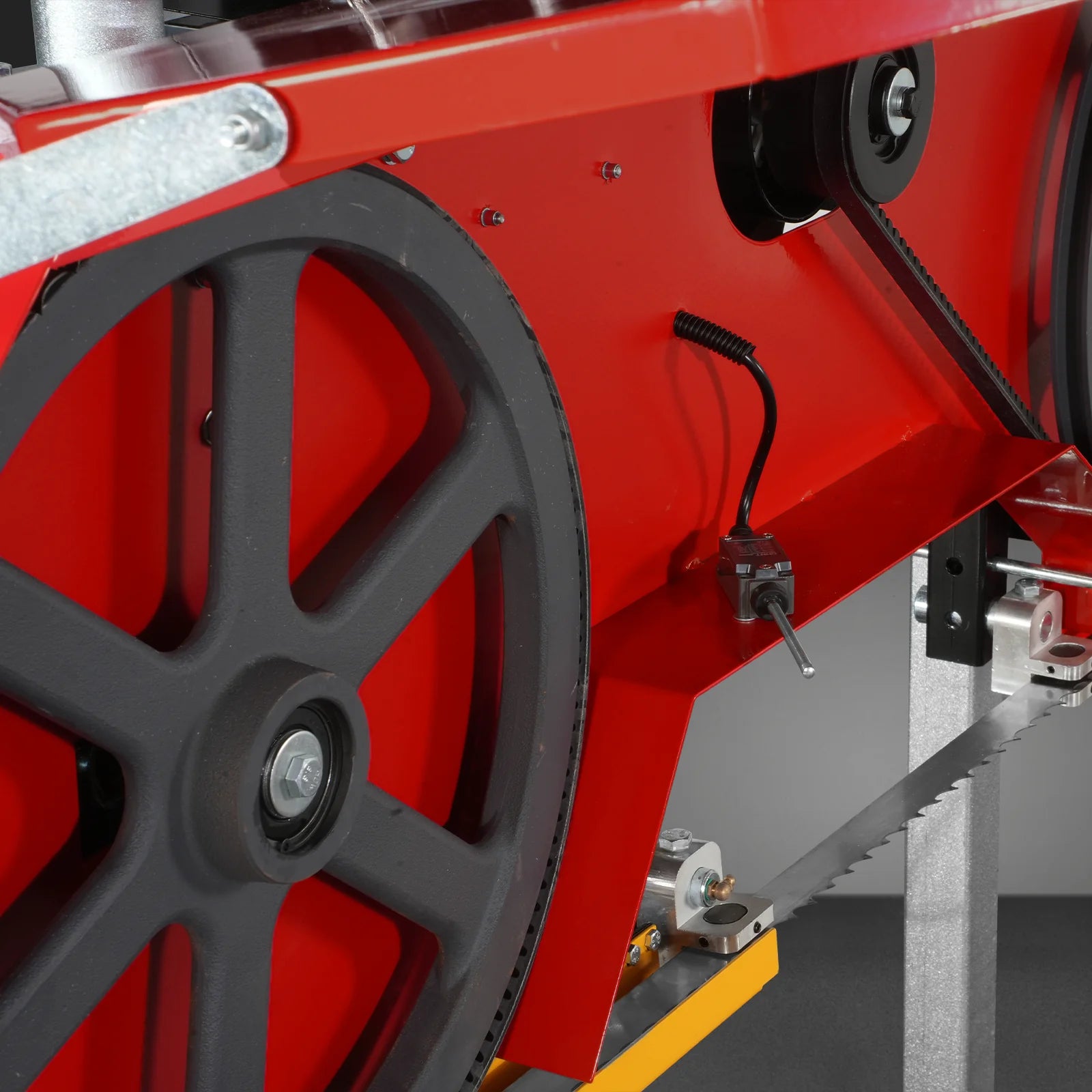

| Blade Wheel Engagement | Belt Drive | Finish | Powder Coat Paint Galvanized Steel |

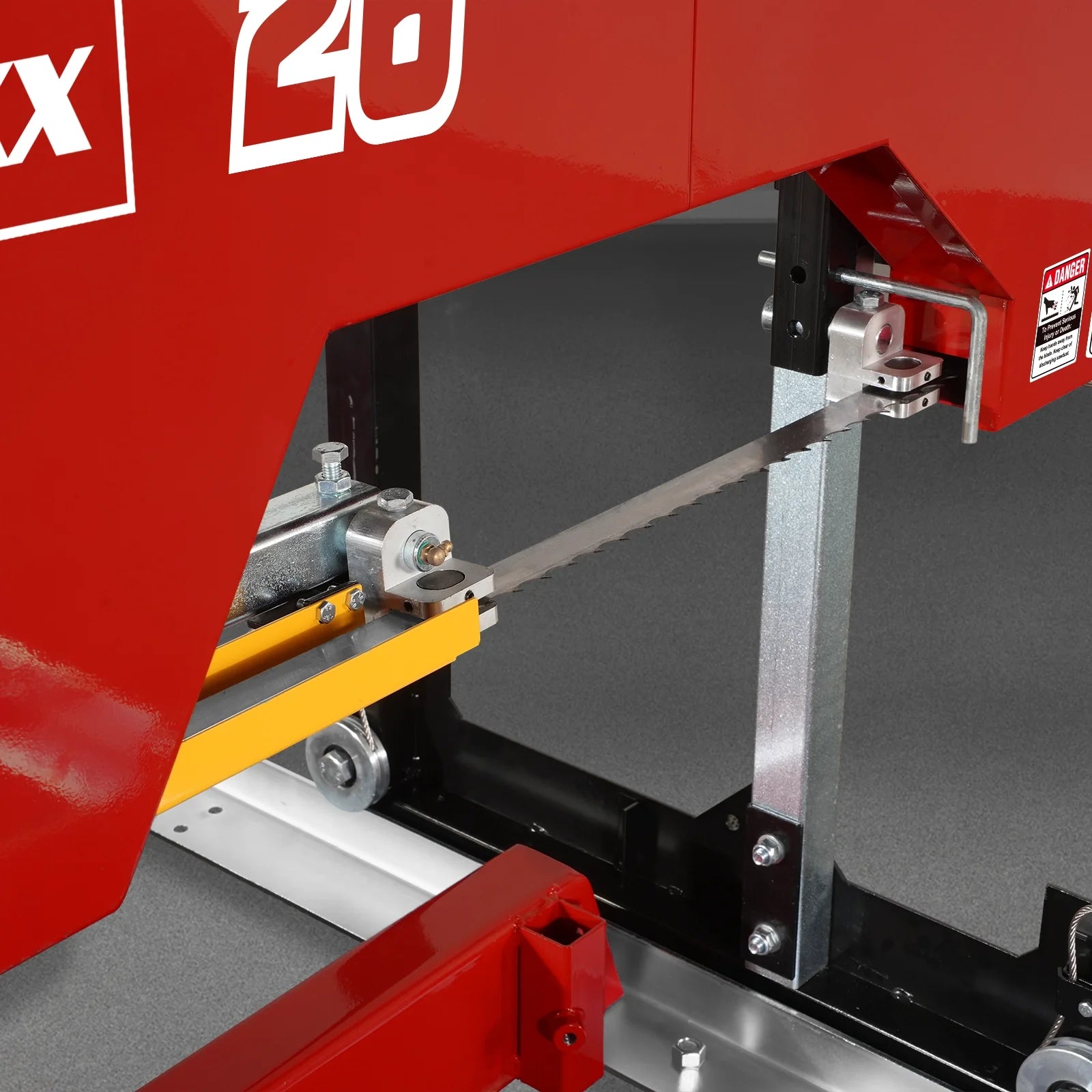

| Blade Guide | By Block | Sawmill Warranty | 2 Years |
| Blade Tension | By Adjustable Lever | Engine Warranty | 1 Year |
| Blade Size | 144 x 1.3 in | Package Method | Wood |
| Blade Pitch | 7/8 in | Packing Size | 88 x 26 x 34 in |

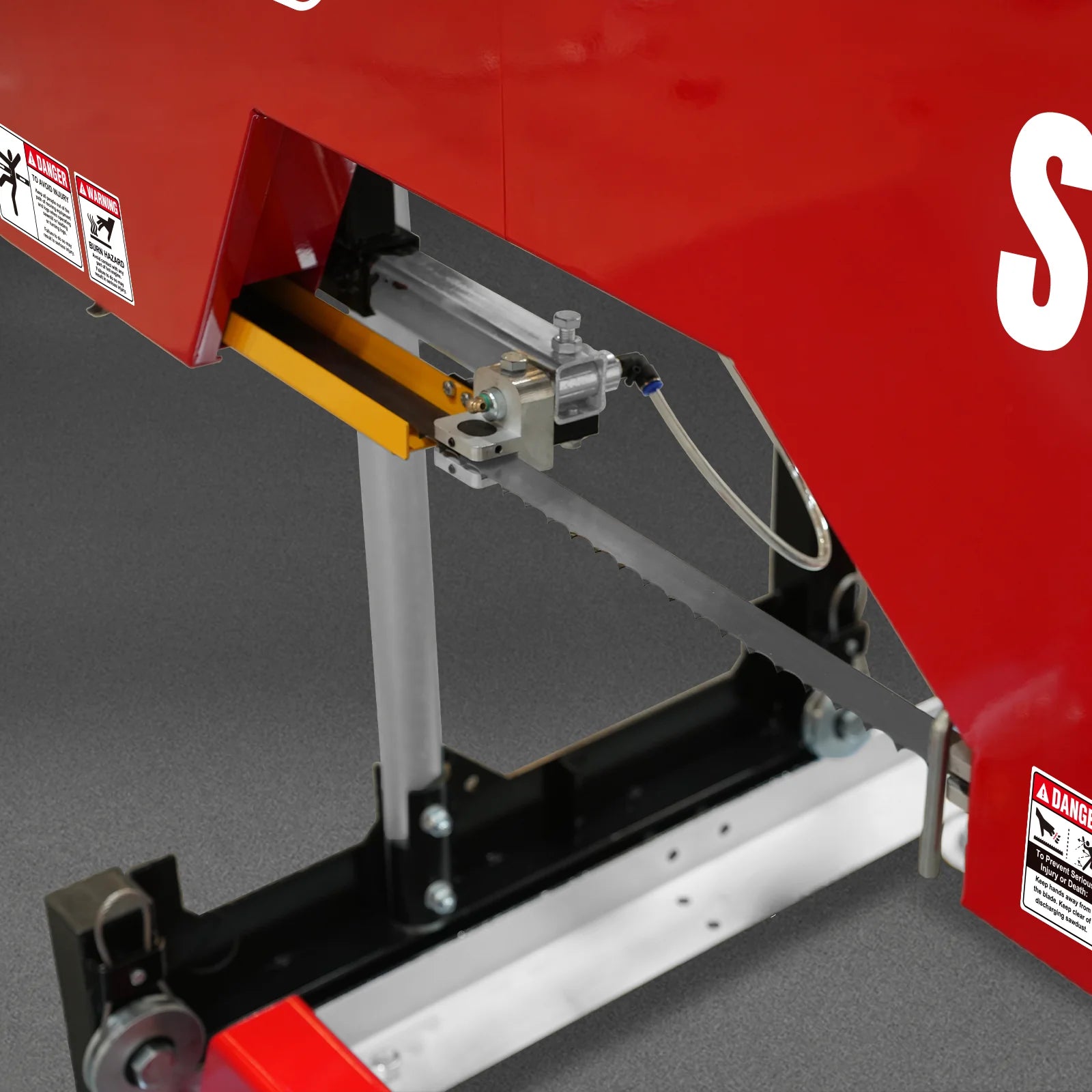

| Blade Lubrication | Water Lube - Manual Valve | Weight (N.W./G.W.) | 728/816 lbs |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
