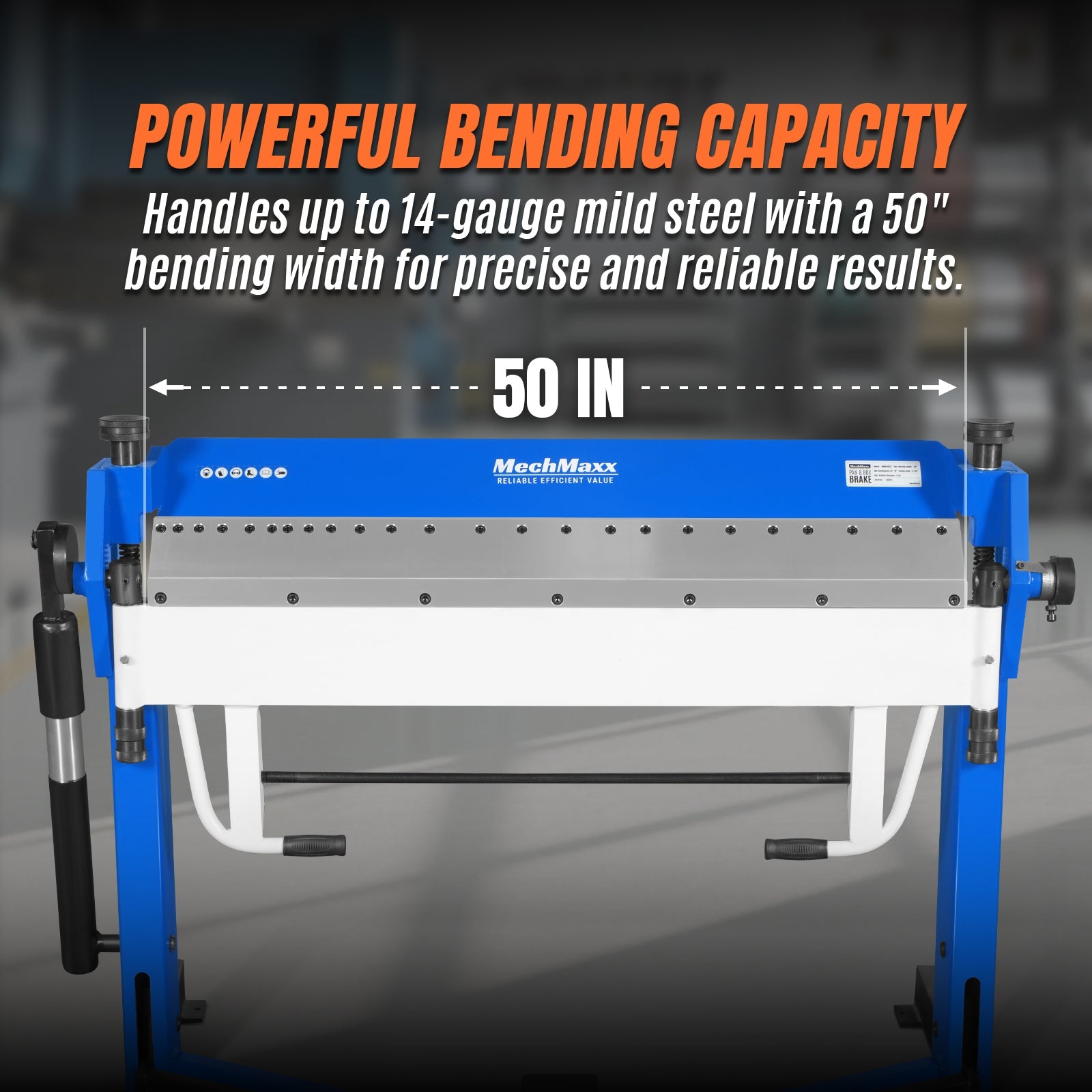

| Maximum Working Length | 50 in (1270 mm) |
| Maximum Sheet Thickness | 14 Ga. mild steel (≈2.0 mm) |
| Maximum Clamping Bar Lift | 1.9 in (48 mm) |
| Maximum Box Depth | 2 in (50 mm) |

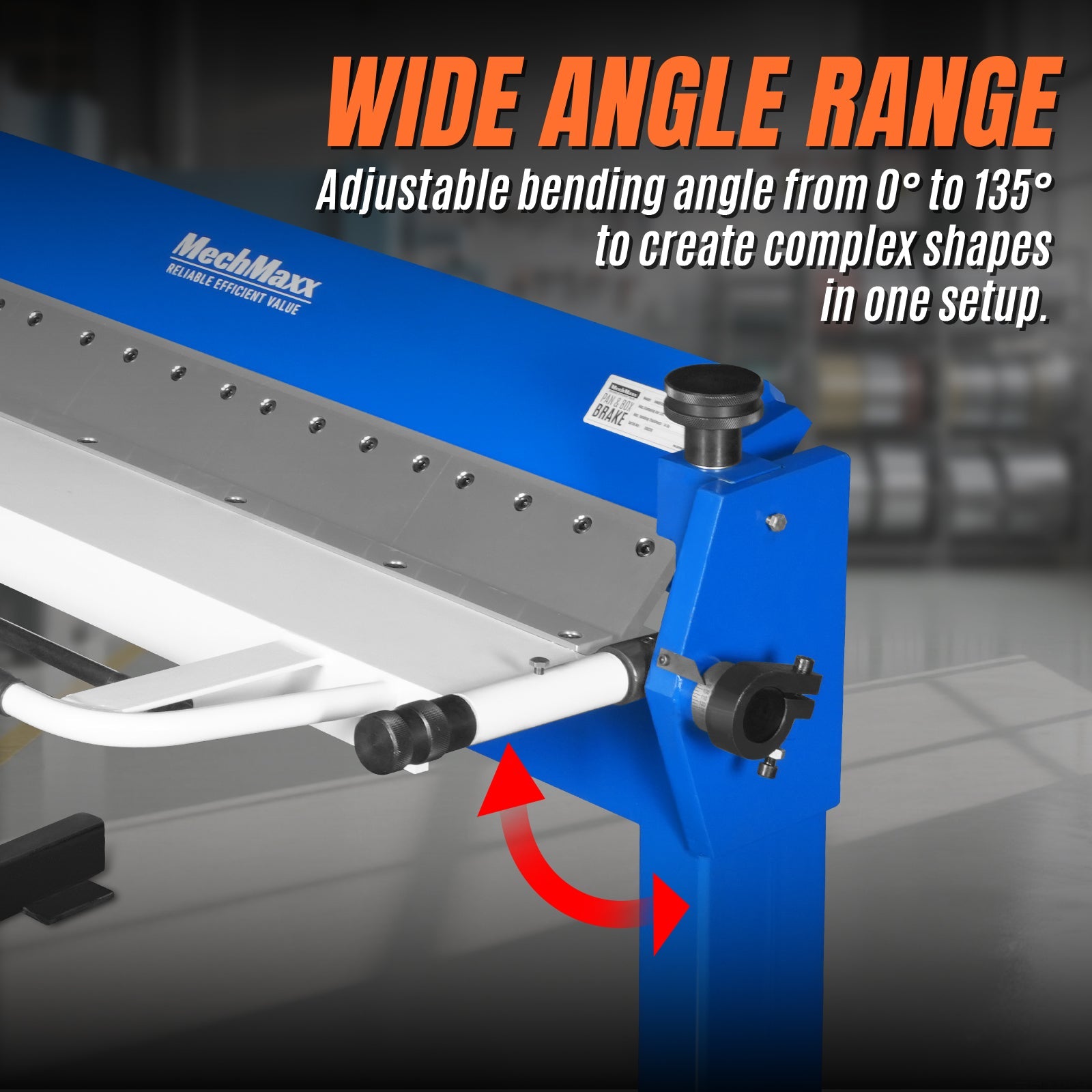

| Folding Angle Range | 0° – 135° |

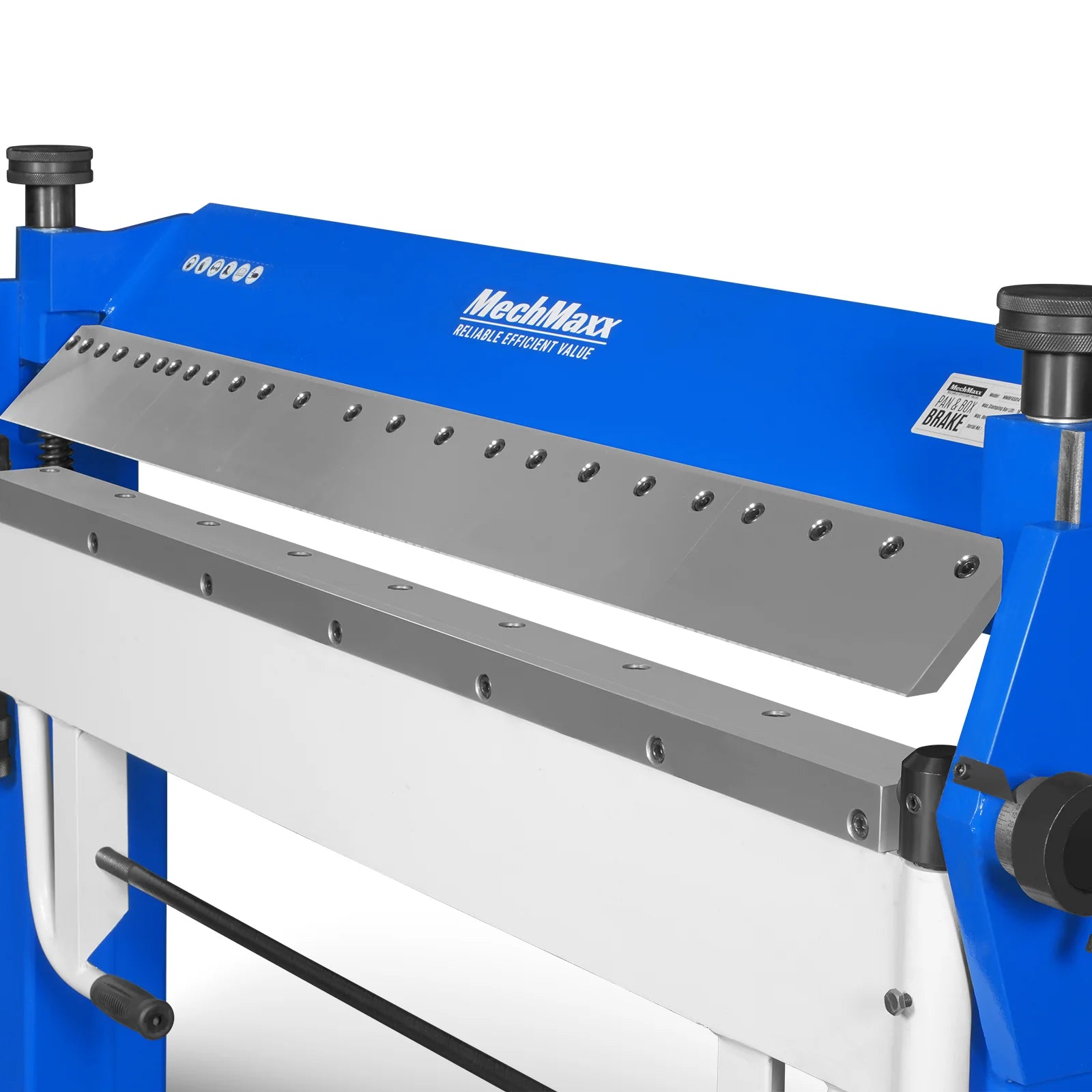

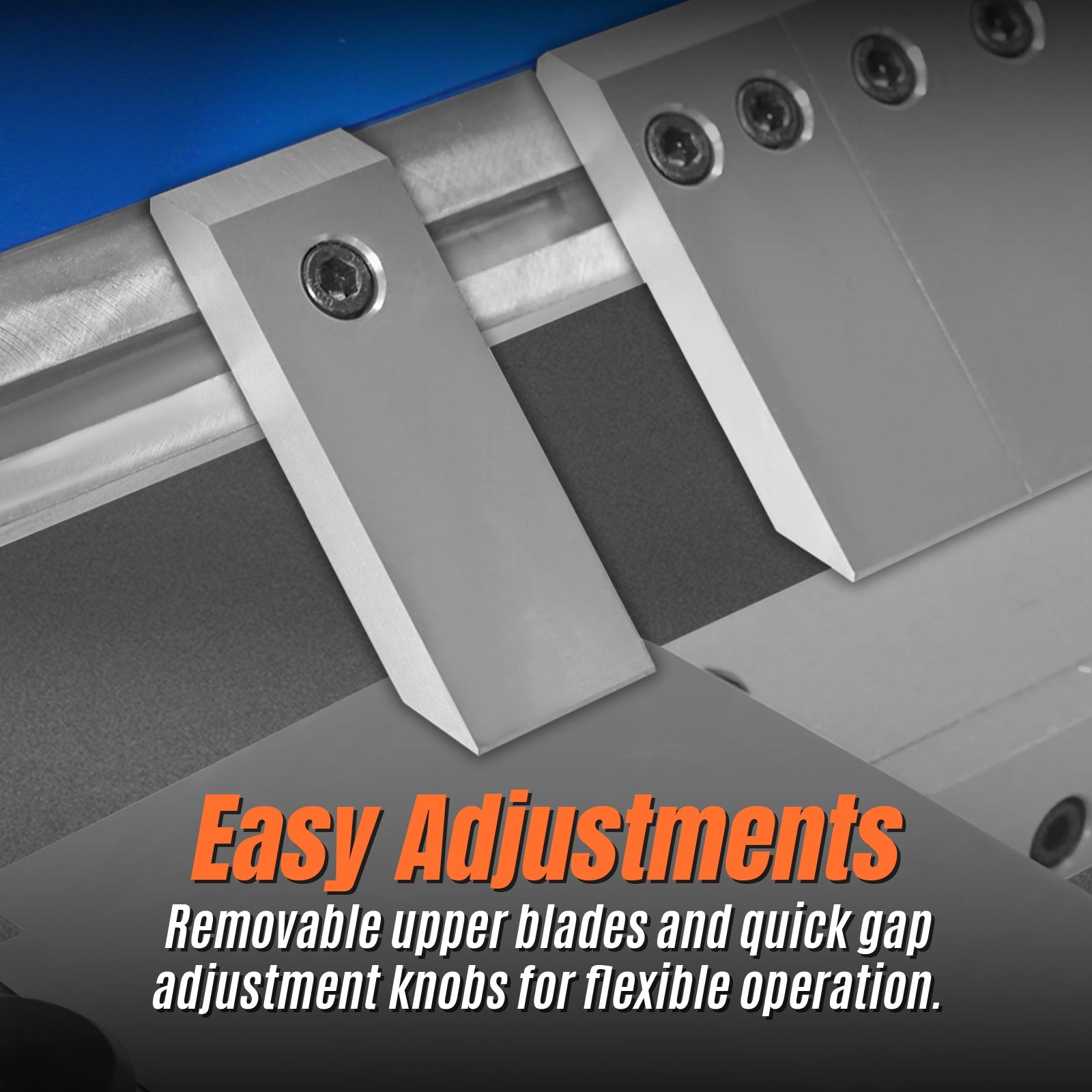

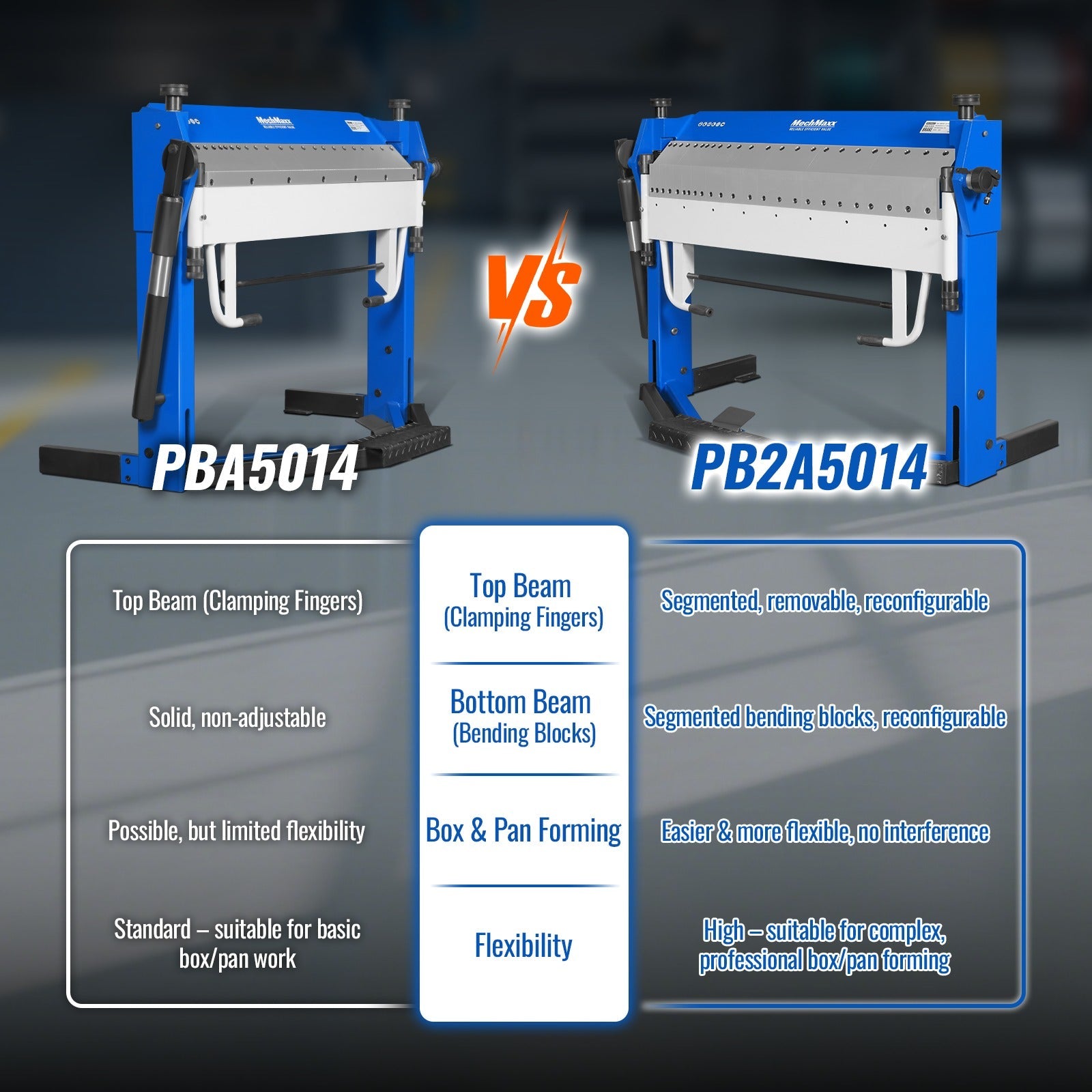

| Upper Blade | Removable segments for box & pan forming |

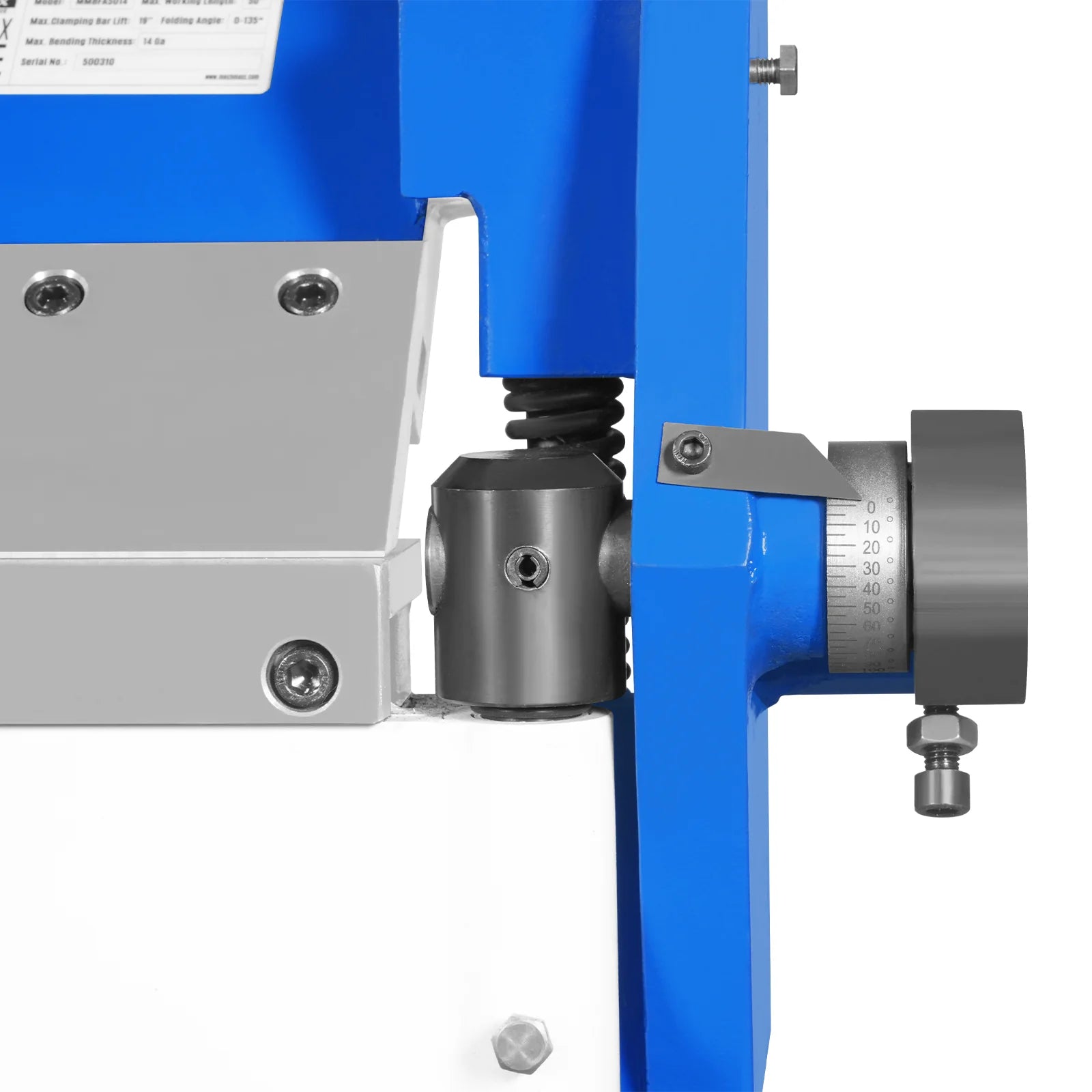

| Adjustment | Quick-adjust blade gap knobs |
| Assist Mechanism | Spring-loaded cylinders for reduced operator effort |

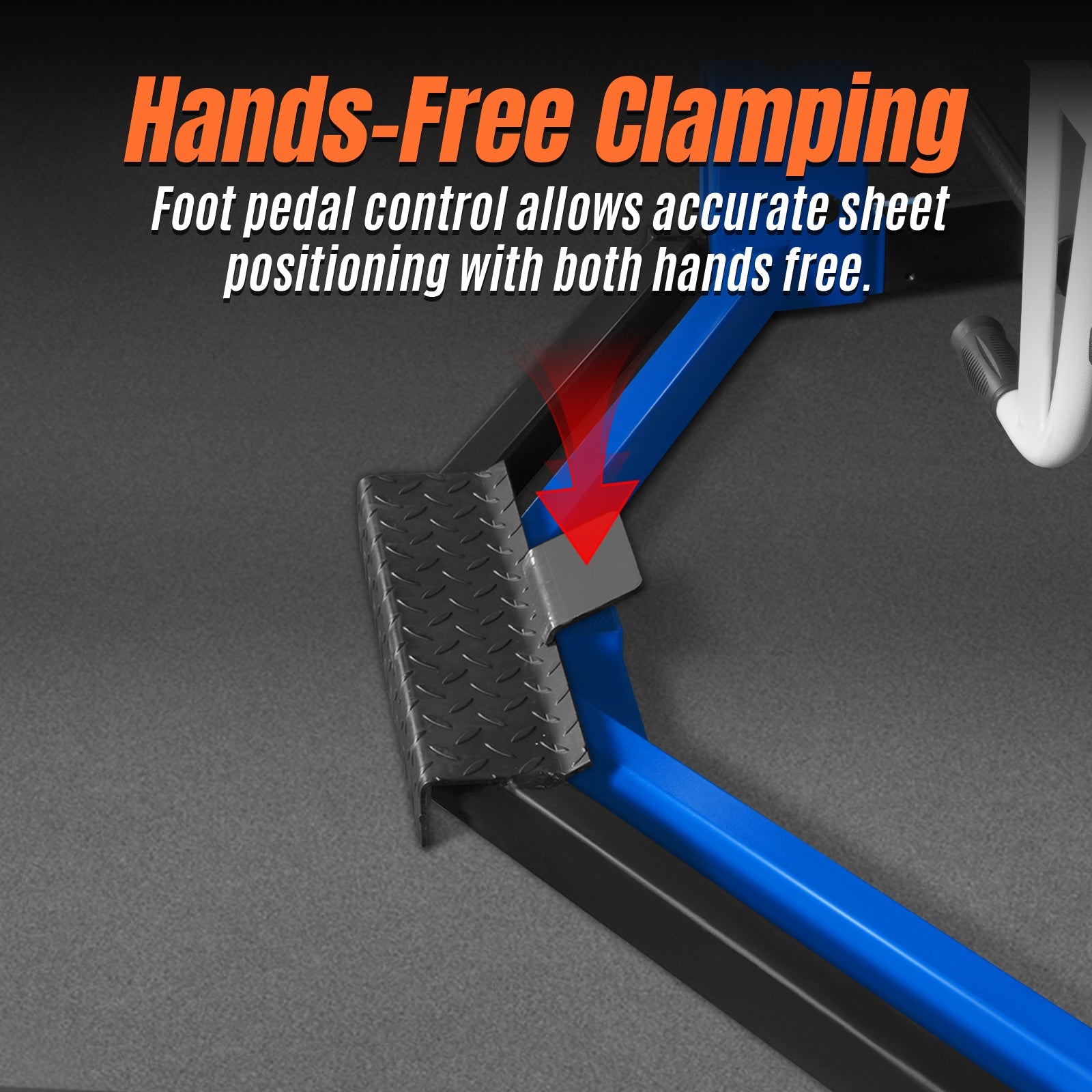

| Control | Foot pedal clamp for hands-free operation |

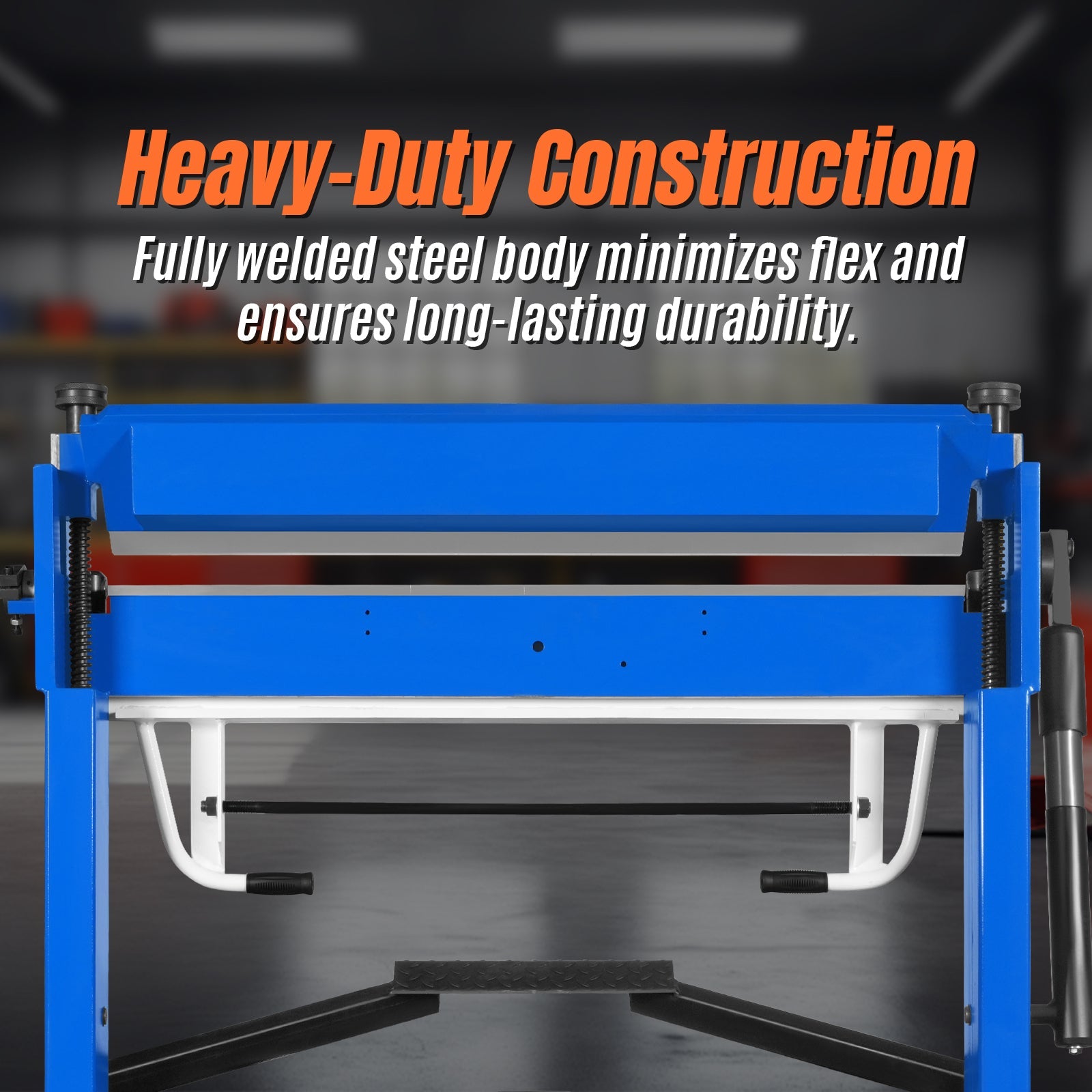

| Frame Construction | Fully welded steel body, reinforced for stability |
| Back Gauge | Optional, with pre-drilled mounting points |
| Packing Size | 66.9 × 28 × 50 in |
| Net / Gross Weight | 794 / 924 lbs |
