| Engine Power Required | 80-110 Hp | Rotor Diameter | 5.5 in |
| Working Width | 78 in | Rotor Thickness | 0.5 in |
| Overall Width | 94 in | Rear Roller Diameter | 6 in |
| Blade Ground Clearance (Four Gears) | 0.2-0.9-1.7-2.4 in | Rear Roller Thickness | 0.25 in |
| Max. Cutting Diameter |
Depends On The Type Of Grass |
PTO Shaft Speed | 540 rpm |
| Offset Distance from The Center (Maximum) | 122 in | Deck Thickness | 2 in |
| Tilt-Up Angle | 90° | Side Plate Thickness | 0.25 in |

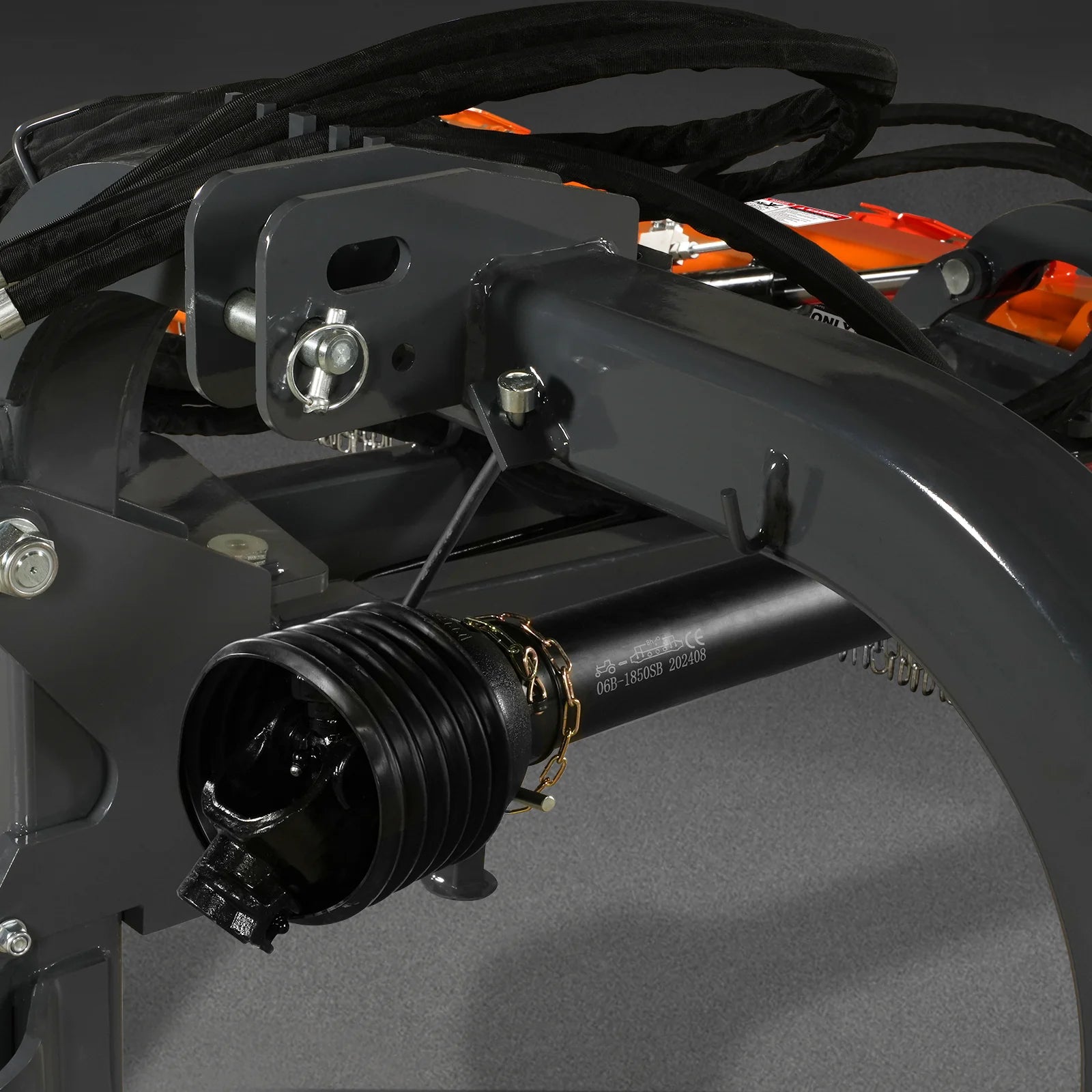

| Tilt-Down Angle | 55° | Driveline Shaft Length | T6-LF-73 With Shear Bolt ; 73in-126in |
| Number Of Blades | 18 | Spline End | 1.375in Z6 |
| Number of Belts | 4 | 3-Point Hitch | CAT 2 |

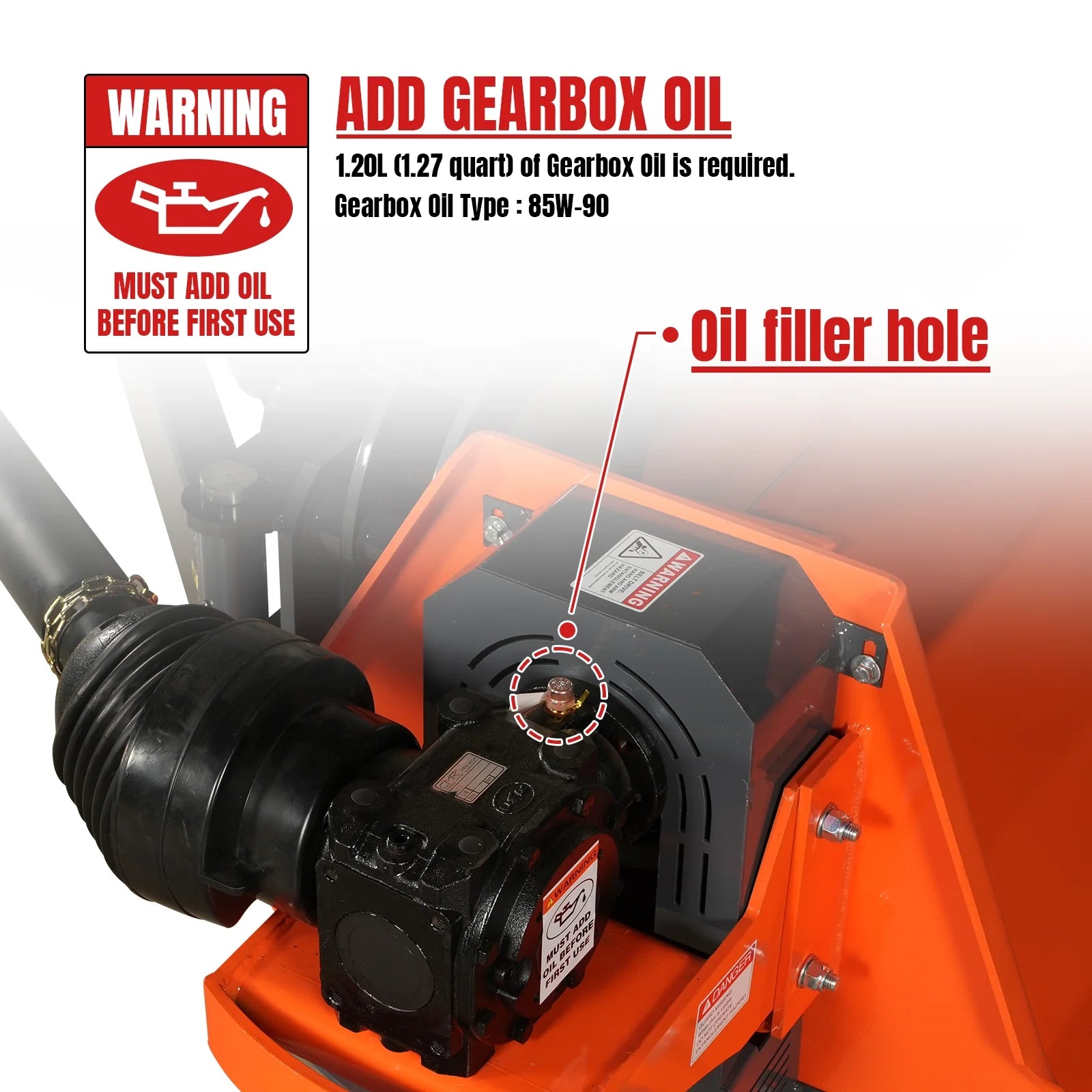

| Blade Type | Hammer | Gearbox 0il Type | 85W-90 |
| Blade Weight | 2.6 lbs | Finish | Powder Coating |
| Blade Material | Cast Steel | Warranty | 1 Year |
| Belt Adjustment | Bolt Tightening | Shipping Box | 100x41x31 in |
| Working Efficiency450 cu.ft./Hr. | 450 cu.ft./Hr. | Weight (N.W./G.W.) | 1848 /2040 lbs |
