| Motor | 2HP(1500W) 220V 60HZ 1PHASE |
| Swing Over Bed | 14''(355mm) |
| Swing Over Cross Slide | 8-5/8"(220mm) |
| Swing Over Gap | 19-5/8"(500mm) |
| Distance Between Centers | 39-3/8"(1000mm) |

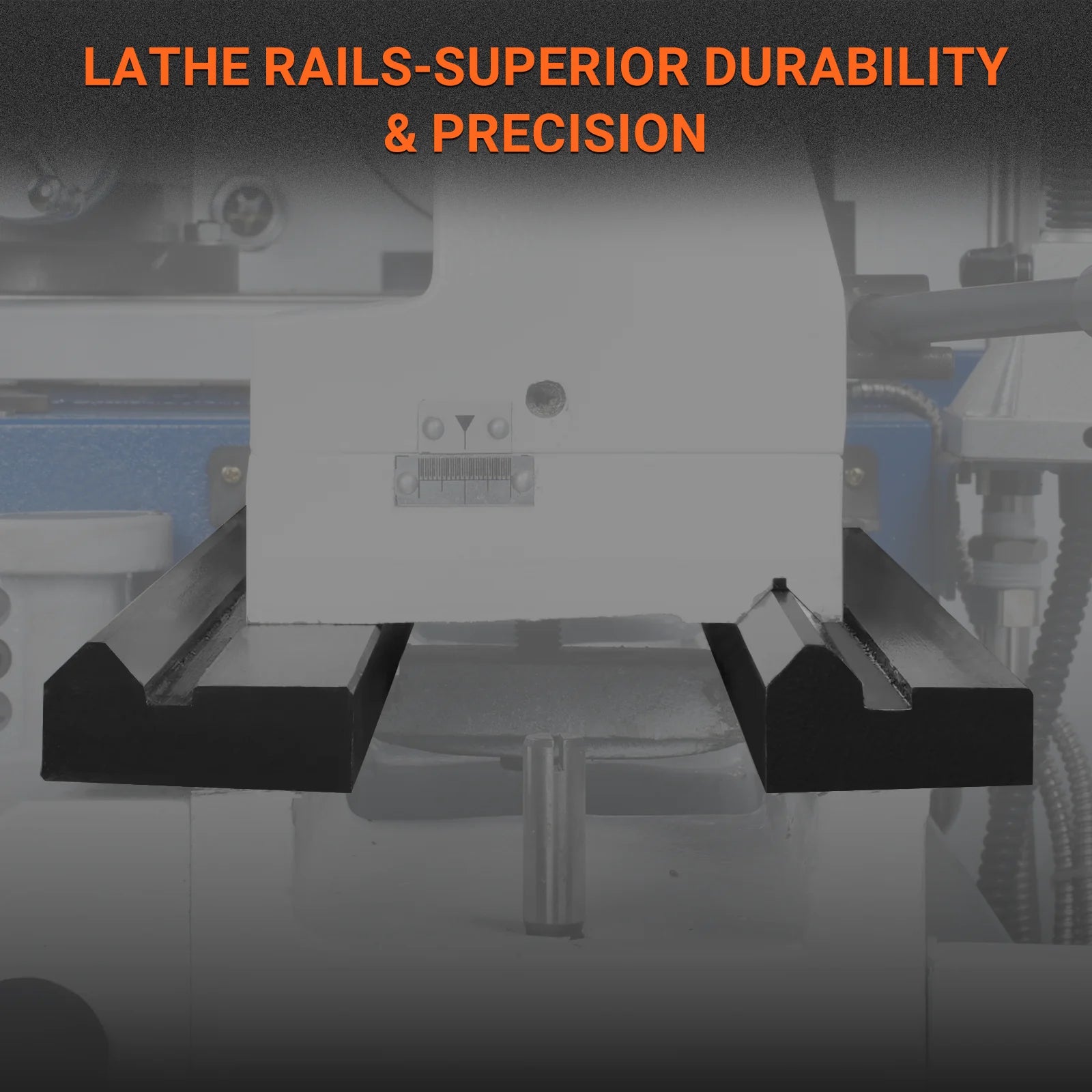

| Bed Width | 7-7/16"(187mm) |
| Spindle Bore | 2''(51mm) |
| Spindle Mount | Cam-lock Chuck |
| Spindle Type | D1-5 |
| Spindle Taper | MT6 |
| Tailstock Taper | MT3 |

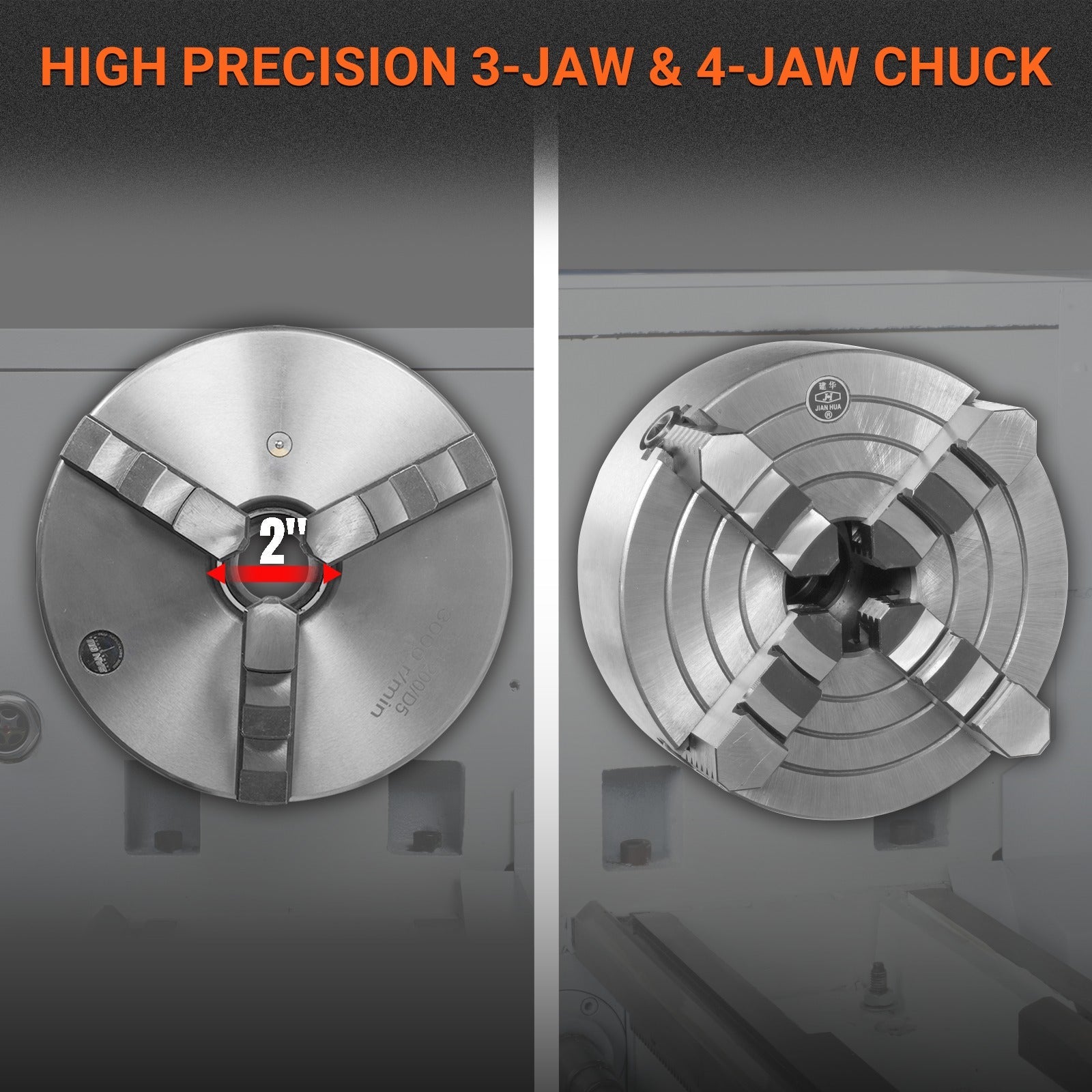

| Chuck Size | 6" 3-Jaw and 8" 4-Jaw (2" Chuck Bore on both) |

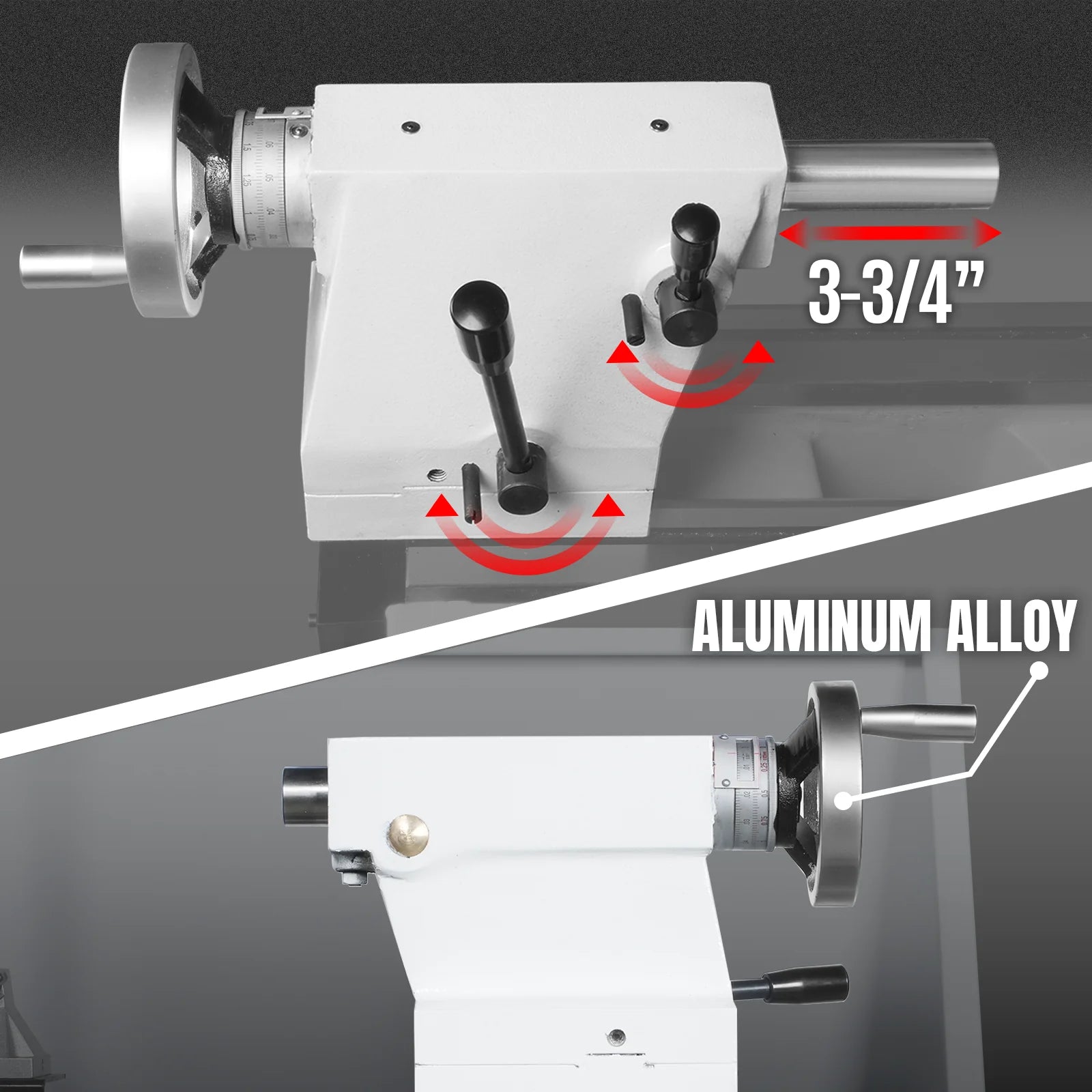

| Tailstock Quill Travel | 3-3/4"(95mm) |

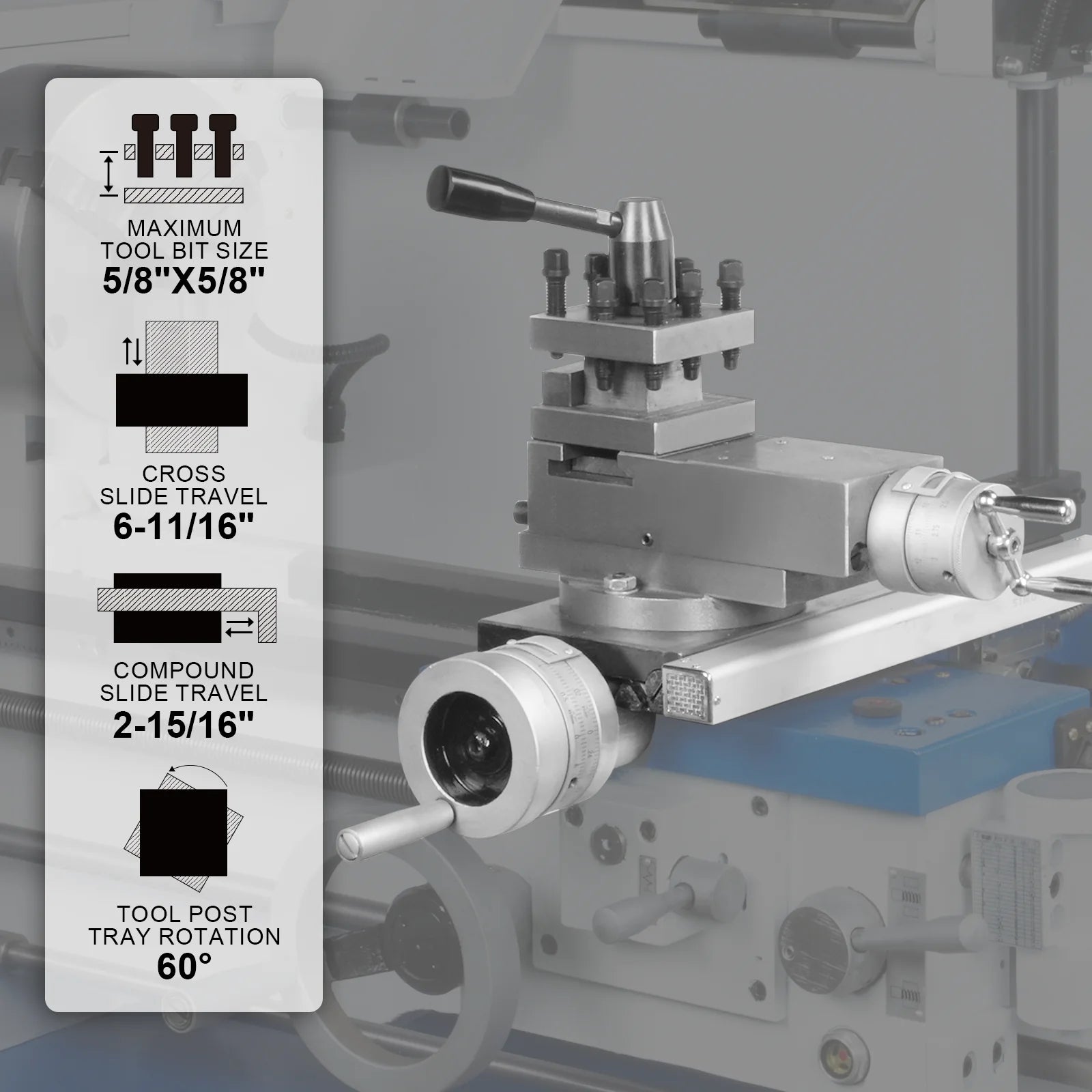

| Cross Slide Travel | 6-11/16"(170mm) |
| Compound Slide Travel | 2-15/16"(74mm) |
| Carriage Travel | 40''(1000mm) |
| Spindle Speeds | 84, 140, 230, 360, 430, 700, 1150, 1850RPM |
| Number of Speed Ranges | 8 |

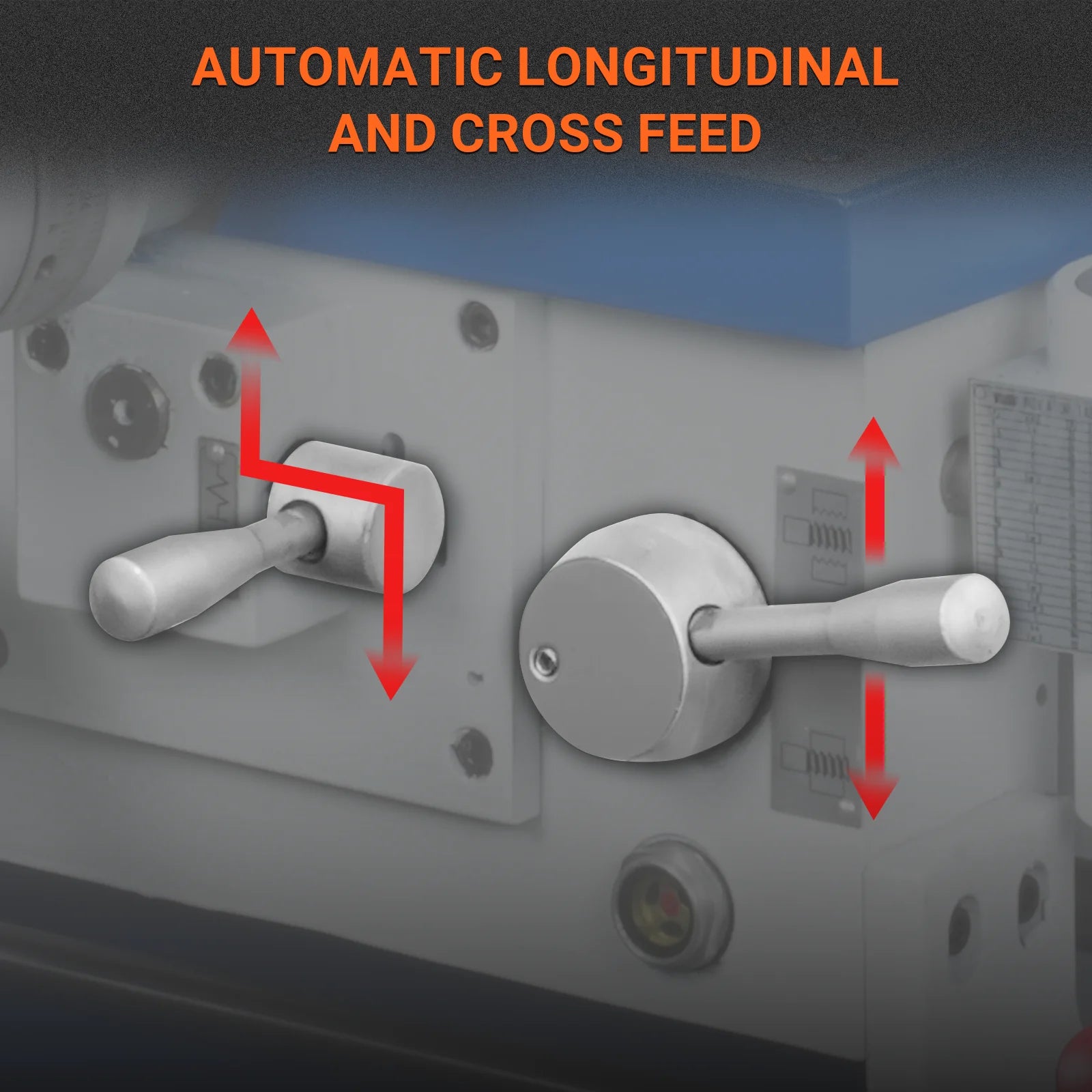

| Longitudinal Feeds | 0.002''-0.0548'' |
| Transverse Feed Rate | 0.00055''-0.015'' |
| Leadscrew Size & Pitch | 7/8'' (22mm) 8TPI |
| Threading Capacity - Inch | 4-56TPI(34 kinds) |
| Threading Capacity - Metric | 0.4-7mm(26 kinds) |
| Module thread | 0.35-5M.P(16 kinds) |
| Diametral thread | 6-104D.P(36 kinds) |
| Maximum Tool Bit Size | 5/8"x5/8"(16X16mm) |

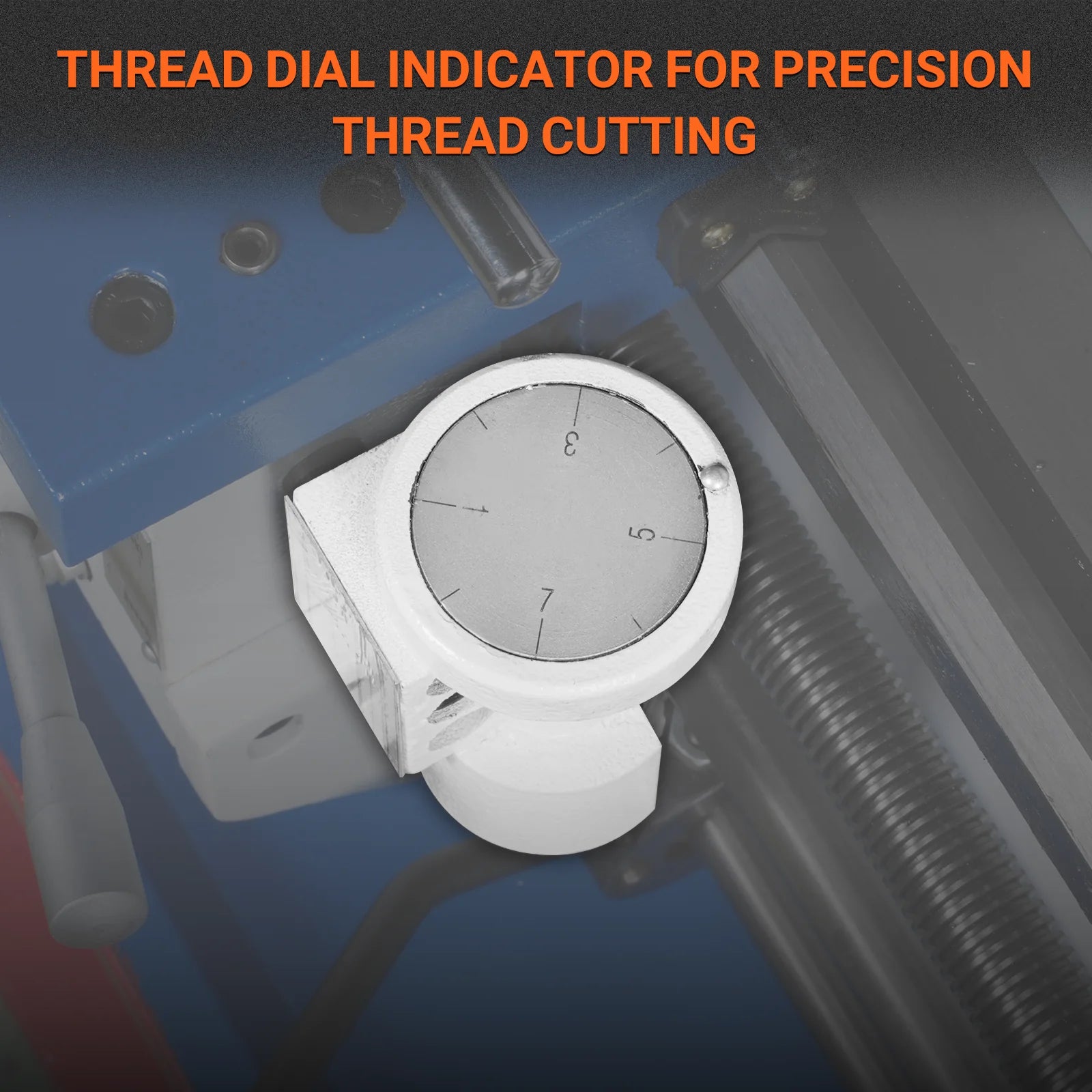

| Thread Dial Indicator | YES |

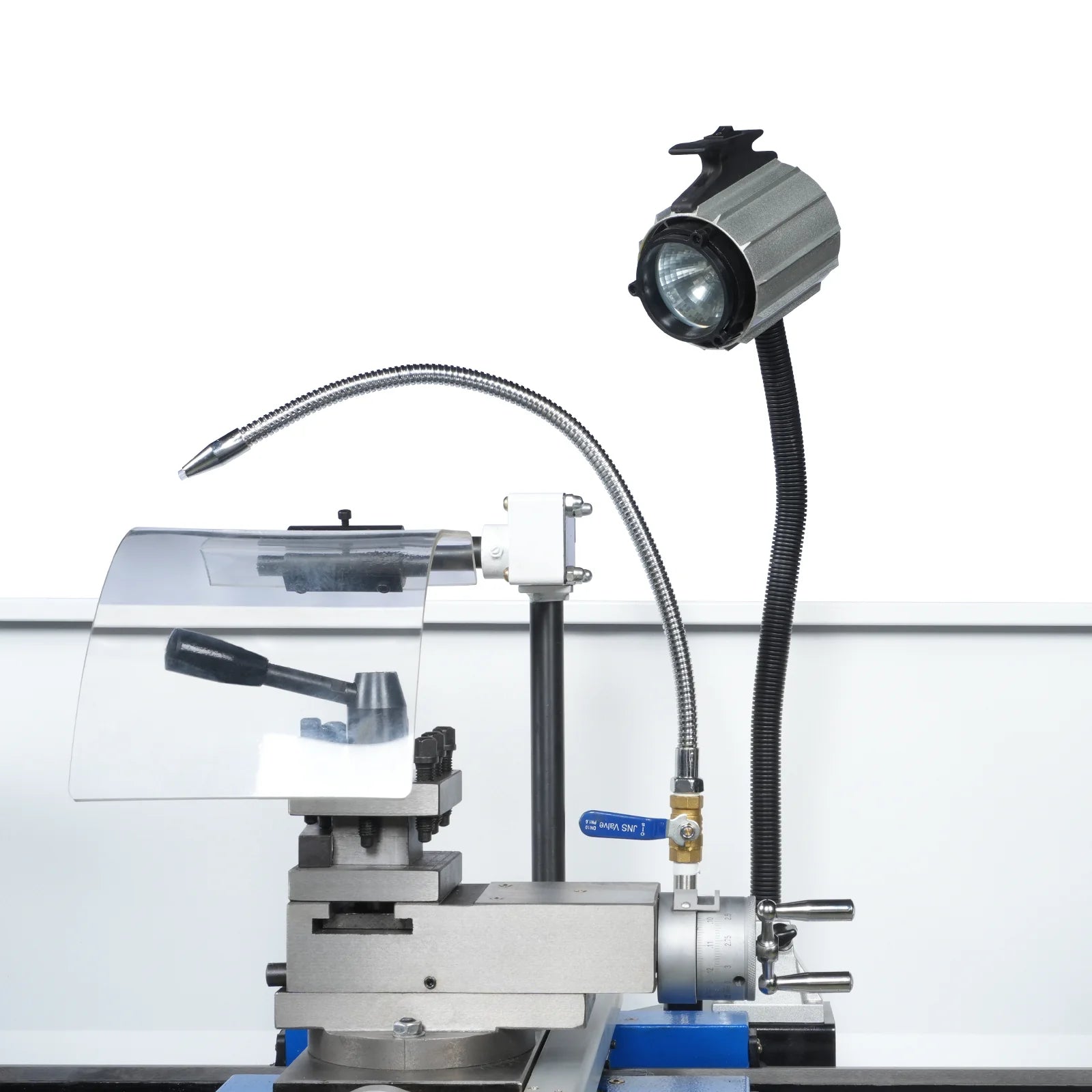

| Coolant System | YES |
| Overall Dimensions | 76''x30''x59''(1920x750x1500mm) |
| Approximate Shipping Weight | 1378/1486lb(625/754kg) |
