Coxreels® HP1125 Series — HP1125 Series motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded “A” frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

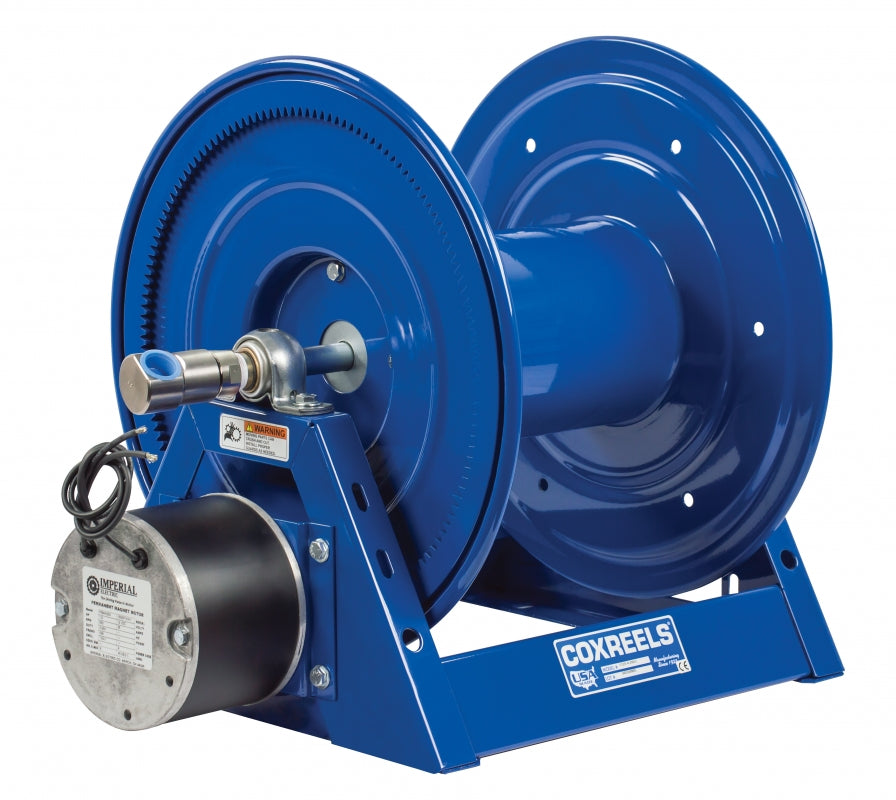

Model HP1125-5-175-E: Electric 12V DC 1/3HP Motor Rewind Hose Reel: 3/4" I.D., 175' hose capacity, less hose, 5000 PSI
- SWIVEL - Electroless nickel plated steel 90 full-flow NPT swivel inlet.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
- "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and reliable direct gear drive for quiet & smooth rotation. Motor options available in air, electric, and hydraulic.
| MODEL | HP1125-5-175-E |
| REEL TYPE | Motorized |
| MOTOR | 12V DC Electric |
| I.D | 3/4" |
| O.D | 1 1/4" |
| LENGTH | 175' |
| HOSE | No |
| MAX PSI | 5000 |
| SHIP WEIGHT (LBS) | 63 |
| OVERALL DIMENSIONS (W) (H) (L) | 32" (W) 19.25" (H) 17.63" (L) |
| MOUNTING PATTERN (M) (N) | 21.44" (M) 10" (N) |
| BASE (X) (Y) | 23.38" (X) 16" (Y) |
