- Variable speed spindle for material control
- Large cast iron table ensures accuracy
- Oscillation keeps abrasives cleaner
- Tilting spindle expands sanding angles
Description

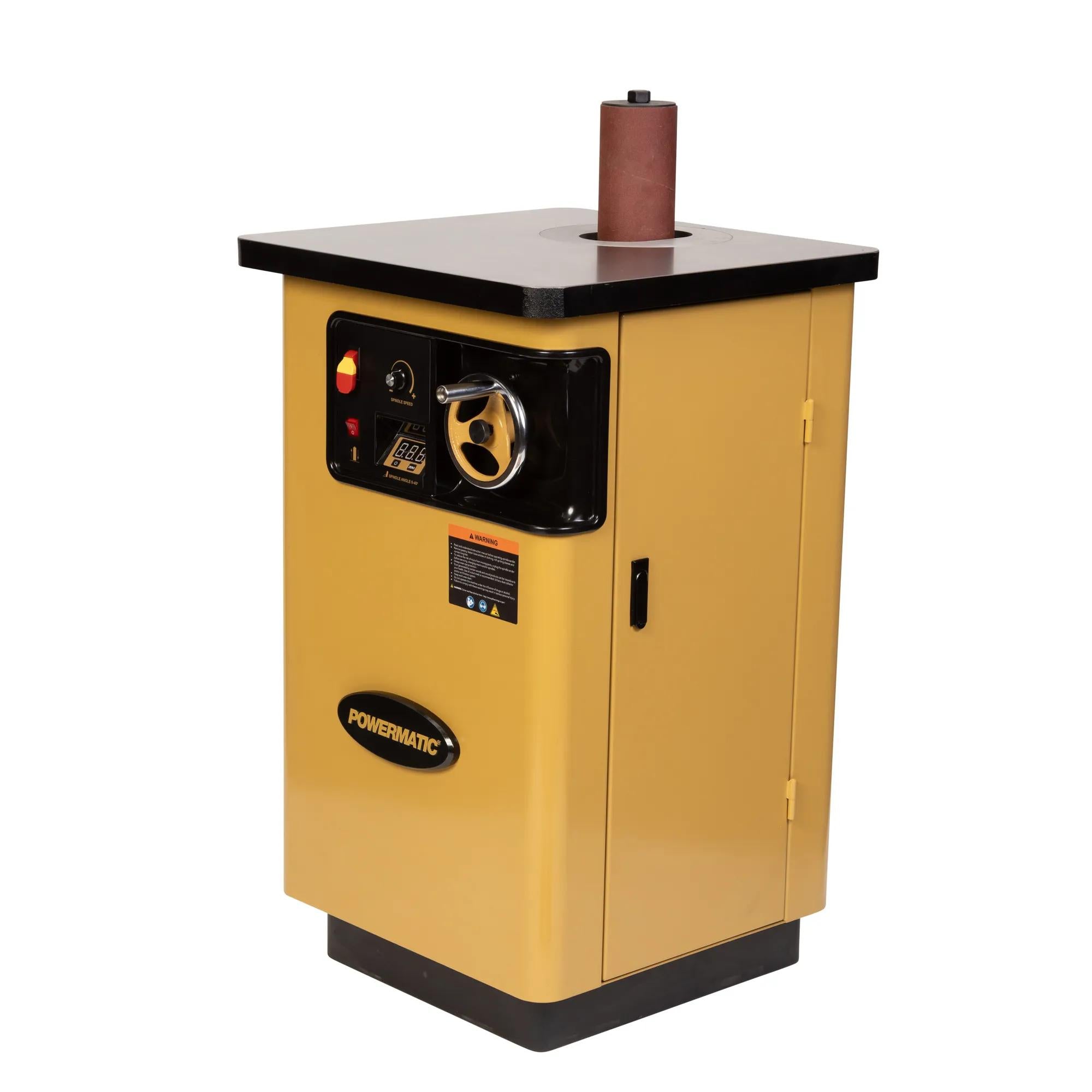

The Powermatic OSS10 Oscillating Spindle Sander is engineered for precise spindle sanding, smooth edge finishing, and long-term reliability in professional and serious woodworking shops. Designed with control, accuracy, and ease of use in mind, it supports a wide range of sanding applications from intricate curves to larger edge profiles.
A large 24-1/2" × 24-1/2" cast iron stay-flat table provides stable, accurate support during sanding operations. The oscillating spindle mechanism, operating at up to 60 oscillations per minute with a 1.5" stroke, helps keep abrasives cleaner, reduces heat buildup, and extends spindle life.

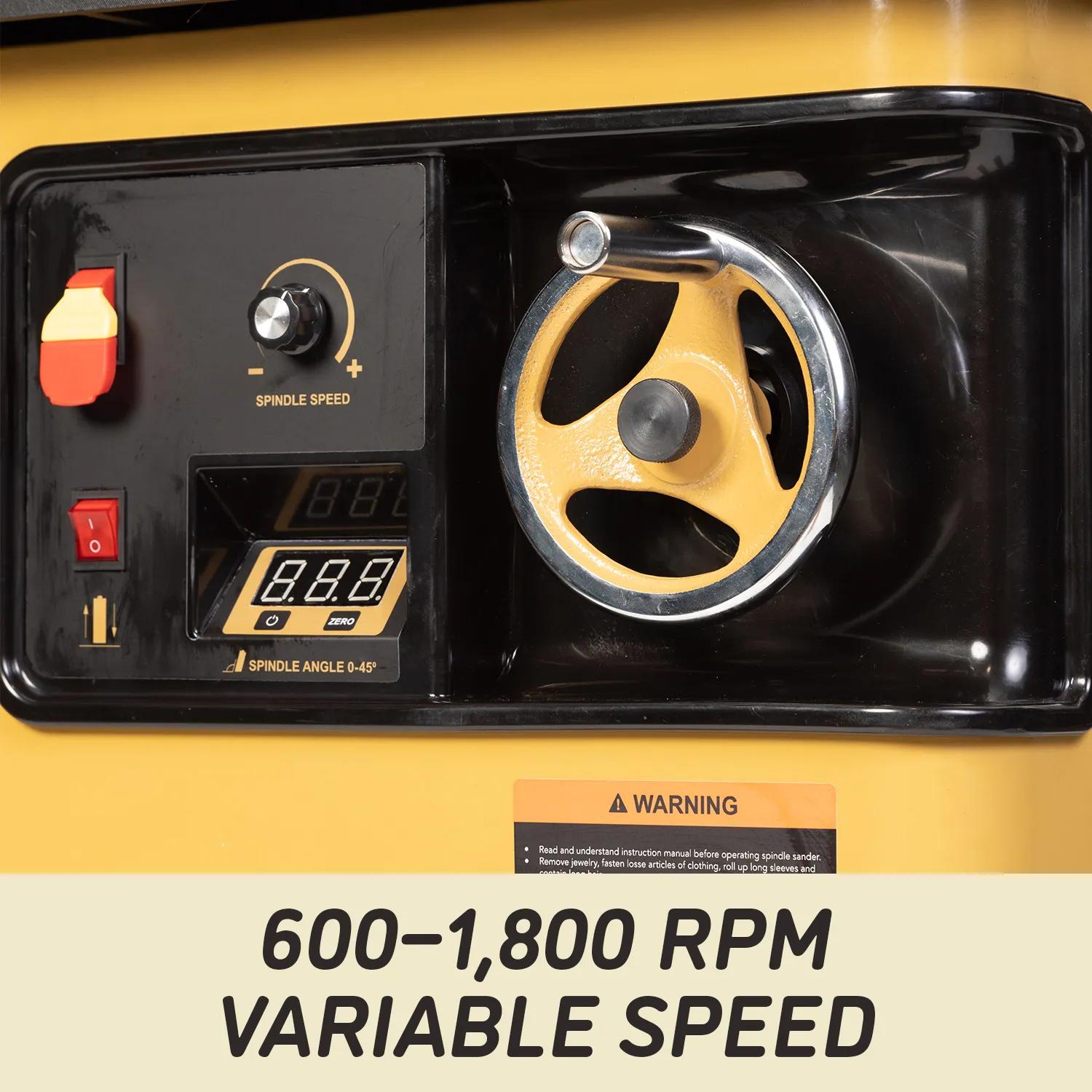

The variable-speed spindle (600–1,800 RPM) allows operators to match sanding speed to material type and finish requirements. Spindle tilt from 0° to 45° expands sanding versatility for angled and beveled work. A clear digital readout displays speed and angle settings for precise, repeatable adjustments.

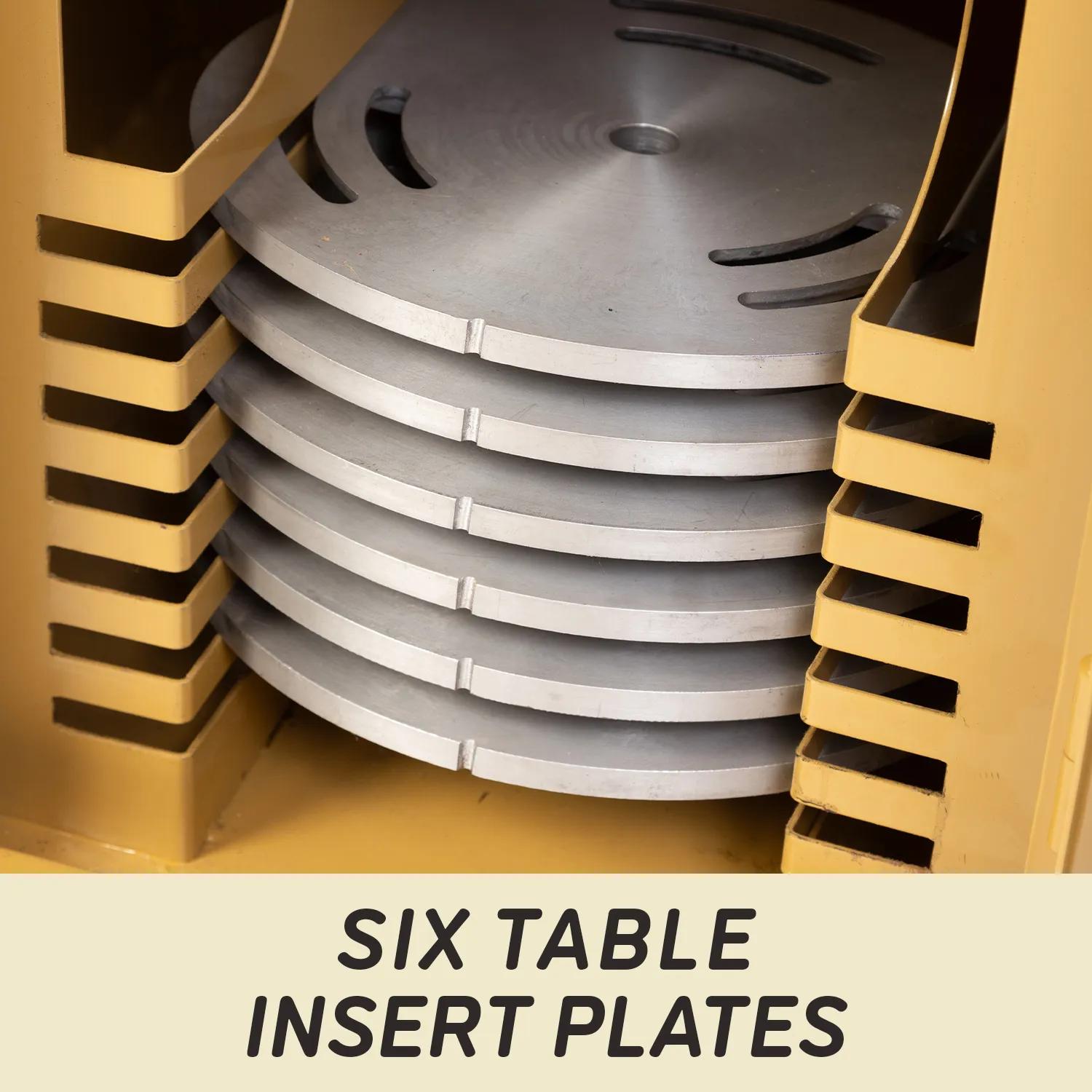

Supporting spindles from 1/4" to 4" diameter, the OSS10 accommodates a wide range of sanding sleeves and inserts. Operator controls include an intuitive paddle switch with safety key, while integrated dust collection and a steel cabinet with spindle storage help keep the workspace organized.
Like all Powermatic machines, the OSS10 is backed by a 5-year warranty, reinforcing confidence in its durability and long-term performance.

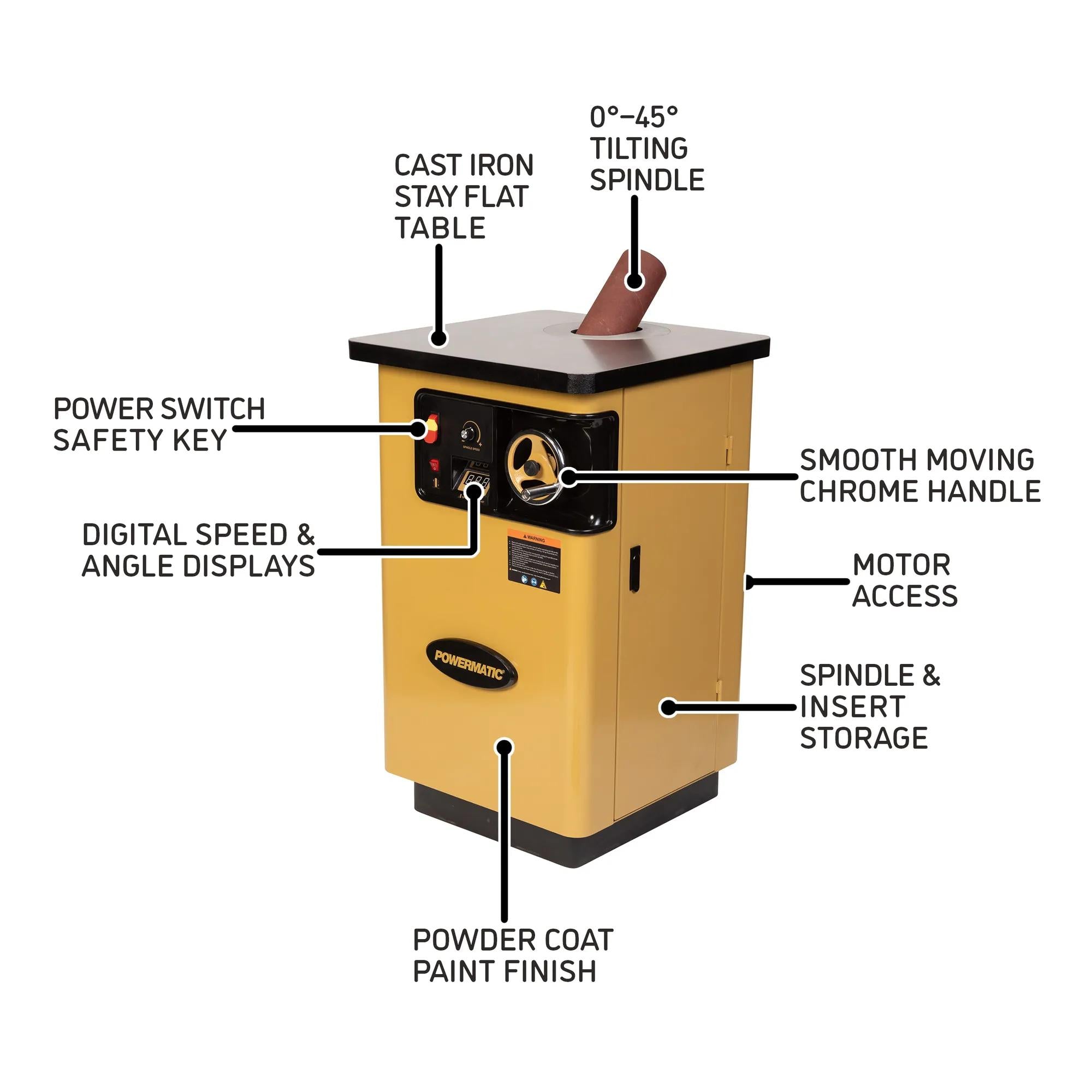

Features
- Large cast iron stay-flat table (24-1/2" × 24-1/2") provides stable, accurate support for precision sanding.
- Oscillating spindle action (up to 60 OPM, 1.5" stroke) keeps abrasives cleaner and extends spindle life.
- Variable spindle speeds (600–1,800 RPM) allow control across materials and sanding applications.
- 0°–45° tilting spindle enables accurate angled and beveled sanding.
- Digital readout displays speed and angle for precise, repeatable adjustments.
- Supports spindle sizes from 1/4" to 4" for broad sanding versatility.
- Paddle switch with safety key provides intuitive control and added operator safety.
Specifications
| SKU | PM1-266 |
|---|---|
| Dust Port Outside Diameter (in.) | 4 in. |
| Gross Weight | 396 |
| Input Power | 115V |
| Model Number | OSS10 |
| Motor HP | 1 |
| Net weight | 335 |
| Oscillations Per Minute | 60 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Spindle Speed RPM | 600 to 1800 |
| UPC | 019907741220 |
| Warranty | 5 Year |
