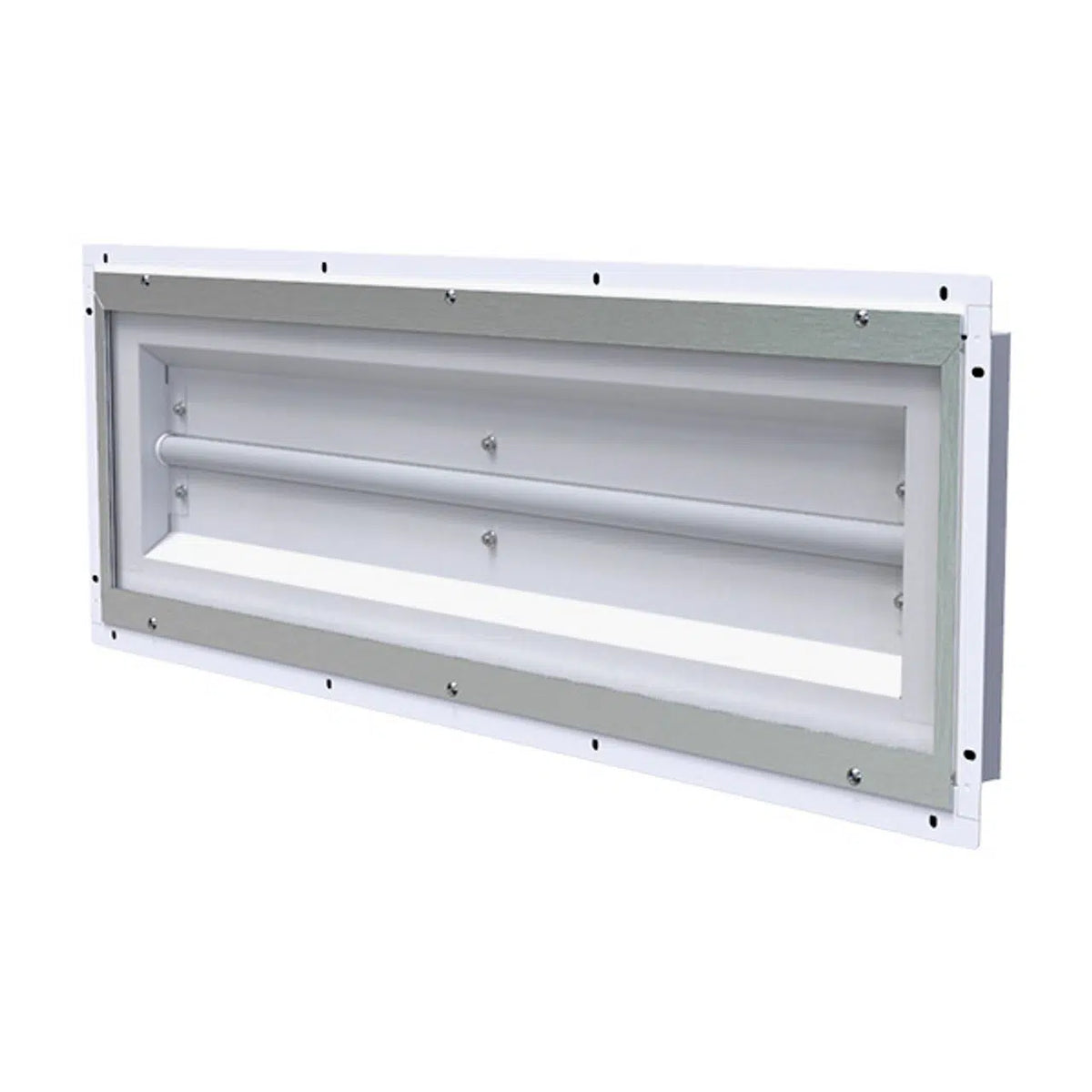

This LE485E is a wide housing 4' paint booth light fixture with 1 row of lighting. This is the same footprint as a 390440-3546 (4 foot 4 lamp T8 fluorescent) and the 390440-LEDS5 with the same light output. The LE485E series has a bolt on lens and does not require the relay switch to be wired back. The premise with ETL is that the LED fixture does not require on going maintenance (revamping and ballast changes) therefore the lens should not be open unless there is a failure. The fixture has a 5 year warranty, if the board or driver fail we will replace at no cost in 5 years.
CERTIFICATIONS
UL844 / CSA-C22.2 No.137 (Hazardous)
CI D2, Grps A,B,C,D
CII D2, Grps F,G
Paint Spray Listed
T Code: CI D2, CII D2=T6
UL1598 / CSA-C22.2 No.250 (Wet/Damp)
Lumen Maintenance (L70) >60,000 hrs. (reported)
CRI >80
-25°C to 55°C Ambient (IC / NonIC)
CONSTRUCTION
20 gauge white powder coated steel housing
Silicone free gaskets
4 Ft. length (nominal)
Clear, tempered glass lens access panel
1/2” NPT Hub(s)
Weights: Min: 42 lbs. / Max: 68 lbs.
ELECTRICAL
120-277VAC
6kV Built-in driver surge protection
FEATURES
Optional Dimming: 0-10V Recess mount - Front access
Withstands up to 71°C bake cycle for 90 minutes with fixture power interlock off
Emergency/Battery backup option available
Fits in the same cutout as Slim Light and 400 Series fluorescent fixtures
