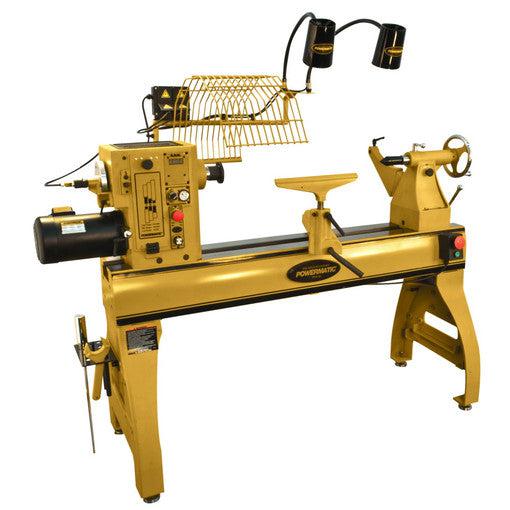

Powermatic - 4224B Lathe, 3HP 1/3PH 220V

Powermatic - 4224B Lathe, 3HP 1/3PH 220V

Regular price
$8,899.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Powermatic 1794224K Description

    The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.

    Powermatic 1794224K Features

    • Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
    • Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
    • Vacuum system provides quick method of chucking bowl blanks
    • 15-amp quad receptacle for easy reach of powered accessories
    • Two 100W task lamps provide ideal lighting
    • Air nozzle with quick connect for clearing dust/chips
    • Set of dead centers which hold a spindle for visual comparison
    • Laser etched quill is self ejecting.
    • Two position mount for the optional bed extension
    • Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers

    Powermatic 1794224K Specifications

    Motor Phase 3
    Speed Range 40-3500
    Spindle Threads (In. x TPI) 1-1/4" x 8 TPI
    Centerline of Spindle to Floor (In.) 44
    Spindle Bore 5/8
    Headstock Movement Full Length of Bed
    Wiring Remarks VFD will accept 1 or 3 phase power
    Prewired Voltage (V.) 230 only
    Spindle Taper MT-2
    Number of Indexing Positions 98
    Swing Over Tool Rest Base (In.) 21
    Motor Power (HP) 3
    Outboard Turning 88
    Distance Between Centers (In.) 42
    Motor Current (Amps) 10
    Spindle Speeds High 135-3500/Med 80-2000/Low 40-970
    Ram Travel Quill Travel 4-1/2
    Bed Construction Cast Iron
    Recommended Circuit Size (Amps.) 30
    Quill Taper MT-2
    Style (Type) Leg Stand
    Tailstock Bore 3/8
    Outboard External Threads (In. x TPI) M35 x 1.5 UNF
    Swing Over Bed (In.) 24
    Motor Voltage (V.) 230 only
    Bed Gap (In.) 2-1/2

    ;
