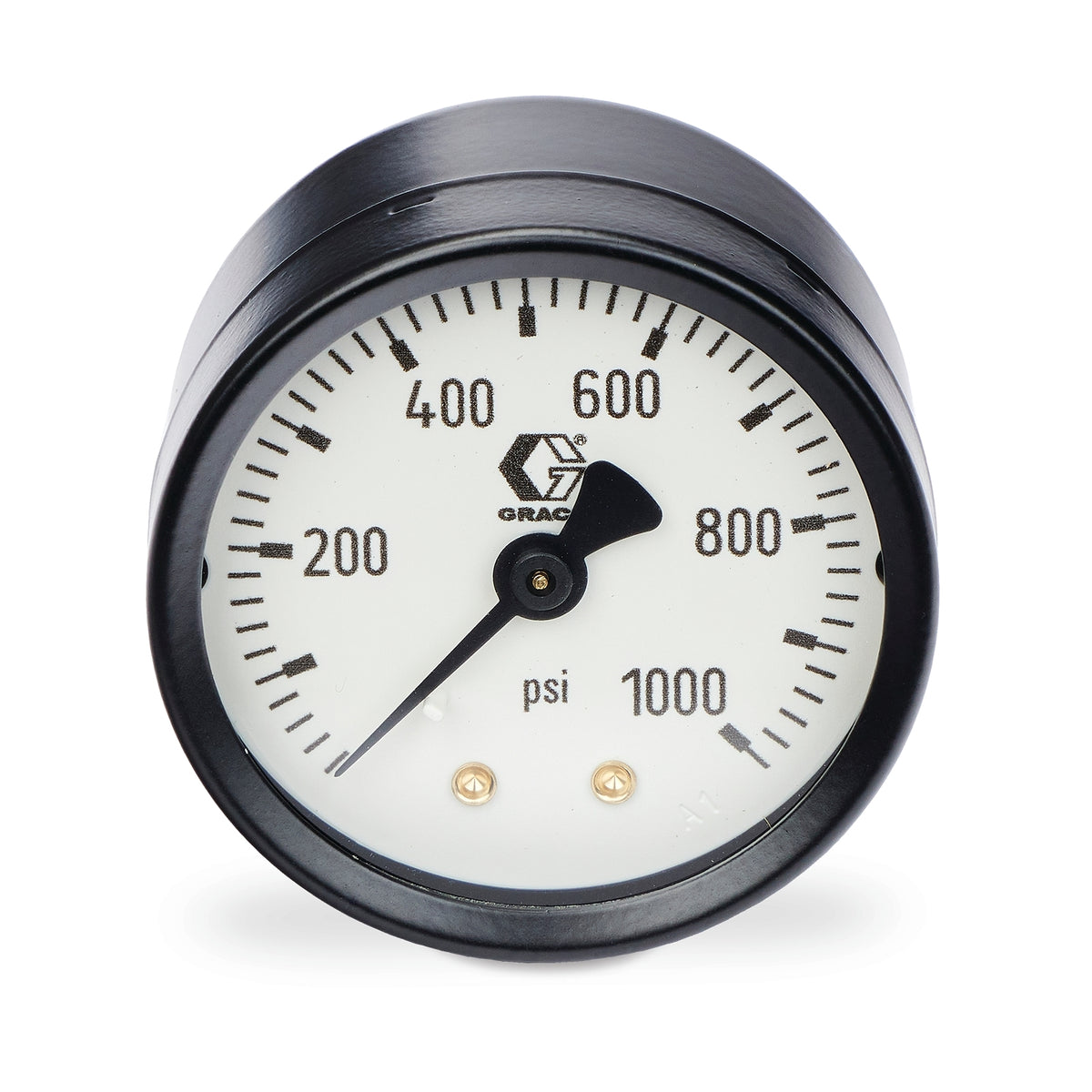

Pressure Gauge, 0-1000 psi

Pressure Gauge, 0-1000 psi

Regular price
$51.75
Sale price
$51.75
Quantity must be 1 or more


For use with Maxi-Flo Electric Pumps.

  • Gauge, 0-1,000 psi

  • Lubriquip part number 493-020-241
UPC Product: 00633955327641
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.85 IN   |  4.699 CM
Length: 1.9 IN   |  4.826 CM
Width: 1.9 IN   |  4.826 CM
Volume: .004 FT3   |  0 M3
Chargeable Weight: .26 LBS  | .12 KG

Technical Specifications

Dial Diameter (cm) 5
Dial Diameter (in) 2
Dial Diameter (mm) 51
For Use With Maxi-Flo Pumps
Inlet Size (cm) 0.3175
Inlet Size (in) 1/8
Inlet Size (mm) 3.175
Inlet Thread Type NPT
Maximum Working Pressure (bar) 69
Maximum Working Pressure (kPa) 6900
Maximum Working Pressure (psi) 1000
Overall Height (cm) 4.45
Overall Height (in) 1.75
Overall Height (mm) 44.45
Overall Width (cm) 5.08
Overall Width (in) 2
Overall Width (mm) 50.8
Type Standard
Maximum Working Pressure (MPa) 6.9

;
