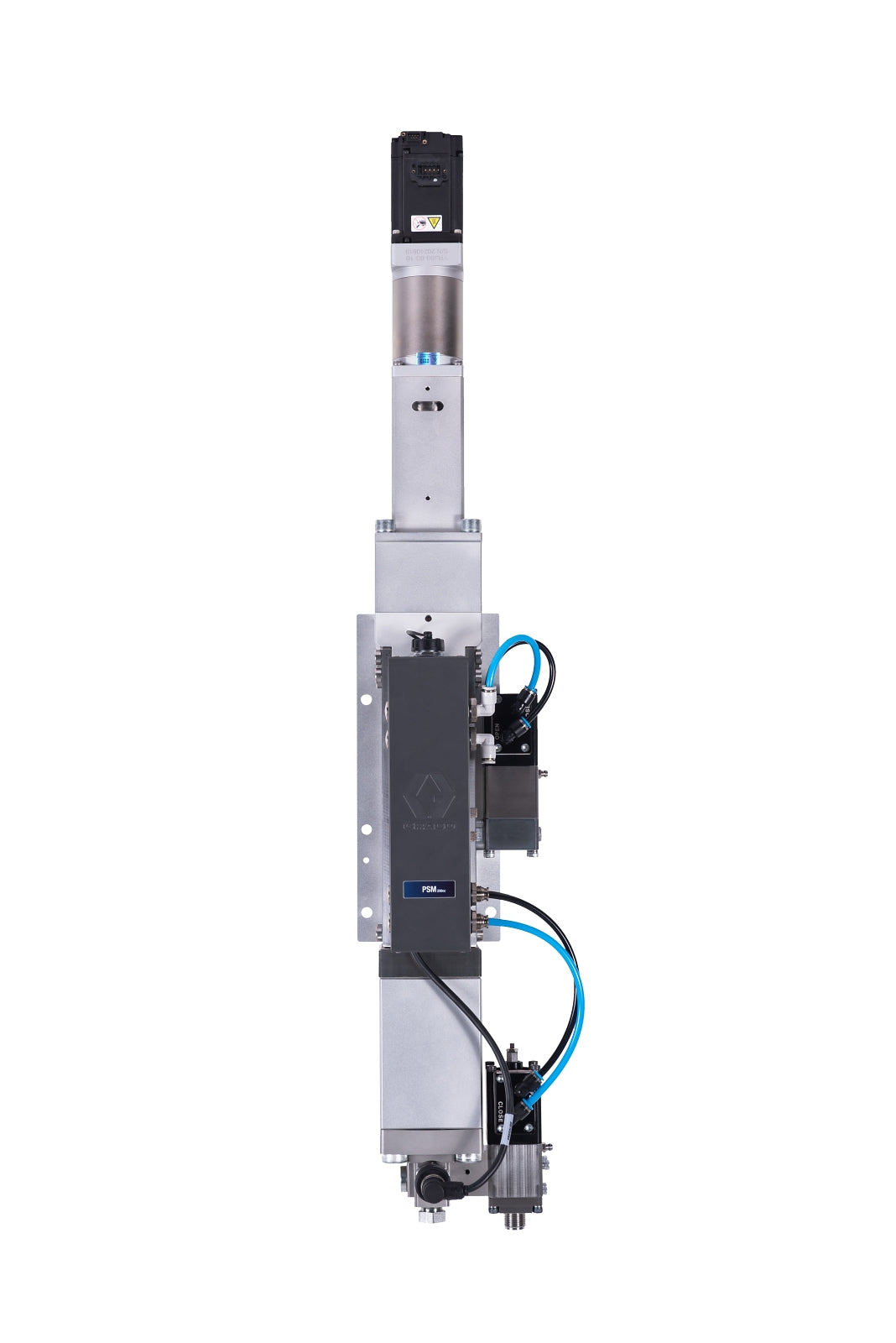

The Precision Shot Meter (PSM) is a high-accuracy, single-component dispensing system designed for precise and repeatable dispensing of a wide range of materials. Available in multiple sizes to meet the needs of your specific application, from the smallest detail work to the largest jobs, the PSM system delivers shot accuracy of +/-1%. Graco’s PSM line offers greater accuracy, less downtime and easier maintenance, facilitating greater productivity and ultimately bottom-line results.
The PSM, one component precision shot meter offers the same repeatable accuracy that automotive, electronics, and telecommunications manufacturers need.
Features
- Ambient and warm melt availability and shot size ranging from 0.1cc to 200cc covers industrial materials and chemistries like Epoxy, TIMS, Sulfide, Silicone, Polyurethane, and more.

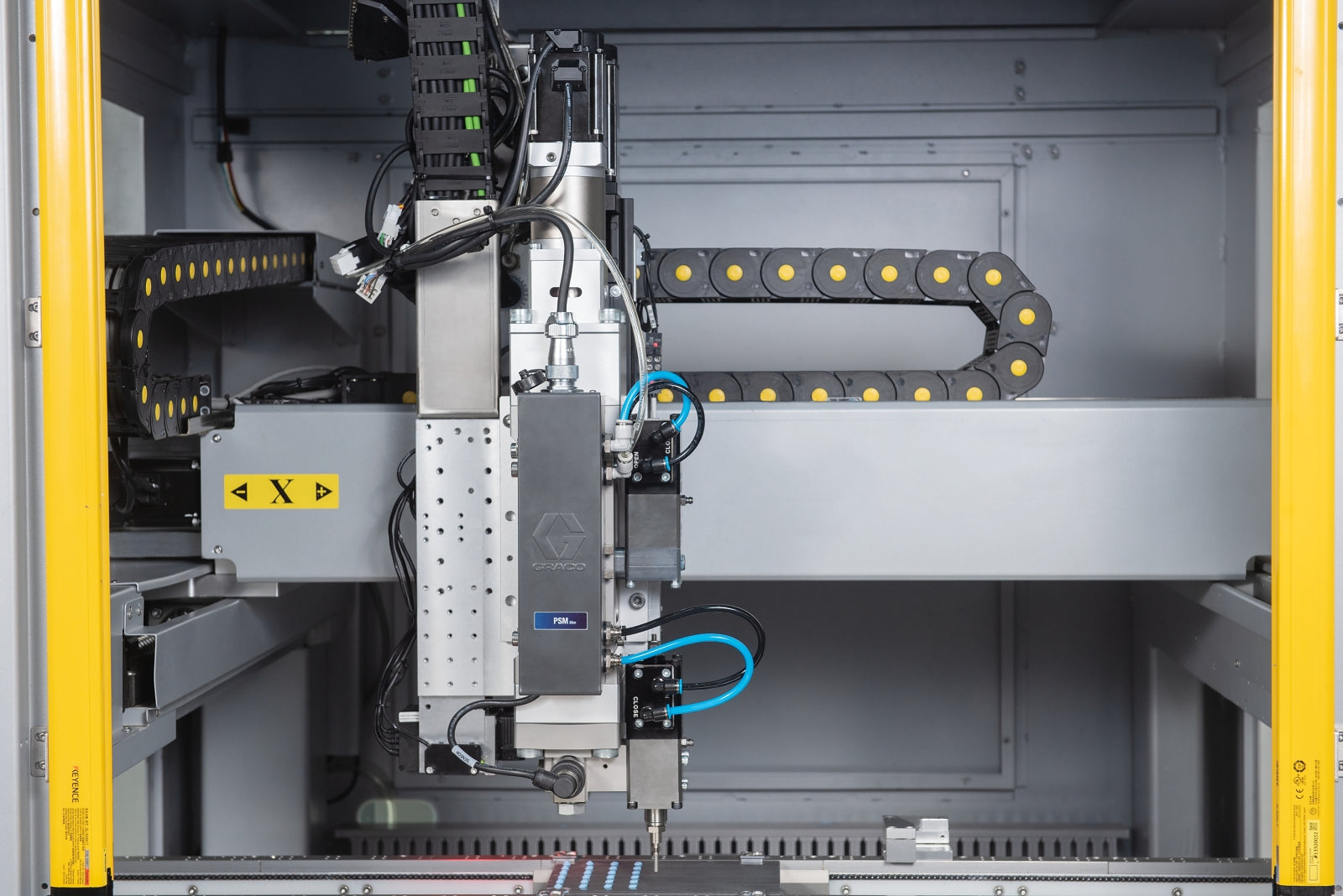

- Lightweight and compact design is ideal for robot and motion table mounting.

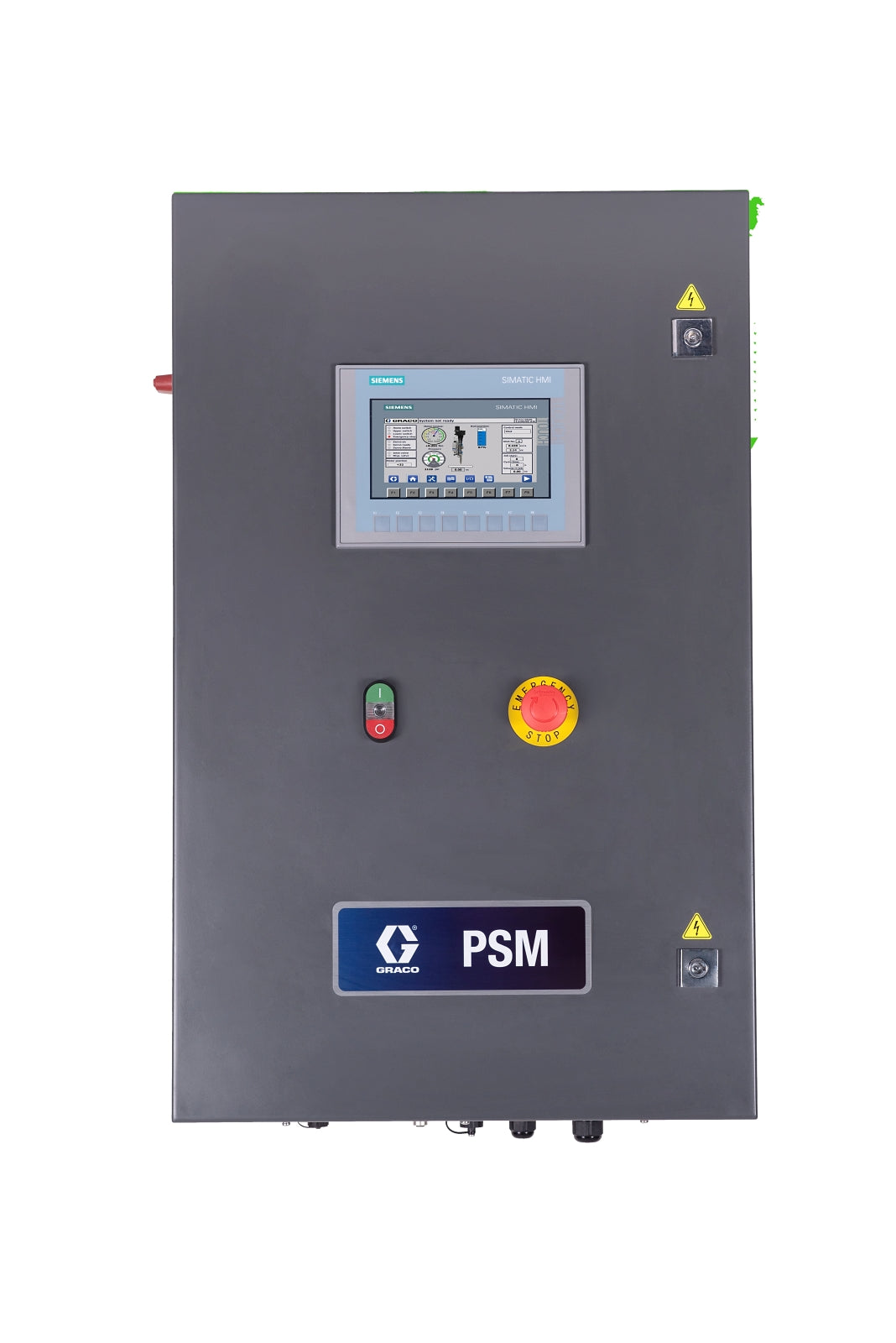

- Easy PLC integration with options for I/O, Profinet or EtherNet/IP.
- First-in-first-out fluid path eliminates dead zones and downtime due to clogged valves.
- Servo motor controlling dispense along with a high precision meter ensures +/- 1% shot repeatability. The materials go where you need them to go. Every time.
Specifications
| Air Inlet Size (in) | 1/4 |
| Amperage (A) | 10 |
| Application | Bonding, Sealing, Vibration Damping, Hemming, Potting, Gasketing, Thermal Interface |
| Capacity (cc) | 50 |
| Compatible Material | Epoxy, Silicon, Acrylic, Polyurethane, Polysulfide, Thermal Interface Material |
| Controls | Yes |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Gateway | PROFINET User Interface |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 158 |
| Maximum Fluid Viscosity (cP) | 1000000 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Fluid Viscosity (cP) | 20 |
| Model | PSM-50 |
| Shot Size Range (cc) | 0.2-50 |
| Type | Dispensing System |
| Voltage (V) | 200-240 VAC, 1–ph |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6 |
| Amperage (A) | 10 |
| Application | Bonding, Sealing, Vibration Damping, Hemming, Potting, Gasketing, Thermal Interface |
| Capacity (cc) | 50 |
| Compatible Material | Epoxy, Silicon, Acrylic, Polyurethane, Polysulfide, Thermal Interface Material |
| Controls | Yes |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Frequency (Hz) | 50/60 |
| Gateway | PROFINET User Interface |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 70 |
| Maximum Fluid Viscosity (cP) | 1000000 |
| Maximum Working Pressure (bar) | 206 |
| Minimum Fluid Viscosity (cP) | 20 |
| Model | PSM-50 |
| Shot Size Range (cc) | 0.2-50 |
| Type | Dispensing System |
| Voltage (V) | 200-240 VAC, 1–ph |
