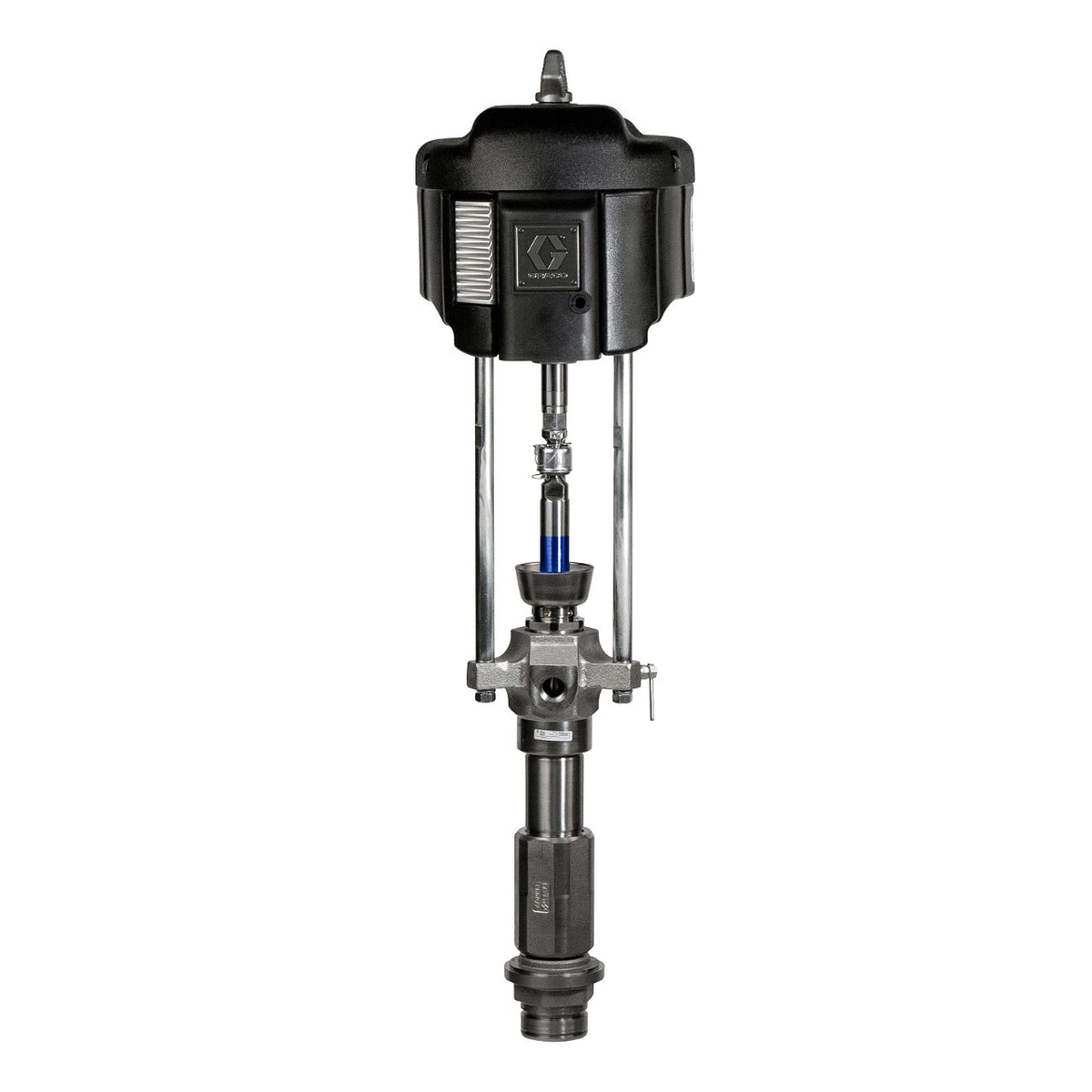

Reliable, air driven pump supplies one component material to industrial metering and dispensing systems. Lower with ELITE CONSTRUCTION™ withstands highly abrasive applications.
Check-Mate® pump with ELITE™ lower withstands highly abrasive thermal interface materials (TIMs), silicones, urethanes, and epoxies.
Specifications
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Adhesive, Sealant |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Model | Check-Mate |
| Overall Depth (in) | 14 |
| Overall Width (in) | 14 |
| Pump Ratio | 29:1 |
| Type | Piston Pump Package |
| Weight (lb) | 128 |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Carbon Steel, Electroless Nickel Plated Ductile Iron, Zinc & Chrome Plating, Electroless Nickel Plating, UHMWPE, Nitrile Rubber, PTFE, Polyurethane, Carbon-Filled PTFE, Ceramic, Tungsten Carbide |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Adhesive, Sealant |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 80 |
| Model | Check-Mate |
| Overall Depth (mm) | 355.6 |
| Overall Width (mm) | 355.6 |
| Pump Ratio | 29:1 |
| Type | Piston Pump Package |
| Weight (kg) | 58 |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Carbon Steel, Electroless Nickel Plated Ductile Iron, Zinc & Chrome Plating, Electroless Nickel Plating, UHMWPE, Nitrile Rubber, PTFE, Polyurethane, Carbon-Filled PTFE, Ceramic, Tungsten Carbide |
