More Muscle, Same Garage-Friendly QuickJack Footprint
The QuickJack 6000TL Portable Car Lift raises the standard for home garage lifting, track-day service, and portable auto repair. With a 6,000-lb. lifting capacity, 24-inch lift height, and compact TL frame dimensions, the 6000TL gives users more capacity than the previous 5,000-lb. platform without taking over the garage.
This upgraded portable car lift is built for users who want stronger lifting capability while keeping the fast setup, open-center access, and easy storage that made QuickJack a favorite. It is a smart fit for home garages, professional repair bays, detailing spaces, and anyone who needs real vehicle access without installing a permanent lift.
Upgraded Capacity Without Enlarging the Frame
The 6000TL boosts lifting capacity to 6,000 lbs. while keeping the convenient 70-inch frame length, 11-inch frame width, and 3-inch collapsed height. That means users get more strength without losing the space-saving benefits that matter in smaller garages and crowded shop environments.
With 24 inches of lifting height, the 6000TL provides the clearance needed for brake service, tire work, oil changes, inspections, detailing, suspension work, and general maintenance. It is compact enough to store easily and strong enough to become the lift you reach for constantly.
Smoother Hydraulic Performance Right Out of the Box
The redesigned electric/hydraulic power unit uses a pressure-compensated flow divider to help both frames lift and lower in sync. Factory preassembled hydraulics save setup time and help deliver clean, dialed-in performance from the first lift cycle.
One-handed pendant control makes operation simple, and the automatic dual-position safety locks engage at mid-rise and full-rise heights as the frames lift. To lower the vehicle, flip the lock bar and bring the system down in a smooth, controlled motion.
Reinforced Where Portable Lifts Work the Hardest
The 6000TL includes thicker cross members, improved weld geometry, and upgraded pivot joints to increase rigidity and alignment under heavier loads. Those structural improvements help the lift feel more confident during repeated service work and heavier vehicle maintenance.
QuickJack accessories can expand the 6000TL’s versatility for more vehicle types and garage setups. For users who want a stronger standard-length portable car lift without moving into extended frames, the 6000TL is the everyday workhorse in the new TL lineup.
6,000-lb. Capacity
The upgraded TL platform lifts up to 6,000 lbs. without increasing the standard frame dimensions.
24-Inch Lift Height
Provides useful undercar access for tire service, brakes, detailing, oil changes, and general maintenance.

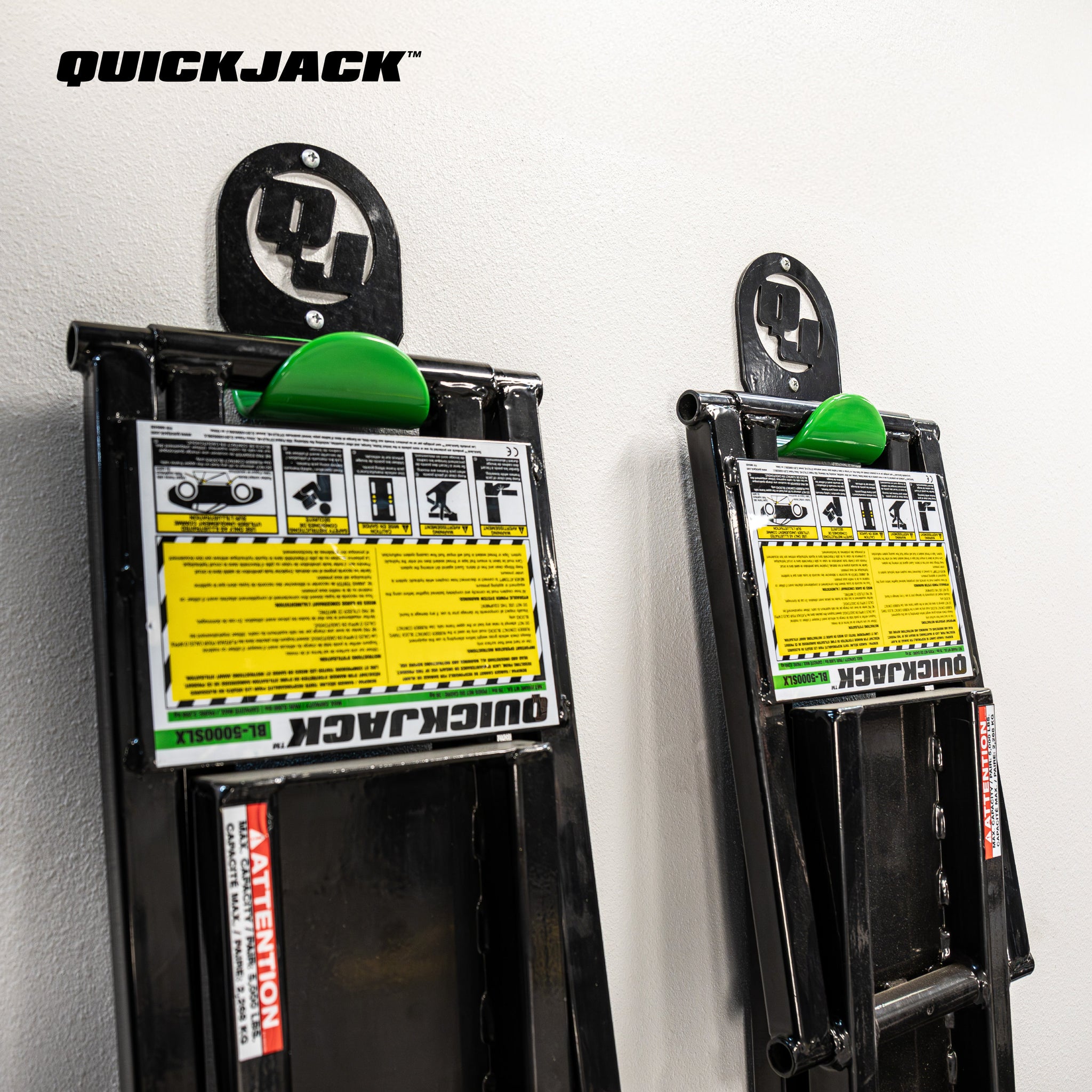

3-Inch Collapsed Profile
Keeps the low QuickJack profile for easier storage and positioning in garages with limited space.
Factory Preassembled Hydraulics
Hydraulic components arrive preassembled to reduce setup time and get users lifting faster.

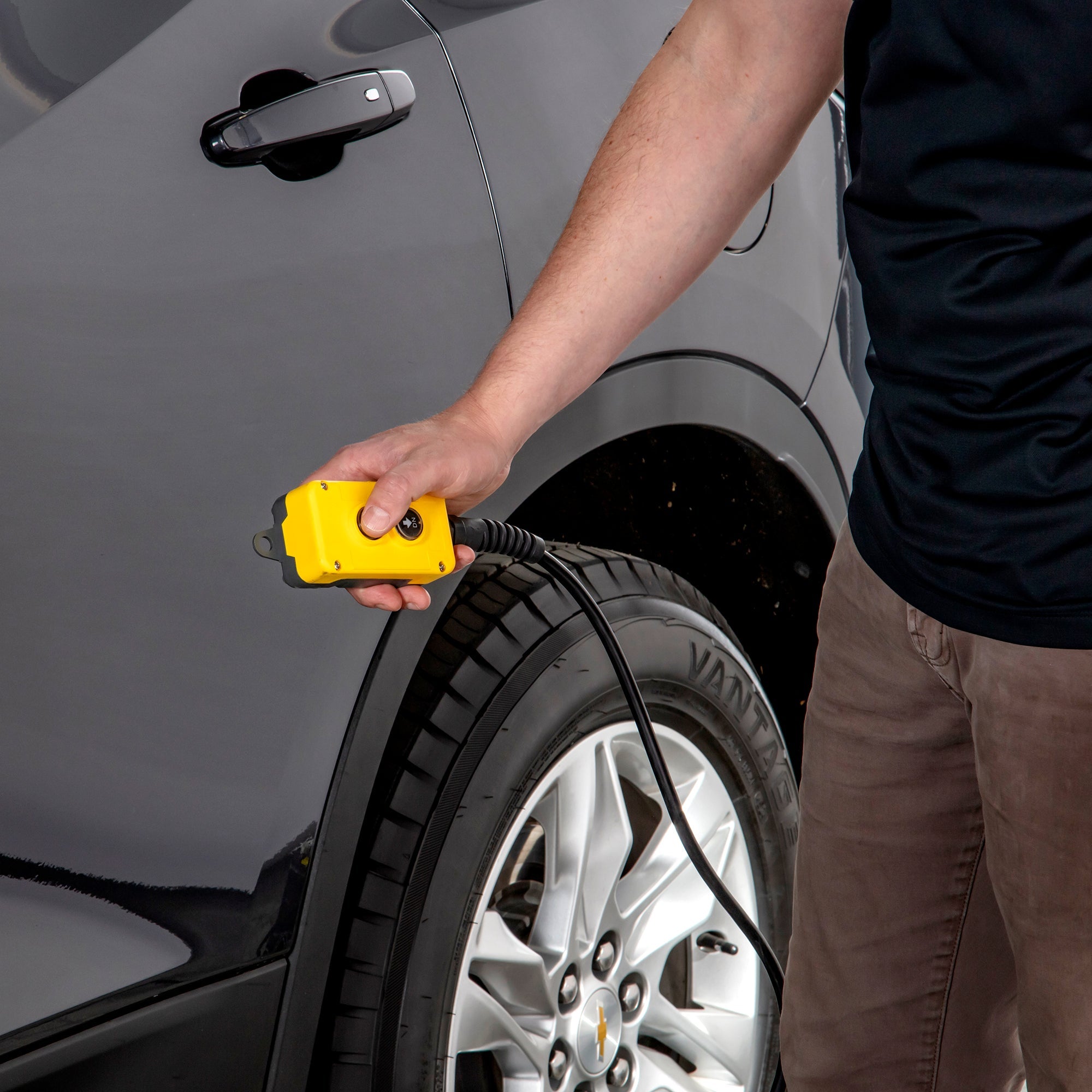

One-Handed Pendant Control
Simple button-operated control lets users raise and lower the lift without cranking, pumping, or crawling around.
Automatic Safety Locks
Updated dual-position locks engage automatically at mid-rise and full-rise positions during lifting.
Recommended Add-ons
Features
- 6,000-lb. lifting capacity
- 24-inch lifting height
- 70-inch frame length
- 11-inch frame width
- 3-inch collapsed height
- Standard-length TL portable car lift design
- Factory preassembled hydraulics
- Pressure-compensated flow divider
- One-handed pendant control
- Automatic dual-position safety locks
- Thicker cross members
- Improved weld geometry
- Upgraded pivot joints
- Open-center access for undercar service
- Compatible with QuickJack accessory lineup
Specifications
| Lifting Capacity | 6000 lb |
| Lowered Height with 2 Inch Block | 3.5 in |
| Lifting Height with 2 Inch Block | 21 in |
| Lifting Height with 3 Inch Block | 22 in |
| Max Lifting Height | 22 in |
| Lift Height with Adapters | 24 in |
| Lift Height with Adapters and Pin | 26.75 in |
| Lifting Time | 30 seconds |
| Min Lift Point Spread | 37 in |
| Max Lift Point Spread | 60 in |
| Frame Width Each | 11 in |
| Frame Length Each | 70 in |
| Frame Weight Each | 78 lb |
| Horsepower | 2 HP |
| Sound Level | 70 dBA |
| Shipping Method | Parcel |
Manuals & Downloads
- QuickJack 6000TL 8000TL Series Portable Car Lift Brochure
- QuickJack 3500SLX 6000TL 6000TLX 8000TL 8000TLX 6000EXT Assembly Operation Manual
- QuickJack Limited Warranty
