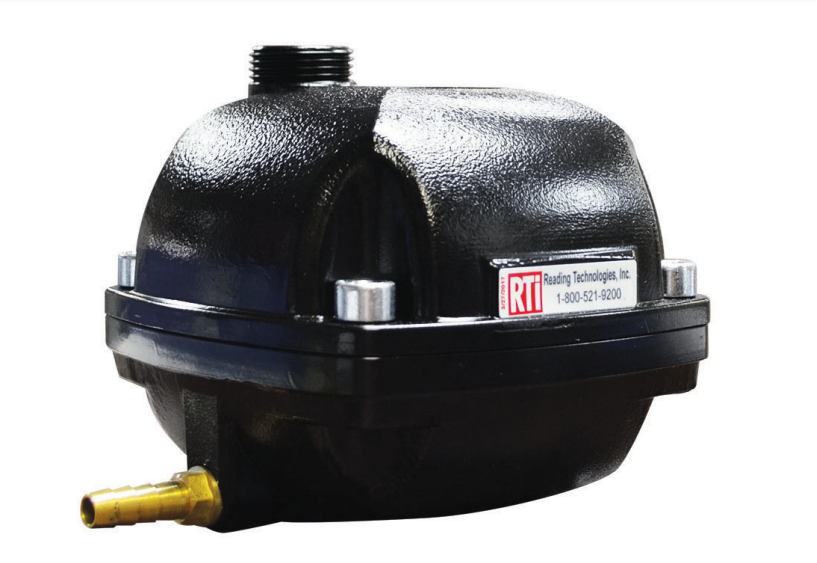

The RTi-MGD is the optimum choice in compact energy saving condensate drains. Unlike timed or electronic drains which require electricity to operate, the RTi-MGD operates using a magnetic level sensor providing energy saving zero air loss operation without the need for a power source. It’s perfectly suited for coolers, refrigerated dryers, liquid separators, and especially compressed air filters (due to its compact size). The RTi-MGD meets the demands of most applications regardless of the condensate flow. It fits any compressed air filter regardless of size without any set up or adjustment.
Features •Extremely compact, easy to install in tight locations •No electricity required •No operating costs, perfect for all applications, especially those where electricity is not available •Reliable operation with most condensate • Rugged aluminum housing; lightweight, yet strong and durable
Technical Specifications
Max. drainage capacity/output
54 gallons per hour
Inlet connection height
½"
Outlet connection
⅛"
Min. system pressure
0 PSI
Max. system pressure
230 PSI
Min. medium temperature
34°F
Max. medium temperature
122°F
Type of operating valve
2/2 way, direct acting valve assy
Valve seals
Viton (FPM)
Housing material
Corrosion resistant Aluminum
Height
5.39"
Width
4.72"
