Coxreels® V Series — V Series spring driven vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models have dual plumbing for vacuum extraction while simultaneously powering pneumatic tools such as grinders and sanders in an enclosed efficient system.

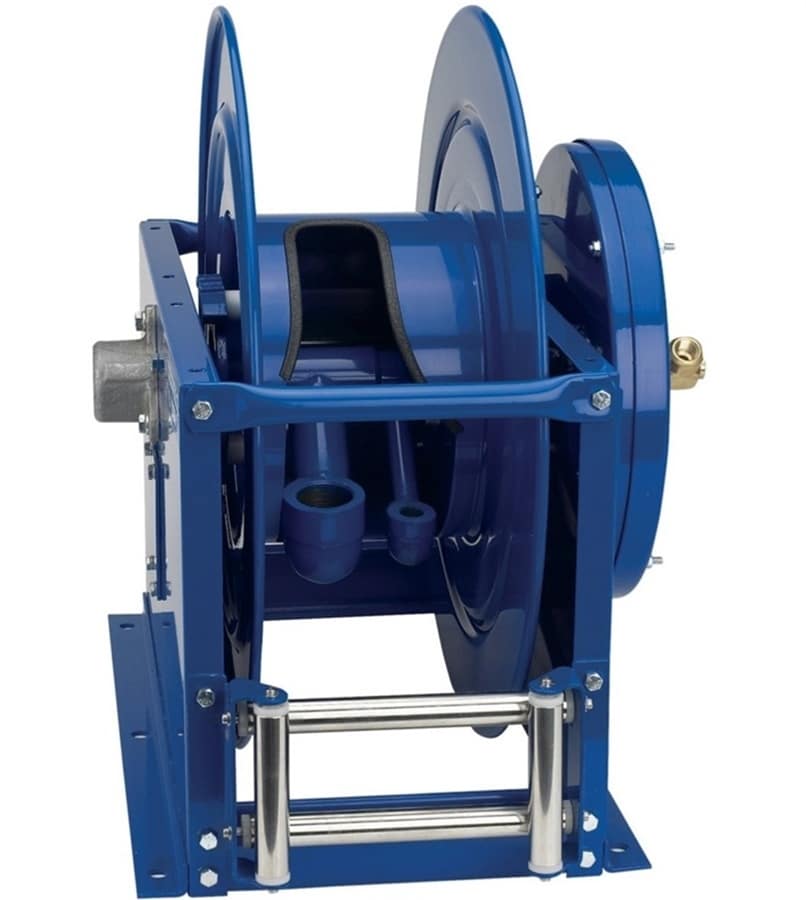

Model VA-DLPL-825: Dual Hose, Vacuum Only Spring Rewind: 1 1/2" I.D., 50' hose capacity, less hose
FEATURES
- Enclosed factory tuned & matched cartridge-style spring motor.
- Sturdy box-style frame with heavy duty steel cross supports to all four corners for extra rigidity.
- Low profile outlet riser & open drum slot design, provide a non-crimping, flat smooth hose wrap.
- Self-lubricated flange bearings & multi-position lock ratchet.
- Lubricated factory matched cartridge-style spring motor.
- Heavy duty 1" O.D non-corrosive stainless steel rollers.
- Cast iron lock ring with non-sparking bronze pawl.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- BOX STYLE FRAME DESIGN - Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- STEEL ROLLERS - Heavy duty 1" stainless steel pinch-proof rollers.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet, and top frame cross-brace.
| MODEL | VA-DLPL-825 |
| REEL TYPE | Spring Driven |
| I.D | 1 1/2" |
| LENGTH | 25' |
| HOSE | No |
| SHIP WEIGHT (LBS) | 107 |
| OVERALL DIMENSIONS (W) (H) (L) | 20.13" (W) 24.5" (H) 26.38" (L) |
| MOUNTING PATTERN (M) (N) | 14" (M) 22" (N) |
| BASE (X) (Y) | 15.38" (X) 25" (Y) |
