Coxreels® T HI-VIS Series — HV "High Visibility" Safety Hose Series powers up the safety of your reel. The HV Hose will add awareness and visibility to your hose creating the safest environment possible. To maximize your safety to the highest level, add EZ-Coil controlled retraction to your Coxreels.

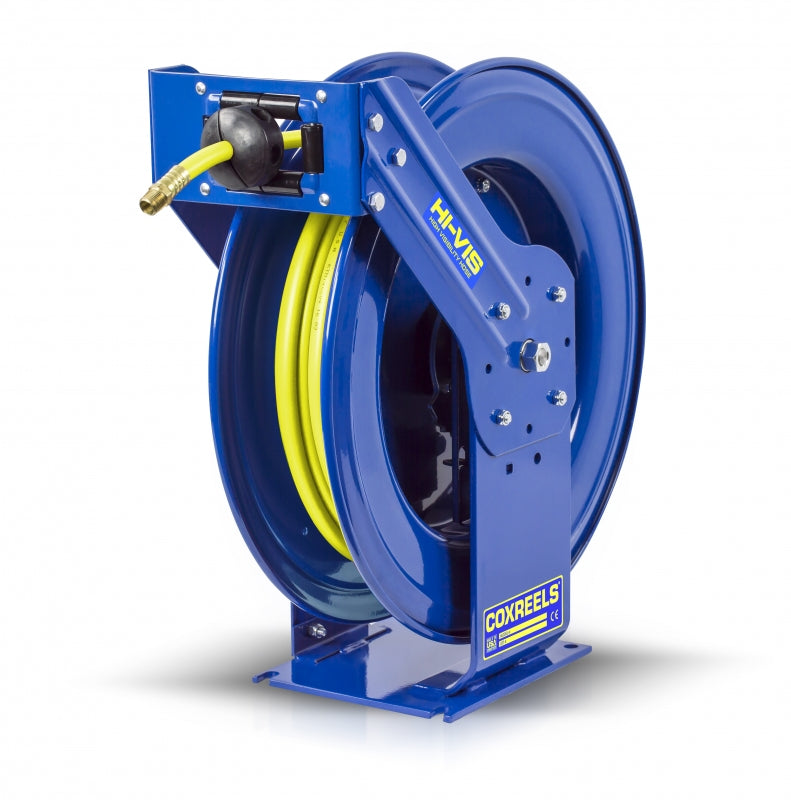

Model TSH-N-450-HV: Supreme Duty Spring Rewind Hose Reel for air/water: 1/2" I.D., 50' high visibility safety hose, 300 PSI
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- OTHER FEATURES INCLUDE - Long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, sturdy permanently lubricated precision bearings, and versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
| MODEL | TSH-N-450-HV |
| REEL TYPE | Spring Driven |
| I.D | 1/2" |
| O.D | 13/16" |
| LENGTH | 50' |
| HOSE | Yes |
| MAX PSI | 300 |
| SHIP WEIGHT (LBS) | 63 |
| OVERALL DIMENSIONS (W) (H) (L) | 9.38" (W) 21.25" (H) 19.5" (L) |
| MOUNTING PATTERN (M) (N) | 8" (M) 9" (N) |
| BASE (X) (Y) | 7" (X) 8" (Y) |
