Spring Driven Hose Reel 3/4 Inch x 50 Ft 300 PSI Fuel with Hose - Coxreels XTMF-LP-550

Coxreels^® XTM Fuel Series — XTMF "Extreme Duty" Series is designed for high demand industries requiring a level of construction above truck duty. Built with mining, off-road, heavy equipment, and heavy equipment lubrication in mind, the XTM series features the most robust offerings of the reel industry. This series is the combination of all the heavy duty features available inside a solid all-welded box frame, with an integral roller bracket, focused to deliver the toughest reel for the toughest environments and applications. Available for non-aromatic fuels and gasoline.

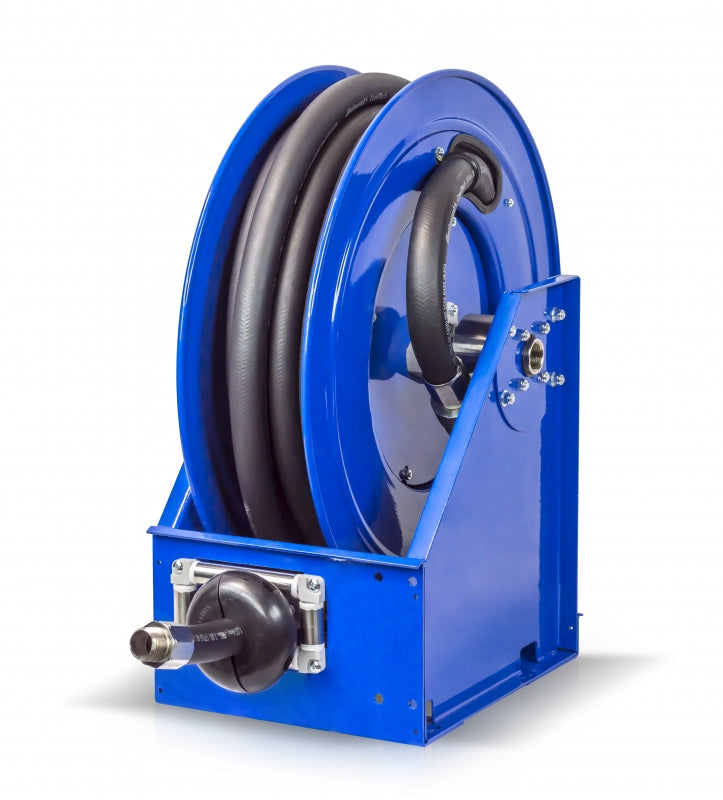

Model XTMF-LP-550: Extreme Duty Spring Rewind Hose Reel: 3/4" I.D., 50' hose capacity, 300 PSI, fuel non-aromatic hose

FEATURES

• Machined from solid brass 90° full-flow NPT swivel inlet for fuel dispensing applications.

• SWIVEL - Machined from solid brass 90˚ full-flow NPT swivel for fuel dispensing applications. Grounding washer on gasoline models.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• BOX FRAME - Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
• STAINLESS STEEL PAWL - Accessible stainless steel pawl & pawl spring on ratchet locking mechanism.
• PRECISION BEARINGS - 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation.
• OTHER FEATURES INCLUDE - Enclosed factory tuned & matched cartridge-style spring motor, long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and stainless steel rollers.
