Stainless Steel EZ-Coil Spring Driven Hose Reel 3/8 Inch x 100 Ft 6000 PSI Breathing Air Less Hose - Coxreels EZ-TBHL-3100

Regular price
$876.00
Sale price
$876.00
Quantity must be 1 or more
Not the hose reel you're looking for?
Browse all Hose Reels →


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Coxreels® T Pure Flow Series — motorized retractions. All Pure Flow hose reels come standard equipped with stainless steel air/fluid paths and stainless steel swivels with non-toxic, food quality grease, ensuring clean,non-contaminated, safe and reliable transfer of breathing air, potable water or other clean fluids.

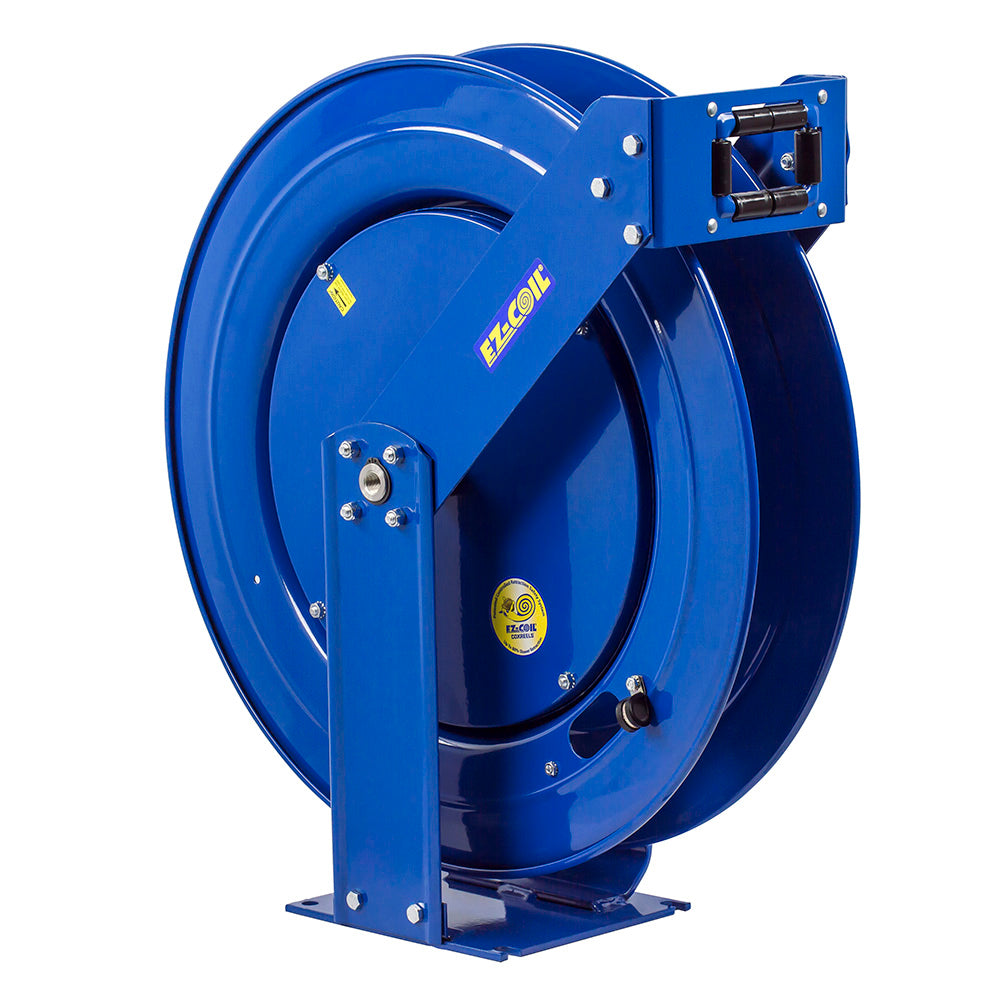

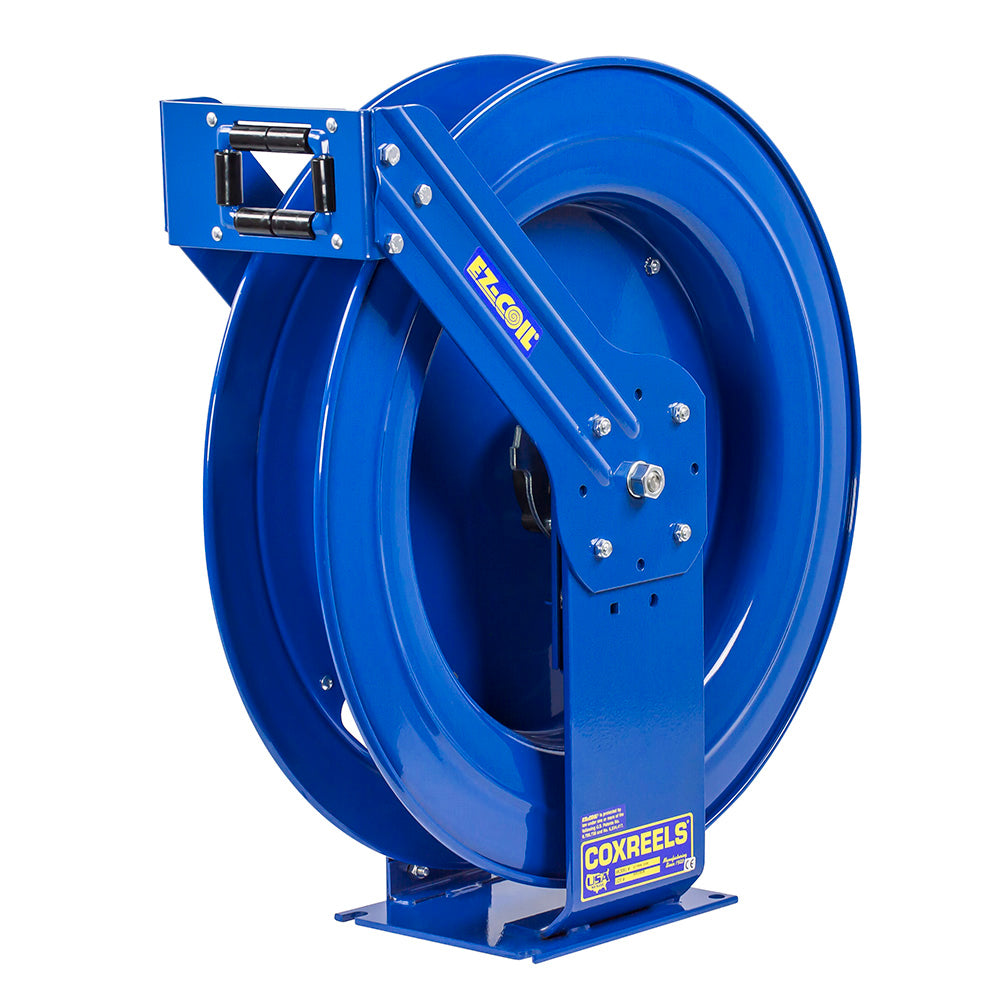

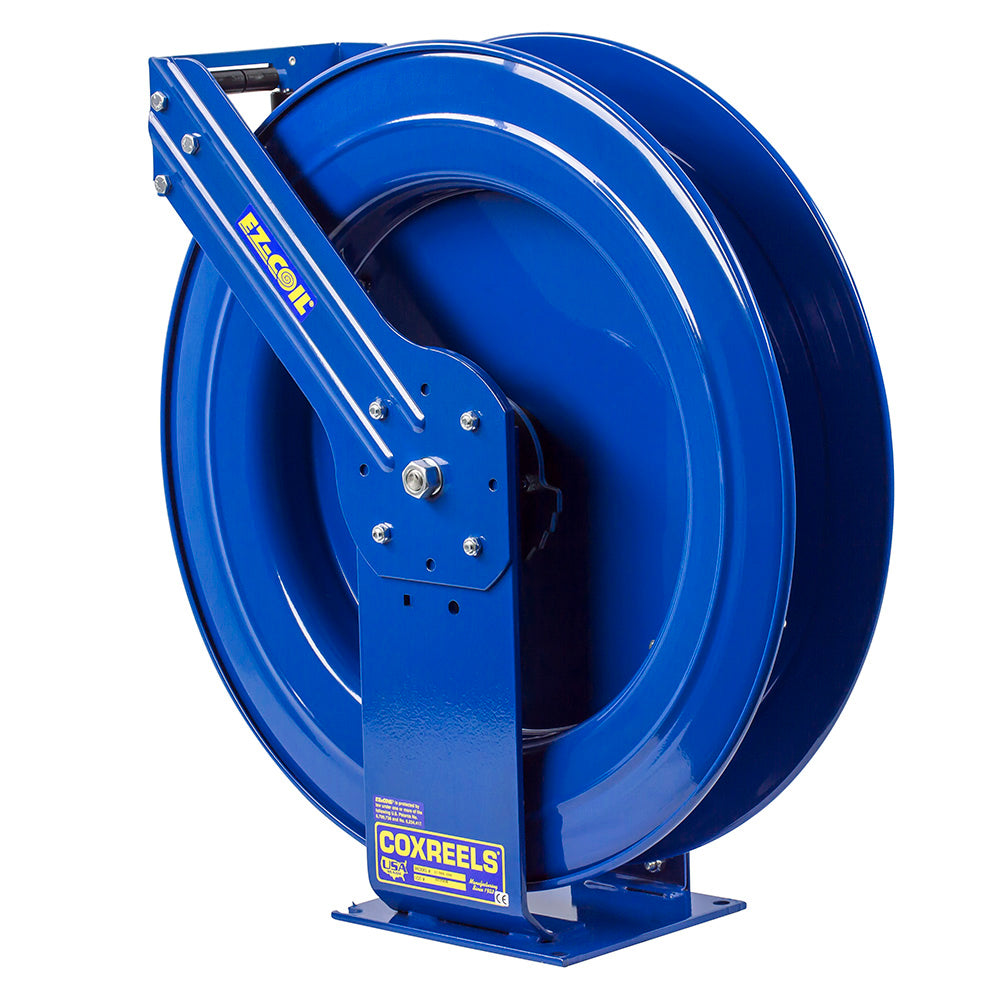

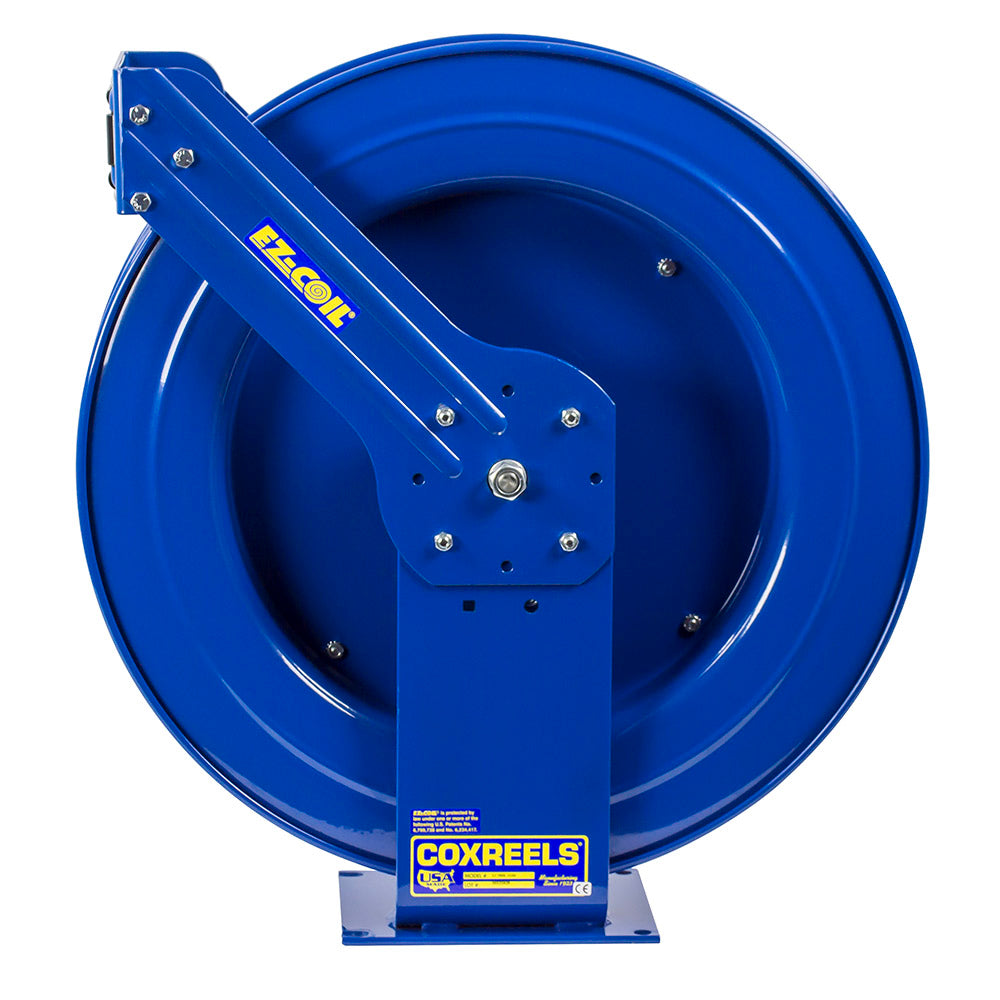

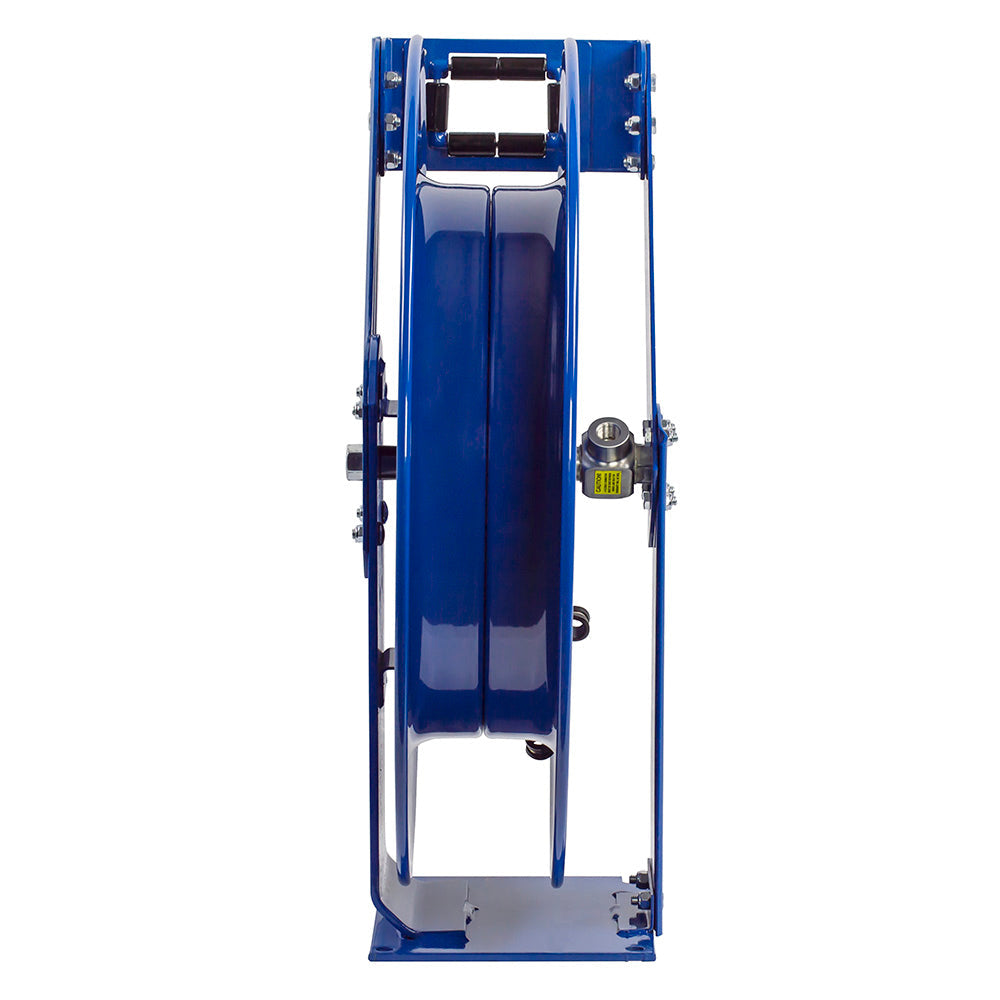

Model EZ-TBHL-3100: Safety Series Spring Rewind Dual Pedestal Hose Reel for breathing air & clean fluids: 3/8" I.D., 100' hose capacity, less hose, 6000 PSI

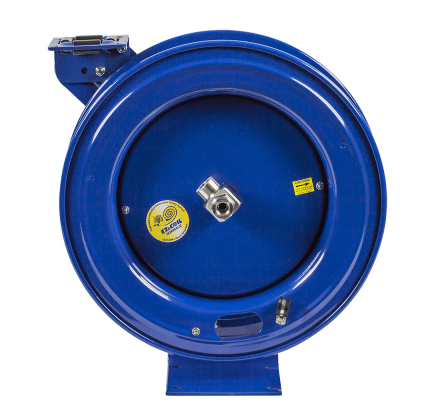

  • SWIVEL - Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90˚ full-flow NPT swivel inlet.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
  • SAFETY STORAGE - Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable guide arm, and sturdy permanently lubricated precision bearings.
MODEL EZ-TBHL-3100
REEL TYPE EZ-Coil Spring Driven
I.D 3/8"
O.D 5/8"
LENGTH 100'
HOSE No
MAX PSI 6000
SHIP WEIGHT (LBS) 85
OVERALL DIMENSIONS (W) (H) (L) 9.38" (W) 25.5" (H) 24" (L)
MOUNTING PATTERN (M) (N) 7" (M) 8" (N)
BASE (X) (Y) 8" (X) 9" (Y)
