Coxreels® P-SS Series — SS Series "Stainless Steel" spring driven hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

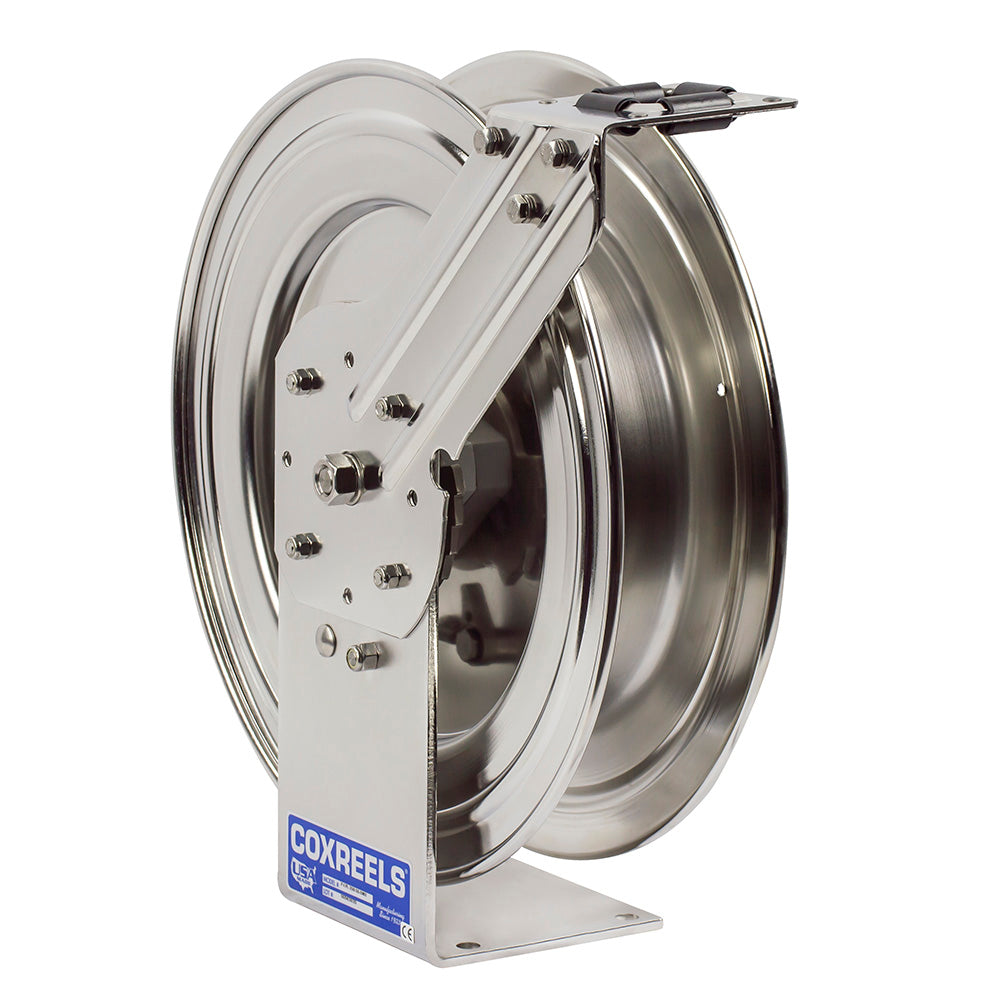

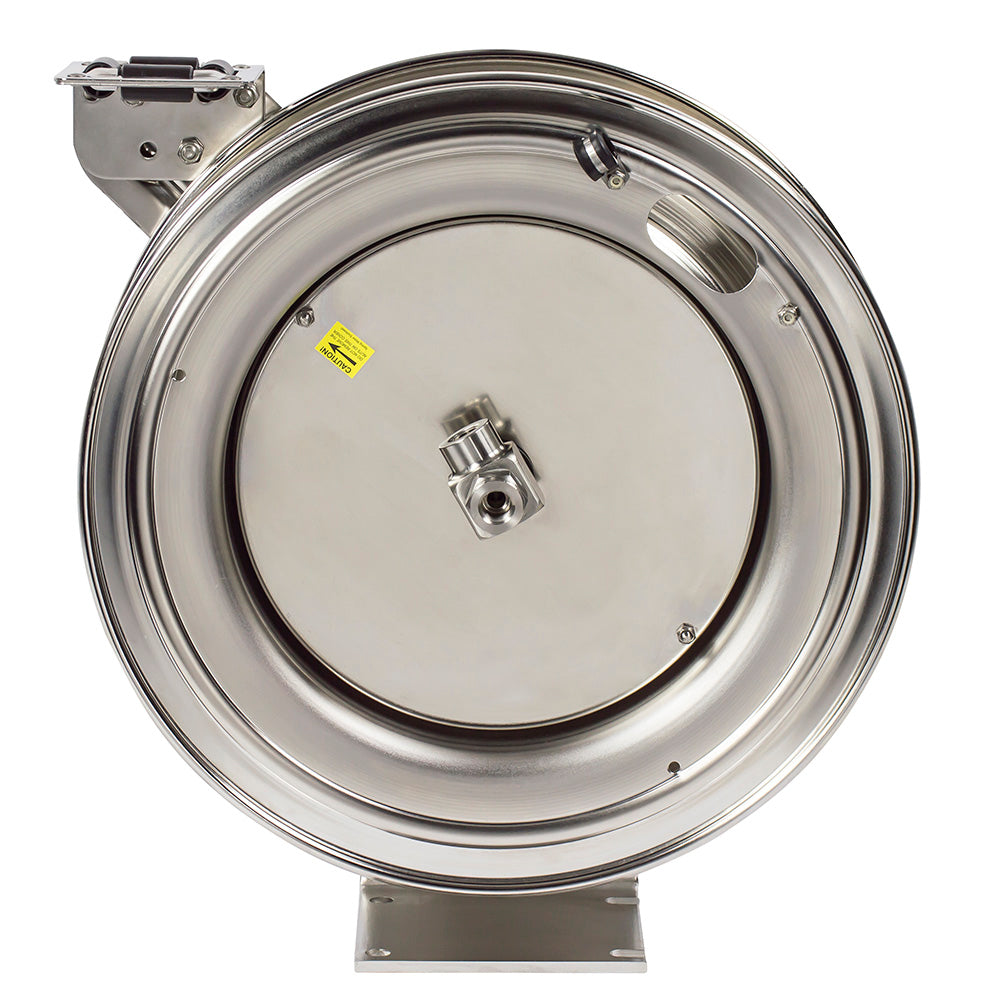

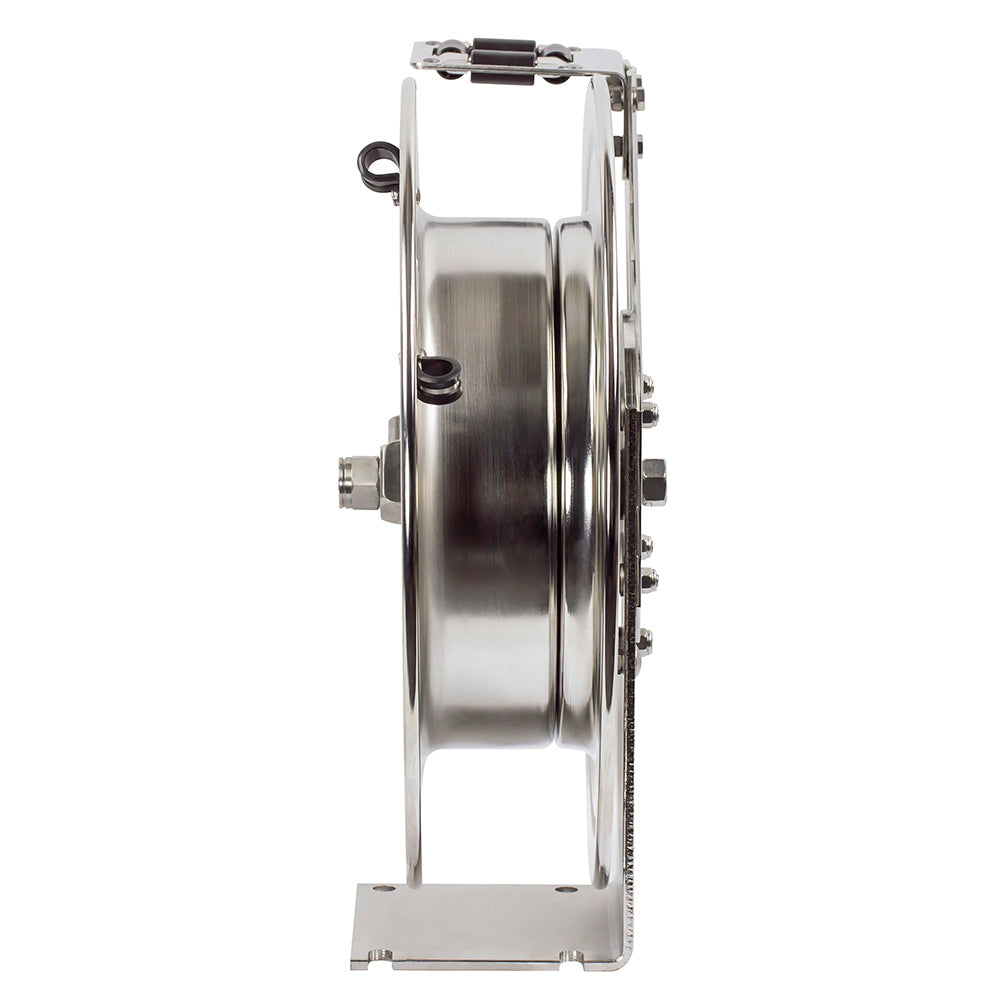

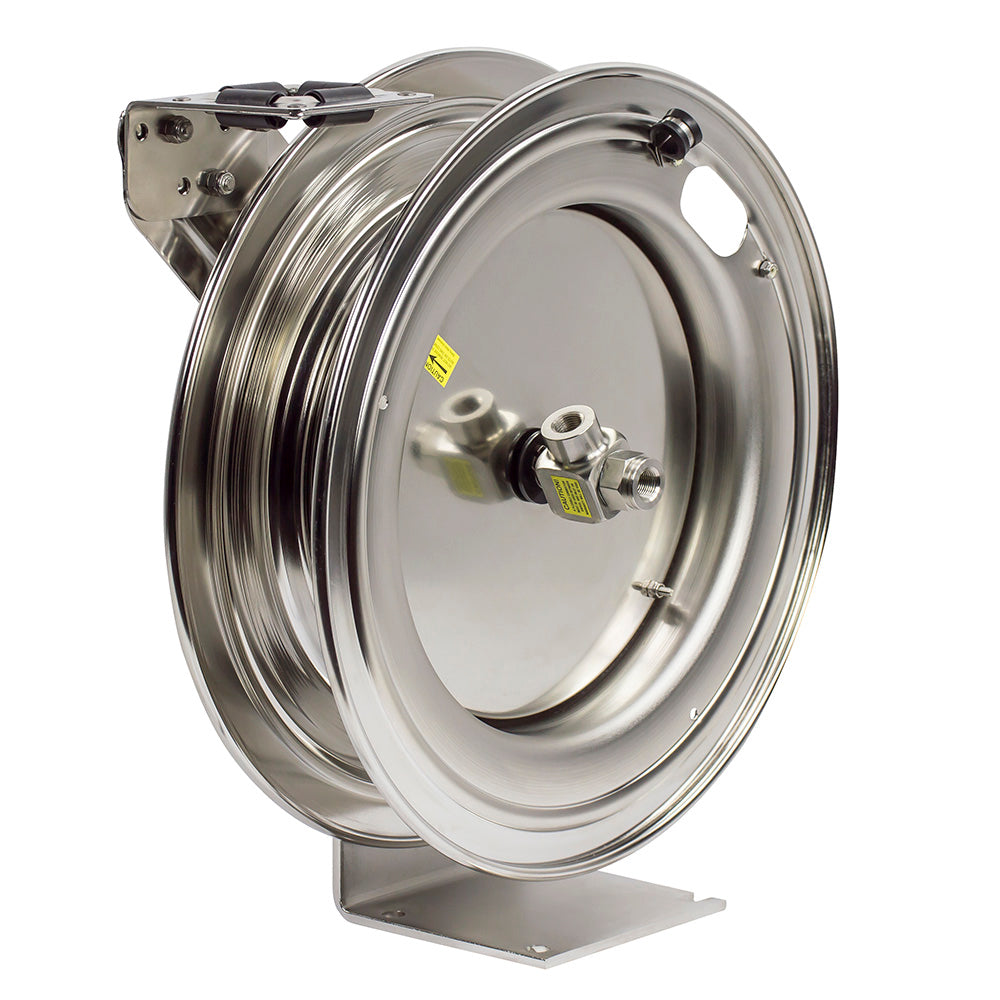

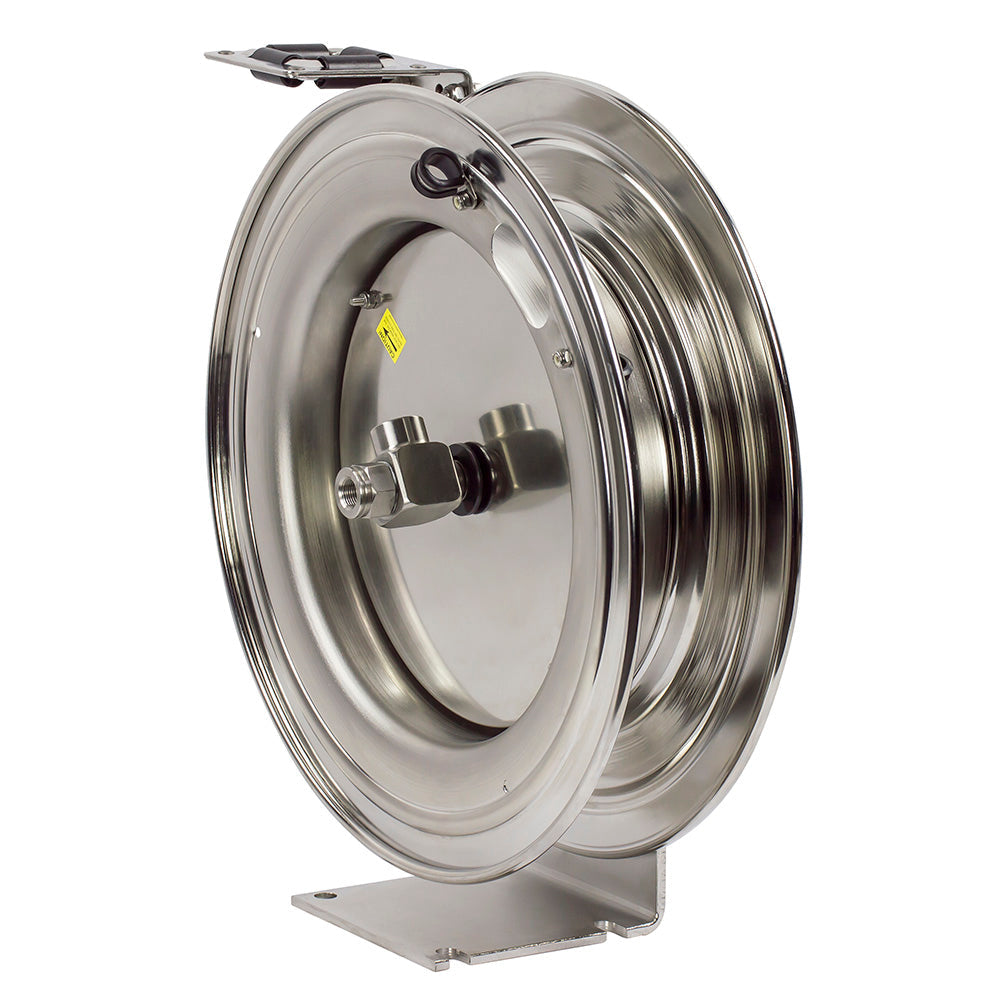

Model P-LPL-425-SS: Stainless Steel Spring Rewind Hose Reel: 1/2" I.D., 25' hose capacity, less hose, 300 PSI
FEATURES
- Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- Sturdy single pedestal reel with space saving design facilitates workplace organization.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
- 1" solid steel axle and lubricated precision bearings for smooth rotation.
- SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.
- MULTI-POSITION GUIDE ARM - Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - Sturdy permanently lubricated precision bearings.
| MODEL | P-LPL-425-SS |
| REEL TYPE | Spring Driven |
| I.D | 1/2" |
| O.D | 3/4" |
| LENGTH | 25' |
| HOSE | No |
| MAX PSI | 300 |
| SHIP WEIGHT (LBS) | 39 |
| OVERALL DIMENSIONS (W) (H) (L) | 7" (W) 18.63" (H) 17.13" (L) |
| MOUNTING PATTERN (M) (N) | 4" (M) 5" (N) |
| BASE (X) (Y) | 6" (X) 6" (Y) |
