Coxreels® T-SS Series — SS Series "Stainless Steel" spring driven hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

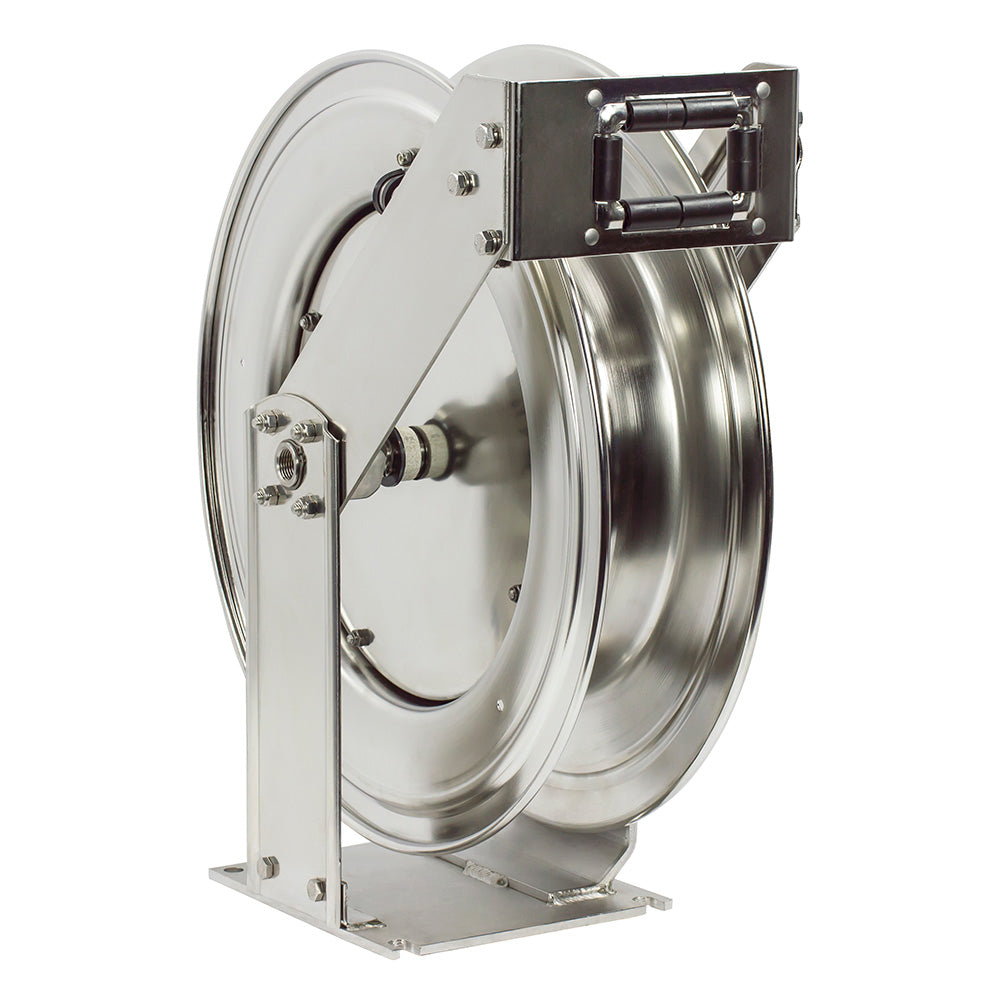

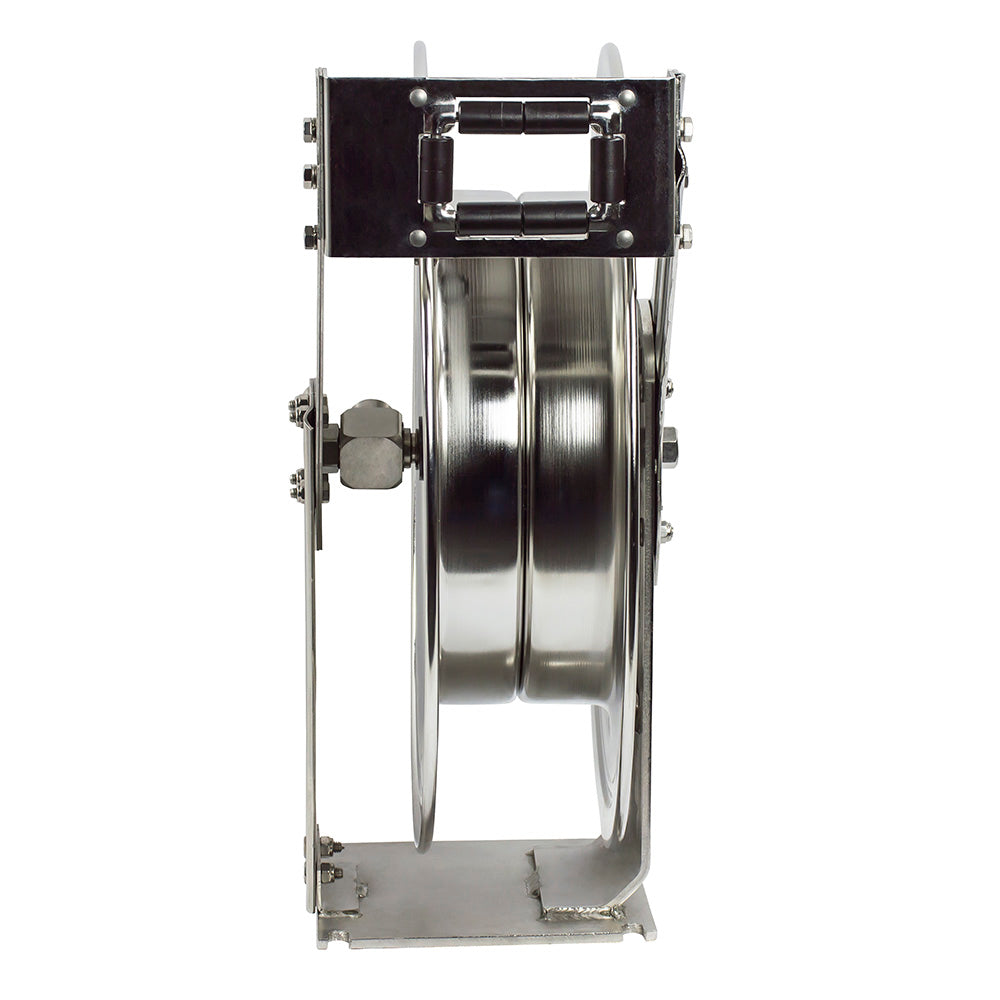

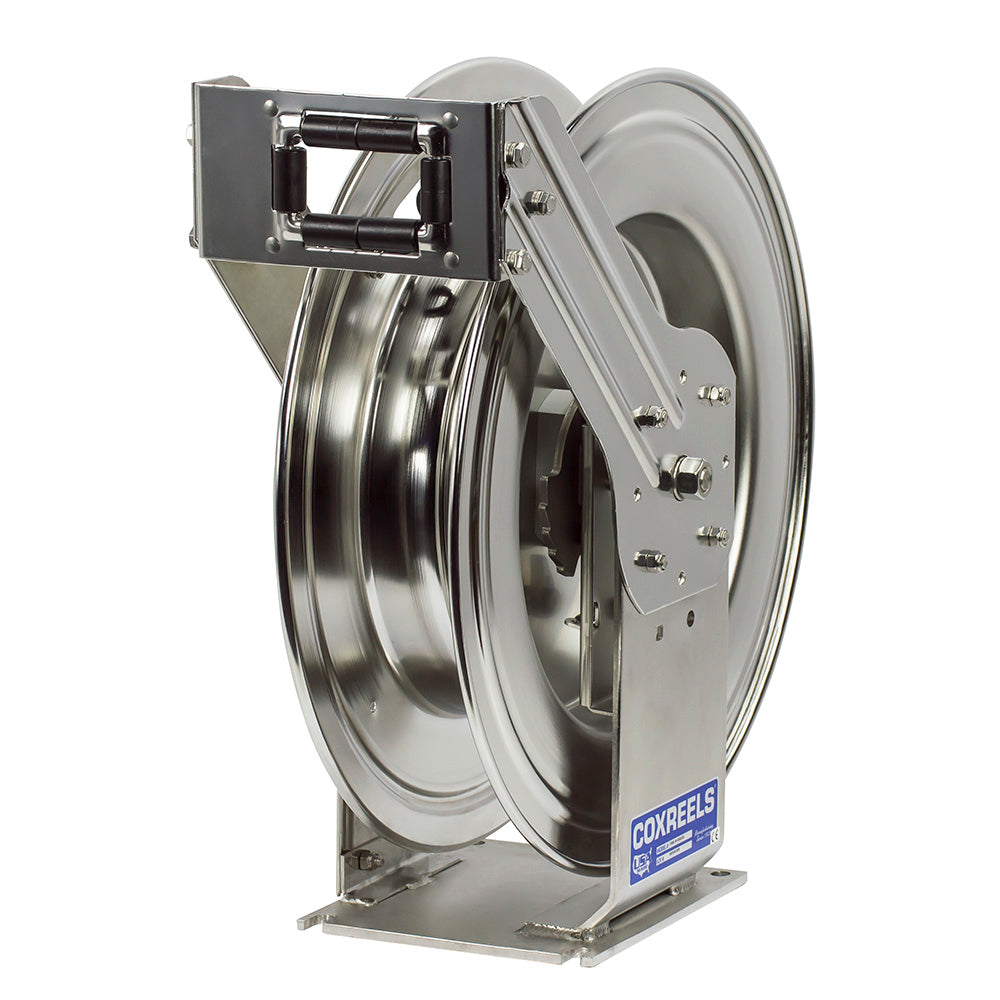

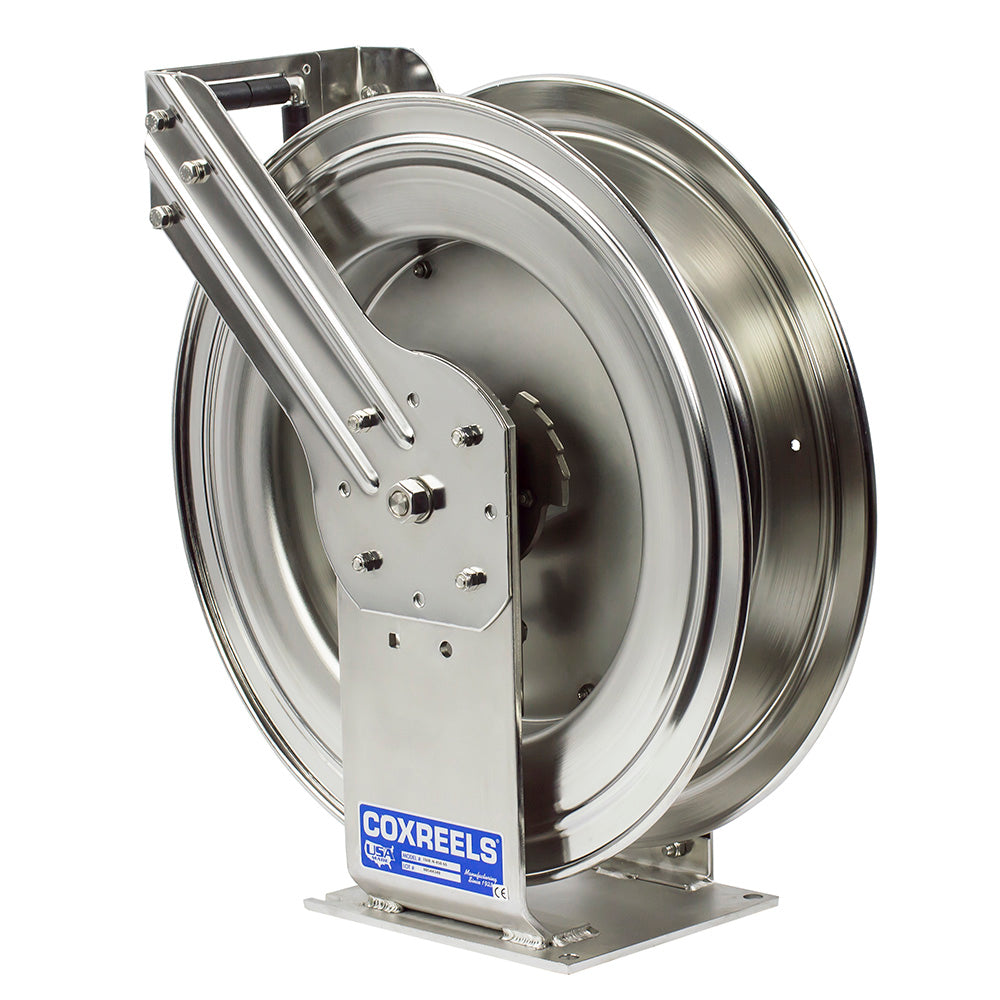

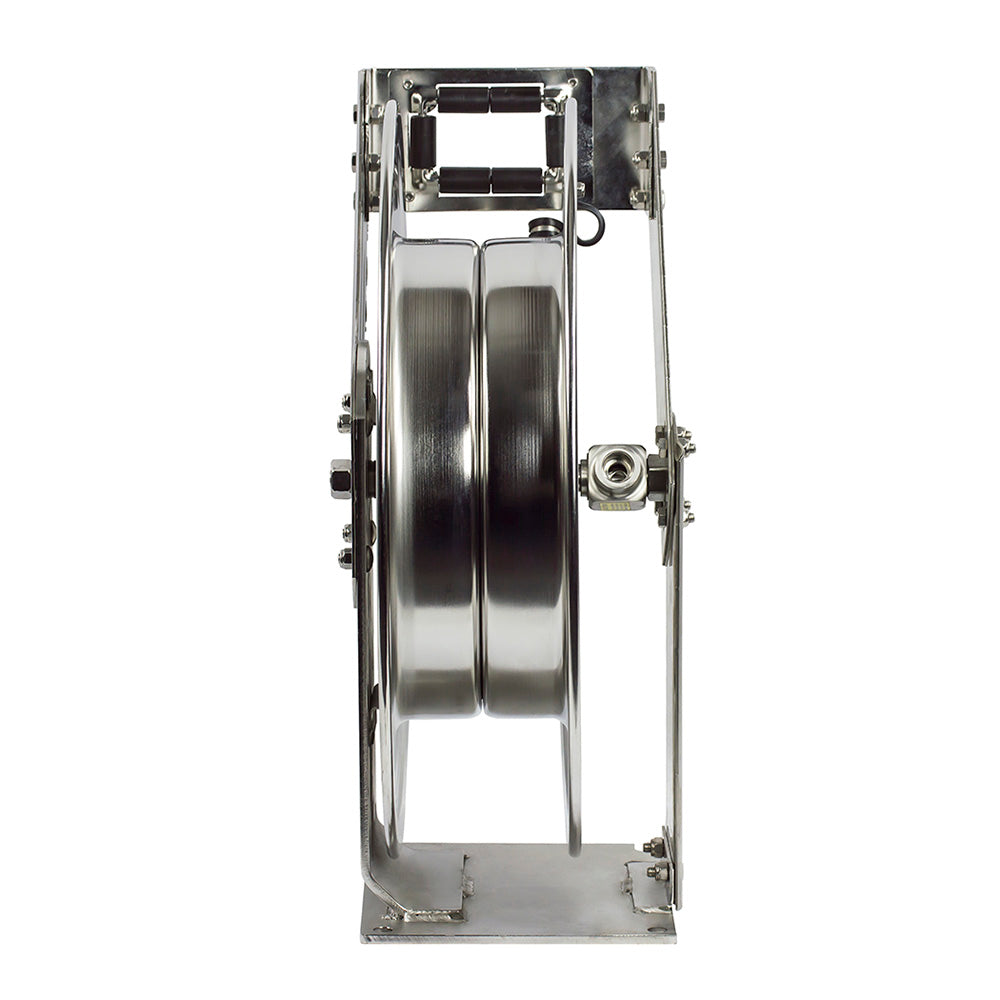

Model TSHL-N-375-SS: Stainless Steel Spring Rewind Hose Reel: 3/8" I.D., 75' hose capacity, less hose, 300 PSI
FEATURES
- Swivel Seals: NITRILE Non-Toxic Food Grade Grease.
- Built for rugged mobile applicationsn.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Stainless Steel rollers on 3/4" & 1" models.
- Solid one-piece, heavy gauge 1/4" steel base & support posts for maximum strength.
- 1" solid steel axle & lubricated precision bearings for smooth rotation.
- Enclosed factory tuned & matched cartridge-style spring motor.
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90º full-flow NPT swivel inlet.
- CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- MULTI-POSITION GUIDE ARM - Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - Sturdy permanently lubricated precision bearings.
| MODEL | TSHL-N-375-SS |
| REEL TYPE | Spring Driven |
| I.D | 3/8" |
| O.D | 5/8" |
| LENGTH | 75' |
| HOSE | No |
| MAX PSI | 300 |
| SHIP WEIGHT (LBS) | 73 |
| OVERALL DIMENSIONS (W) (H) (L) | 9.38" (W) 25.5" (H) 24" (L) |
| MOUNTING PATTERN (M) (N) | 7" (M) 8" (N) |
| BASE (X) (Y) | 8" (X) 9" (Y) |
